Description

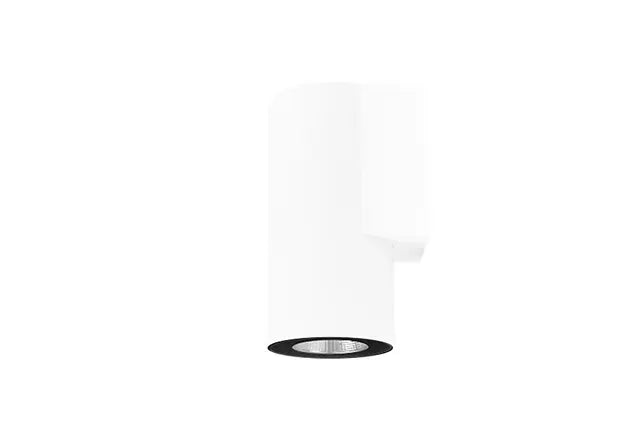

- Surface mounted IP65 rated sleek wall light in a uni-directional light configuration
- Manufactured from an aluminium body and powder coat finish
- Sealed safety glass lens for ingress protection
- Characterised by its black print insert, allowing for seamless integration with contemporary architecture
- CRI 97+ available in 3000K and 4000K CCT options
- Supplied with integral driver
Physical Characteristics
| Trim Colour |
Black| White
|
| Dimensions | ⌀60 X 121 (H) mm |
| Weight | 765 g |
Technical Characteristics*
|
LED Power
|
5.25W |
| LED Type | COB |
| LED Lumen Output* | 875 lm |
| Luminous Flux | 514 lm |
| Efficacy* | 73.43 lm/W |
| Colour Temperature |
3000K| 4000K
|
| Colour Technology | CRI 97+ Standard |
| Colour Deviation | SDCM ≤ 3 |
| Lifetime | 50,000 hours (L80) |
| Beam Angle | N/A |
| System Power | 7W Typical |
| Driver Model | Trend DR-WRD7 (Non-dim) |
| Input | 100-240V AC 50/60 Hz |
| Output | 34V DC 200mA |
| Power Factor | >0.95 |
| Driver | Non-dimmable |
General Characteristics
| Family | Wall |
| Surface | Wall |
| Mounting | Surface Mounted |
| Ingress Protection | IP65 |
