Description

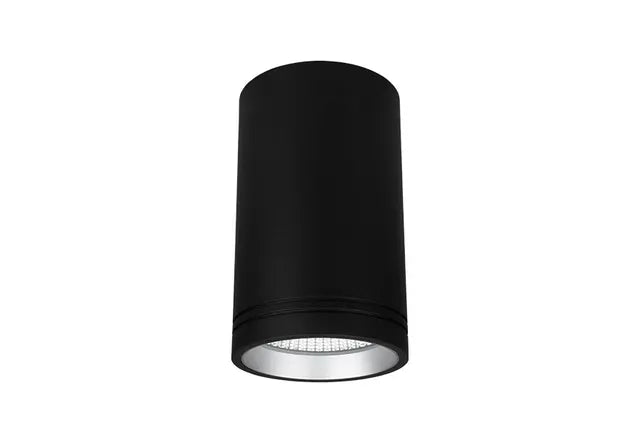

- Surface mounted LED downlight, manufactured with an aluminium body in powder coat finish and sealed face with silicone gasket
- Designed with no visible mounting screws providing a cleaner look with a large integral pin fin heatsink for excellent thermal management
- CRI 90+ available in 3000K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 3000K and 4000K CCT options
- Supplied with an integral driver
Physical Characteristics

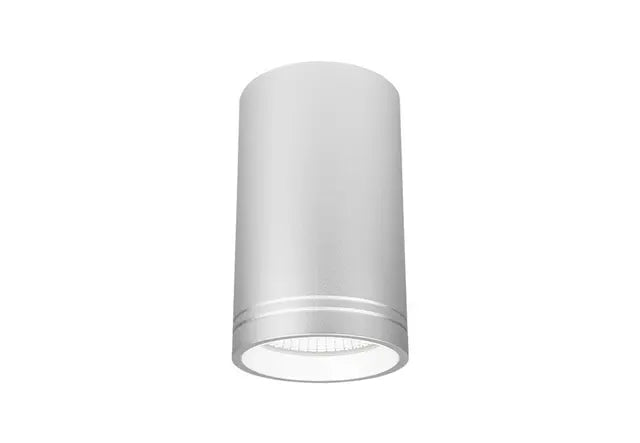

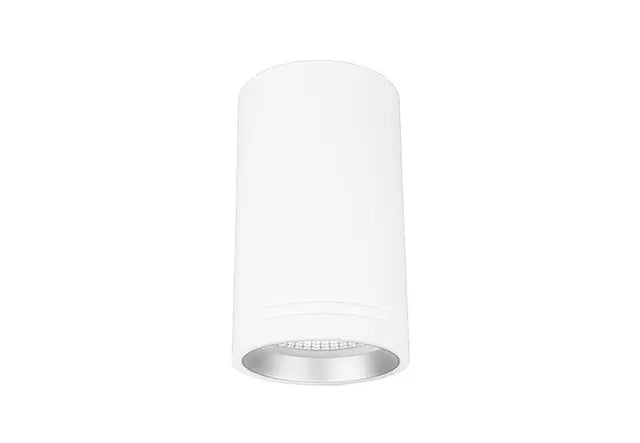

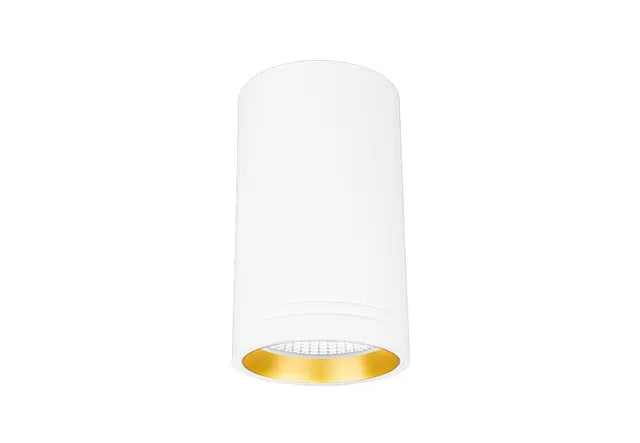

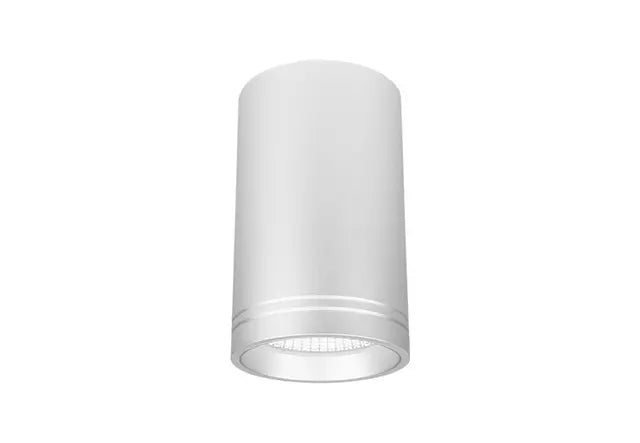

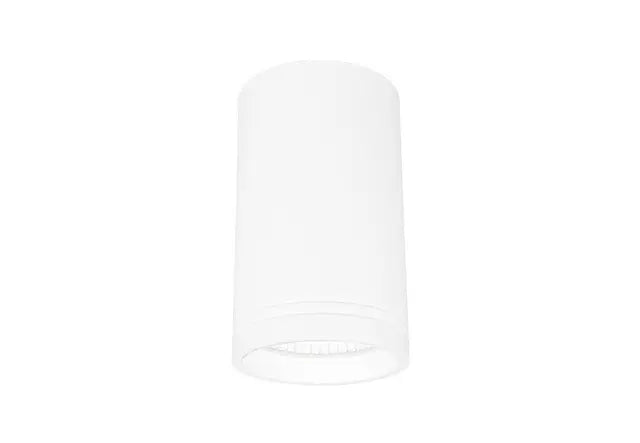

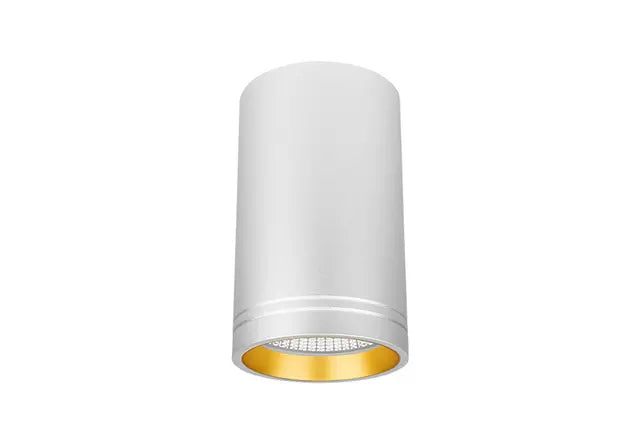

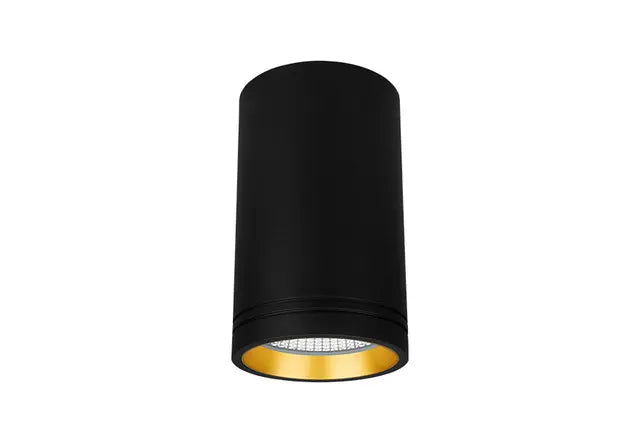

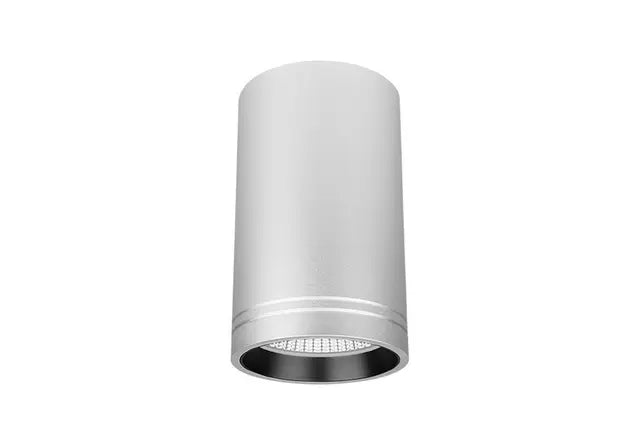

| Trim Colour |
Black| White| Silver
|
| Insert Colour |
Black| White| Silver |Gold
|
| Dimensions |
⌀110 X 180 (H) mm
|
| Weight | 1310 g |
Technical Characteristics*
| LED Power | 25W |
| LED Type | COB |
| LED Lumen Output* | 2955 lm |
| Luminous Flux* | 2230 lm |
| Efficacy* | 83.21 lm/W |
| Colour Temperature |
3000K|4000K
|
| Colour Technology | CRI 90+ Standard|
CRI 93+ VIVID|
CRI 97+ Standard
|
| Colour Deviation | SDCM ≤ 2 |
| Lifetime | 50,000 hours (L80) |
| Beam Angle |
Wide|
Narrow|
Medium
|
| System Power | 26.8W Typical |
| Driver Model | Trend 150080-600 (T/E) |
| Input | 220-240V AC 50/60 Hz |
| Output | 25-42V DC 600mA |
| Power Factor | >0.90 |
| Protection |
OVP,OTP,OCP,SCP,OPP
|
| Driver |
Trailing Edge|
DALI
|
General Characteristics
| Family | Surface |
| Surface | Ceiling |
| Mounting | Surface Mounted |
| Ingress Protection | IP20 |
| DATASHEET |
|
