Description

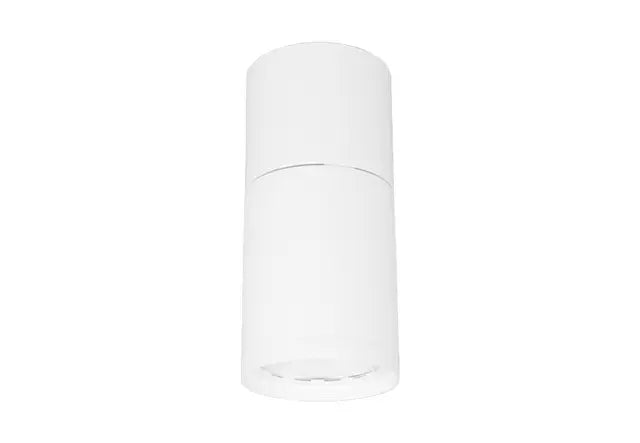

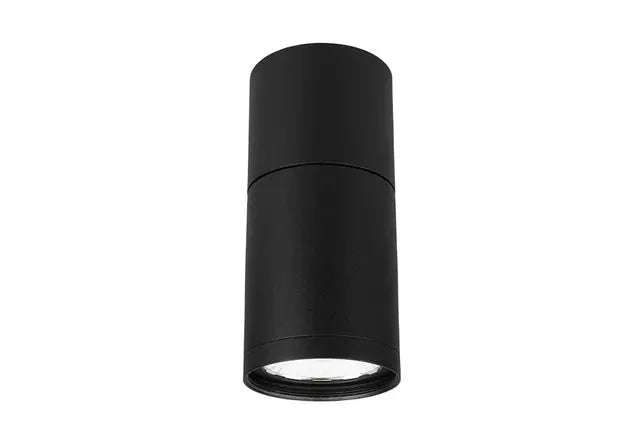

- Surface mounted compact LED downlight, manufactured with an aluminium body and powder coat finish
- Available with a comprehensive range of accessories, catering for a variety of lighting demands
- CRI 90+ available in 3000K and 4000K CCT options
- Supplied with an integral driver
Physical Characteristics
| Trim Colour |
Black| White
|
| Dimensions | ⌀60 X 157 (H) mm |
| Weight | 424 g |
Technical Characteristics*
| LED Power | 10W |
| LED Type | COB |
| LED Lumen Output* | 1450 lm |
| Luminous Flux* | 1047 lm |
| Efficacy* | 89.49 lm/W |
| Colour Temperature |
3000K| 4000K
|
| Colour Technology | CRI 90+ Standard |
| Colour Deviation | SDCM ≤ 2 |
| Lifetime | 50,000 hours (L80) |
| Beam Angle |
Wide| Medium| Narrow
|
| System Power | 11.7W Typical |
| Driver Model | Trend 150417-500 (Non-dim) |
| Input | 220-240V AC 50/60 Hz |
| Output | 25-42V DC 500mA |
| Power Factor | >0.90 |
| Protection |
OVP,OTP,OCP,SCP,OPP
|
| Driver |
Non-dimmable| 1-10V
|
| Accessories | Barn Door|
Cross Louvre|
Eye Snoot|
Honeycomb Lens|
Snoot|
Wallwash Ring
|
General Characteristics
| Family | Surface |
| Surface | Ceiling |
| Mounting | Surface Mounted |
| Ingress Protection | IP20 |
| DATASHEET |
|
