Description

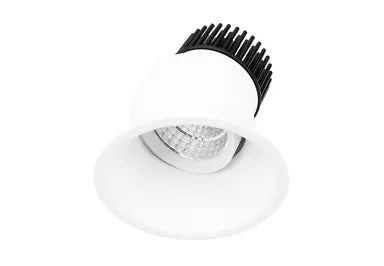

- Recessed adjustable LED downlight, manufactured with an aluminium body and powder coat finish
- Deep recessed trim design provides excellent glare control, improving visual comfort
- Covering 92 mm cutout size, an ideal replacement for existing downlights
- CRI 90+ available in 3000K and 4000K CCT options
- Supplied with a remote driver
Physical Characteristics
|
Trim Colour |
White|Black |
|
Dimensions |
⌀100 X 102 (H) mm |
|
Weight |
220 g |
|
Tilt Angle |
20° |
|
Cutout |
Circle - 92 mm |
|
Spring Height |
50 mm |
General Characteristics
|
Family |
Resiled |
|
Surface |
Ceiling |
|
Mounting |
Recessed |
|
Insulation Contact |
CA90 |
|
Ingress Protection |
IP20 |
Technical Characteristics*
|
LED Power |
8.5W |
|
LED Type |
COB |
|
LED Lumen Output* |
1050 lm |
|
Luminous Flux* |
891 lm |
|
Efficacy* |
82.50 lm/W |
|
Colour Temperature |
3000K|4000K |
|
Colour Technology |
CRI 90+ Standard |
|
Colour Deviation |
SDCM ≤ 3 |
|
Lifetime |
50,000 hours (L80) |
|
Beam Angle |
Wide |
|
System Power |
10.8W Typical |
|
Driver Model |
Trend 150208-250 (L&T) |
|
Input |
180-265V AC 50/60 Hz |
|
Output |
30-40V DC 250mA |
|
Power Factor |
>0.93 |
|
Protection |
OVP,OTP,OCP,SCP,OPP |
|
Driver |
Leading & Trailing Edge |
