Description

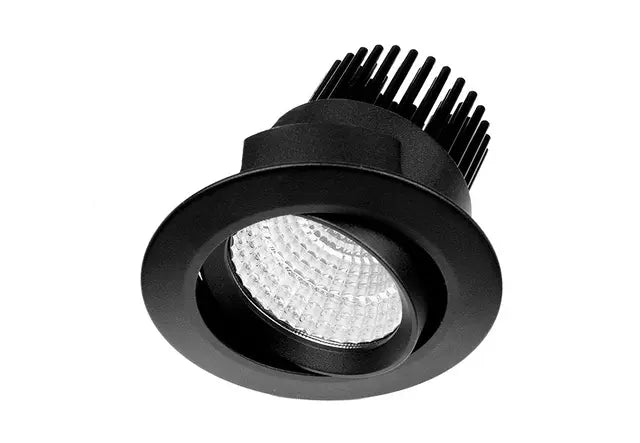

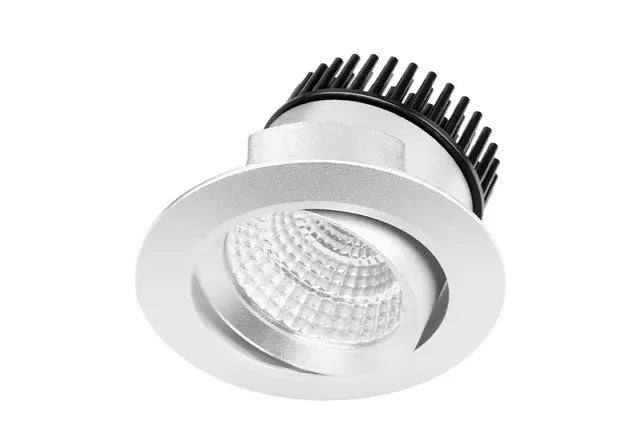

- Recessed adjustable LED downlight, manufactured with an aluminium body and powder coat finish
- Covering 76 mm cutout size, an ideal replacement for existing downlights
- CRI 90+ available in 3000K and 4000K CCT options
- Supplied with a remote driver
Physical Characteristics
| Trim Colour |
White|Black|Silver
|
| Dimensions | ⌀90 X 75 (H) mm |
| Weight | 215 g |
| Tilt Angle | 15° |
| Cutout | Circle - 76 mm |
| Spring Height | 20 mm |
Technical Characteristics*
| LED Power | 8W |
| LED Type | COB |
| LED Lumen Output* | 1050 lm |
| Luminous Flux* | 955 lm |
| Efficacy* | 88.43 lm/W |
| Colour Temperature |
3000K|4000K
|
| Colour Technology | CRI 90+ Standard |
| Colour Deviation | SDCM ≤ 3 |
| Lifetime | 50,000 hours (L70) |
| Beam Angle | Wide |
| System Power | 10.8W Typical |
| Driver Model | Trend 150208-250 (L&T) |
| Input | 180-265V AC 50/60 Hz |
| Output | 30-40V DC 250mA |
| Power Factor | >0.93 |
| Protection |
OVP,OTP,OCP,SCP,OPP
|
| Driver |
Leading & Trailing Edge| DALI|
1-10V
|
General Characteristics
| Family | Resiled |
| Surface | Ceiling |
| Mounting | Recessed |
| Insulation Contact | IC-4 |
| Ingress Protection | IP20 |
DOWNLOADS
| DATASHEET |  |
|
INSTALLATION GUIDE |
|
