Description

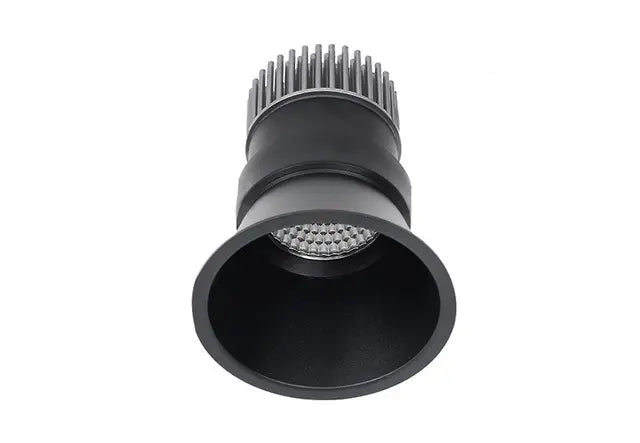

- Deep recessed IP65 rated premium LED downlight known for its thin trim profile and low glare design
- Manufactured with an aluminium body and powder coat finish
- Injection moulded twice vacuum metalised reflector for high reflectivity and uniform beam distribution
- Can be specified with specular dark reflector
- CRI 94+ and CRI 98+ Optisolis available in 3000K and 4000K CCT options
- Supplied with a remote driver
Physical Characteristics
| Trim Colour | White| Black| Silver |
| Dimensions | ⌀102 X 122 (H) mm |
| Weight | 280 g |
| Cutout | Circle - 92 mm |
| Spring Height | 45 mm |
Technical Characteristics*
| LED Power | 10W |
| LED Type | COB |
| LED Lumen Output* | 1350 lm |
| Luminous Flux* | 1147 lm |
| Efficacy* | 96.39 lm/W |
| Colour Temperature |
3000K|4000K
|
| Colour Technology |
CRI 94+ Standard|
CRI 98+ Optisolis
|
| Colour Deviation | SDCM ≤ 2 |
| Lifetime | >60,000 hours (L80 B10) |
| Beam Angle |
Wide| Narrow| Medium
|
| System Power | 11.9W Typical |
| Driver Model | Trend 150218-300 (L&T) Black |
| Input | 180-265V AC 50/60 Hz |
| Output | 30-42V DC 300mA |
| Power Factor | >0.93 |
| Protection |
OVP,OTP,OCP,SCP,OPP
|
| Driver |
Leading & Trailing Edge|
DALI
|
General Characteristics
| Family | Platinum |
| Surface | Ceiling |
| Mounting | Recessed |
| Insulation Contact | CA90 |
| Ingress Protection | IP65 |
