Description

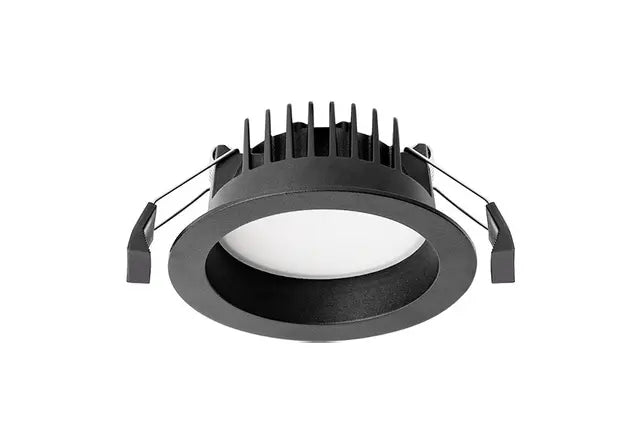

- Recessed SMD LED fixed downlight with a slim design and stepped opal polycarbonate diffuser for uniform lighting distribution
- Aluminium profile provides excellent thermal management for exceptional heat dissipation
- An ideal lighting solution for residential and commercial applications
- Colour temperature can be selected via a switch at the rear of the luminaire, enabling users to switch between 3000K (warm white), 4000K (cool white) and 5700K (daylight) CCT
- Supplied with remote flicker free Leading & Trailing Egde dimmable driver
Physical Characteristics
| Trim Colour |
White| Black
|
| Dimensions | ⌀110 X 52 (H) mm |
| Weight | 260 g |
| Cutout | Circle - 90 - 95 mm |
| Spring Height | 30 mm |
Technical Characteristics
| LED Power | 10W |
| LED Type | SMD |
| LED Lumen Output* | 990 lm |
| Efficacy* | Up to 104 lm/W |
| CCT Technology | Switchable |
| Colour Temperature | 3000K, 4000K, 5700K |
| Colour Technology | CRI 85+ Standard |
| Colour Deviation | SDCM ≤ 3 |
| Lifetime | 50,000 hours (L70) |
| Beam Angle | Wide |
| System Power | 9.5W Typical |
| Driver Model | Trend DR-DTL10 (L&T) |
| Input | 200-240V AC 50Hz |
| Power Factor | >0.95 |
| Protection |
OTP, SCP
|
| Driver | Leading & Trailing Edge |
General Characteristics
| Family |
Trend For Trade, Multiled
|
| Surface | Ceiling |
| Mounting | Recessed |
| Insulation Contact | IC-4 |
| Ingress Protection | IP54 |
| Warranty | 3 Years |
