Description

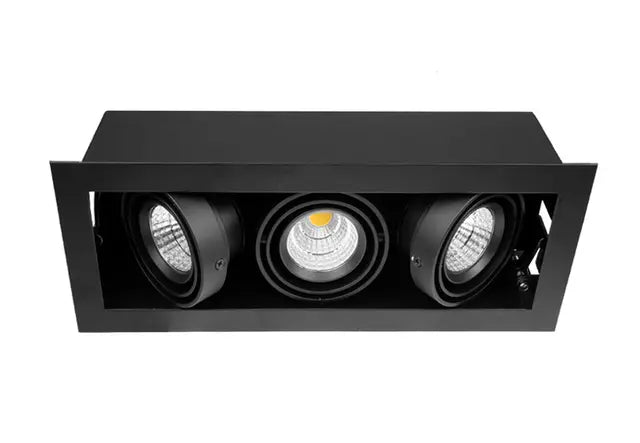

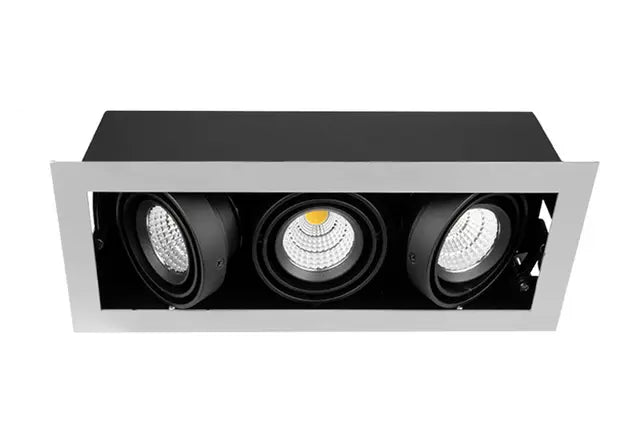

- Triple recessed LED downlight with rectangular trim
- Also available in a single spot (XMA10) or as twin configuration (XMA210)
- Manufactured with an aluminium body and powder coat finish
- Designed to be fully versatile, allowing for changes in the direction and inclination angle of the light up to 35° in 2 directions
- CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 2700K, 3000K and 4000K CCT options
- Supplied with a remote driver
Physical Characteristics
| Trim Colour |
White| Black| Silver
|
| Dimensions | 335 (L) X 130 (W) X 110 (H) mm |
| Weight | 510 g |
| Tilt Angle | 35º x 35° |
| Cutout | Rectangle - 315 x 110 mm |
| Spring Height | 21 mm |
Technical Characteristics*
| LED Power | 3 x 10.5W |
| LED Type | COB |
| LED Lumen Output* | 4350 lm |
| Luminous Flux* | 3426 lm |
| Efficacy* | 97.61 lm/W |
| Colour Temperature |
3000K|
4000K
|
| Colour Technology |
CRI 90+ Standard|
CRI 93+ VIVID|
CRI 97+ Standard
|
| Colour Deviation | SDCM ≤ 3 |
| Lifetime |
50,000 hours (L80)
|
| Beam Angle |
Wide|
Narrow|
Medium
|
| System Power | 35.1W Typical |
| Driver Model | Trend 150218-300 (L&T) x3 |
| Input | 180-265V AC 50/60 Hz |
| Output | 30-40V DC 300mA x 3 |
| Power Factor | >0.93 |
| Protection | OVP,OTP,OCP,SCP,OPP |
| Driver |
Leading & Trailing Edge|
DALI|
1-10V
|
General Characteristics
| Family | Miniled |
| Surface | Ceiling |
| Mounting | Recessed |
| Insulation Contact | Non-IC |
| Ingress Protection | IP20 |
DOWNLOADS
| DATASHEET |
|
