Description

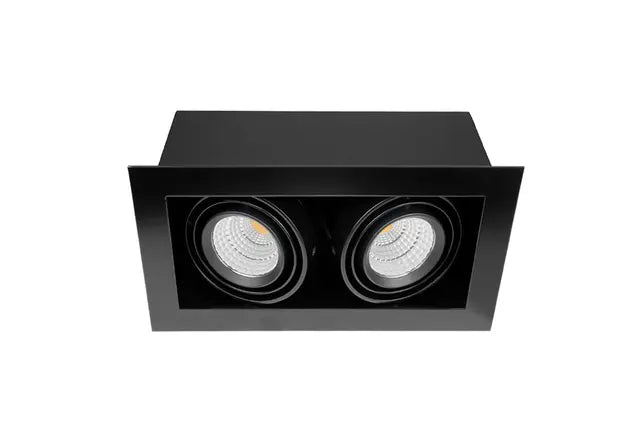

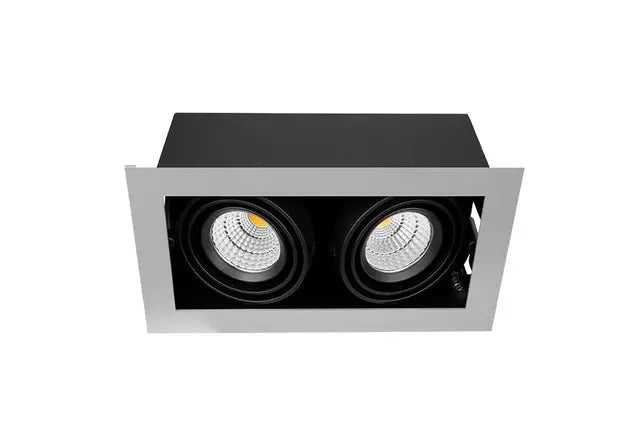

- Twin recessed LED downlight with rectangular trim
- Also available in a single spot (XMA10) or as a row of three (XMA310)
- Manufactured with an aluminium body and powder coat finish
- Designed to be fully versatile, allowing for changes in the direction and inclination angle of the light up to 35° in 2 directions
- CRI 90+ available in 3000K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 3000K and 4000K CCT options
- Supplied with a remote driver
Physical Characteristics
| Trim Colour | White| Black| Silver |
| Dimensions | 235 (L) X 130 (W) X 110 (H) mm |
| Weight | 450 g |
| Tilt Angle | 35º x 35° |
| Cutout | Rectangle - 215 x 110 mm |
| Spring Height | 21 mm |
Technical Characteristics*
| LED Power | 2 x 10.5W |
| LED Type | COB |
| LED Lumen Output* | 2900 lm |
|
Luminous Flux*
|
2284 lm |
| Efficacy* | 97.61 lm/W |
| Colour Temperature |
3000K| 4000K
|
| Colour Technology |
CRI 90+ Standard|
CRI 93+ VIVID|
CRI 97+ Standard
|
| Colour Deviation | SDCM ≤ 3 |
| Lifetime | 50,000 hours (L80) |
| Beam Angle |
Wide| Narrow| Medium
|
| System Power | 23.4W Typical |
| Driver Model | Trend 150218-300 (L&T) x2 |
| Input | 180-265V AC 50/60 Hz |
| Output | 30-42V DC 300mA x 2 |
| Power Factor | >0.93 |
| Protection |
OVP,OTP,OCP,SCP,OPP
|
| Driver |
Leading & Trailing Edge|
DALI|
1-10V
|
General Characteristics
| Family | Miniled |
| Surface | Ceiling |
| Mounting | Recessed |
| Insulation Contact | Non-IC |
| Ingress Protection | IP20 |
