Description

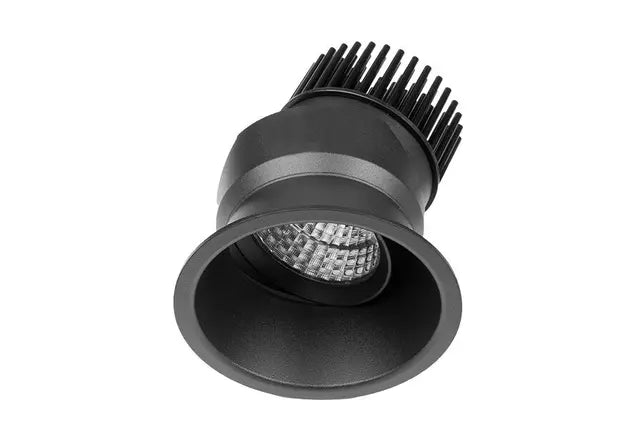

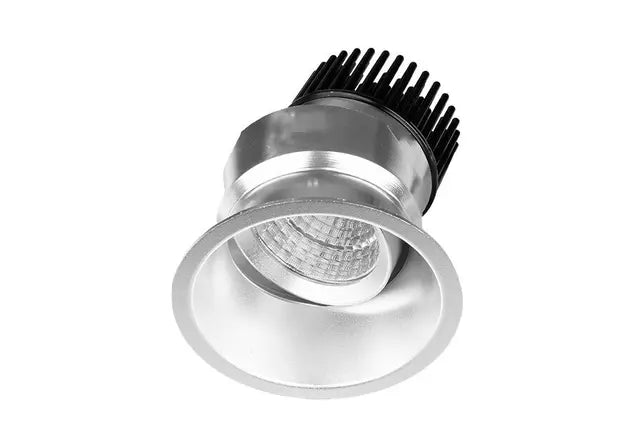

- Recessed adjustable LED downlight with thin trim profile coupled with a low glare conical housing
- Manufactured with an aluminium body and powder coat finish
- CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 2700K, 3000K and 4000K CCT options
- Supplied with a remote driver
Physical Characteristics
| Trim Colour |
White| Black| Silver
|
| Dimensions | ⌀90 X 104 (H) mm |
| Weight | 215 g |
| Tilt Angle | 20° |
| Cutout | Circle - 78 mm |
| Spring Height | 45 mm |
Technical Characteristics*
| LED Power | 10W |
| LED Type | COB |
| LED Lumen Output* | 1450 lm |
| Luminous Flux* | 973 lm |
| Efficacy* | 83.16 lm/W |
| Colour Temperature |
3000K| 4000K
|
| Colour Technology |
CRI 90+ Standard|
CRI 93+ VIVID|
CRI 97+ Standard
|
| Colour Deviation | SDCM ≤ 3 |
| Lifetime | 50,000 hours (L80) |
| Beam Angle |
Medium
|
| System Power | 11.7W Typical |
| Driver Model | Trend 150218-300 (L&T) |
| Input | 180-265V AC 50/60 Hz |
| Output | 30-42V DC 300mA |
| Power Factor | >0.93 |
| Protection |
OVP,OTP,OCP,SCP,OPP
|
| Driver |
Leading & Trailing Edge|
DALI|
1-10V
|
..
General Characteristics
| Family | Miniled |
| Surface | Ceiling |
| Mounting | Recessed |
| Insulation Contact | CA90 |
| Ingress Protection | IP20 |
