Description

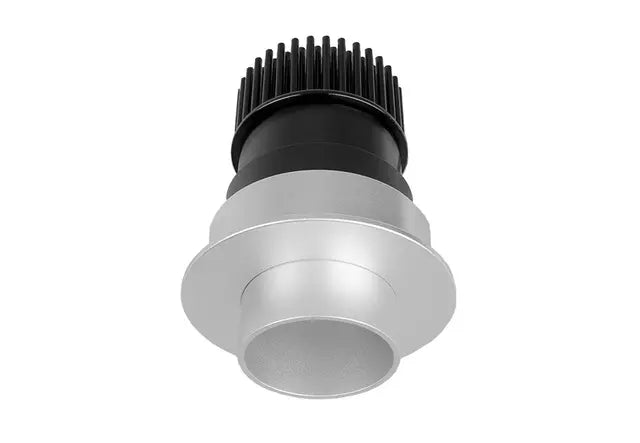

- Recessed low glare LED downlight with pinhole aperture, ideal for accent lighting and highlighting points of interest
- Featured with removable black baffle insert that allows for tighter beam spread coverage
- Ultimate choice for areas where controlled lighting is needed
- Manufactured with an aluminium body and powder coat finish
- CRI 90+ available in 3000K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 3000K and 4000K CCT options
- Supplied with a remote driver
Physical Characteristics
| Trim Colour |
White| Black| Silver
|
| Dimensions | ⌀85 X 116 (H) mm |
| Weight | 280 g |
| Cutout | Circle - 76 mm |
| Spring Height | 16 mm |
Technical Characteristics*
| LED Power |
10W |
| LED Type | COB |
| LED Lumen Output* | 1450 lm |
| Luminous Flux* | 553 lm |
| Efficacy* | 47.26 lm/W |
| Colour Temperature |
3000K| 4000K
|
| Colour Technology |
CRI 90+ Standard|
CRI 93+ VIVID|
CRI 97+ Standard
|
| Colour Deviation | SDCM ≤ 3 |
| Lifetime | 50,000 hours (L80) |
| Beam Angle | Narrow |
| System Power | 11.7W Typical |
| Driver Model | Trend 150218-300 (L&T) |
| Input | 180-265V AC 50/60 Hz |
| Output | 30-42V DC 300mA |
| Power Factor | >0.93 |
| Protection |
OVP,OTP,OCP,SCP,OPP
|
| Driver |
Leading & Trailing Edge|
DALI|
1-10V
|
General Characteristics
| Family | Miniled |
| Surface | Ceiling |
| Mounting | Recessed |
| Insulation Contact | CA90 |
| Ingress Protection | IP20 |
