Description

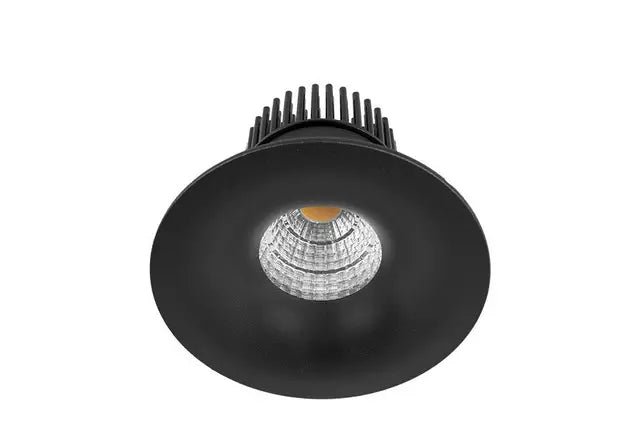

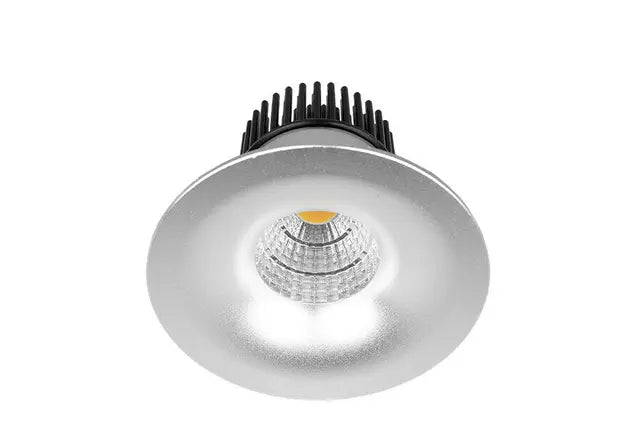

- Recessed LED downlight, designed to visually integrate into the ceiling while providing low glare and high lumen output
- Manufactured with an aluminium body and powder coat finish
- CRI 90+ available in 3000K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 3000K and 4000K CCT options
- Supplied with a remote driver
Physical Characteristics
| Trim Colour |
White| Black| Silver
|
| Dimensions | ⌀112 X 87 (H) mm |
| Weight | 250 g |
| Cutout | Circle - 76 - 92 mm |
| Spring Height | 30 mm |
Technical Characteristics*
| LED Power | 10W |
| LED Type | COB |
| LED Lumen Output* | 1450 lm |
| Luminous Flux* | 1171 lm |
| Efficacy* | 100.09 lm/W |
| Colour Temperature |
3000K| 4000K
|
| Colour Technology |
CRI 90+ Standard|
CRI 93+ VIVID|
CRI 97+ Standard
|
| Colour Deviation | SDCM ≤ 3 |
| Lifetime |
50,000 hours (L80)
|
| Beam Angle |
Wide
|
| System Power | 11.7W Typical |
| Driver Model | Trend 150218-300 (L&T) |
| Input | 180-265V AC 50/60 Hz |
| Output | 30-42V DC 300mA |
| Power Factor | >0.93 |
| Protection |
OVP,OTP,OCP,SCP,OPP
|
| Driver |
Leading & Trailing Edge|
DALI|
1-10V
|
General Characteristics
| Family | Miniled |
| Surface | Ceiling |
| Mounting | Recessed |
| Insulation Contact | CA90 |
| Ingress Protection | IP44 |
