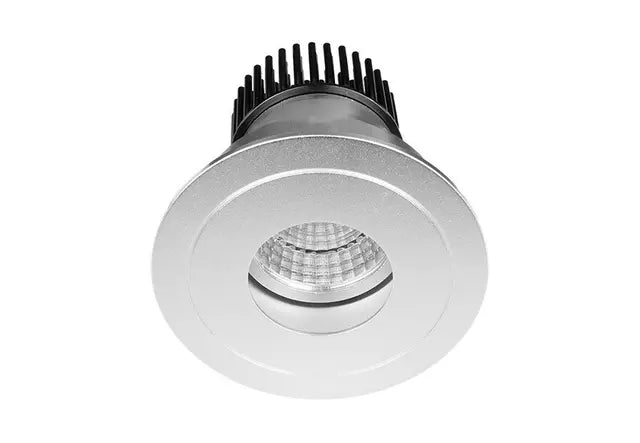

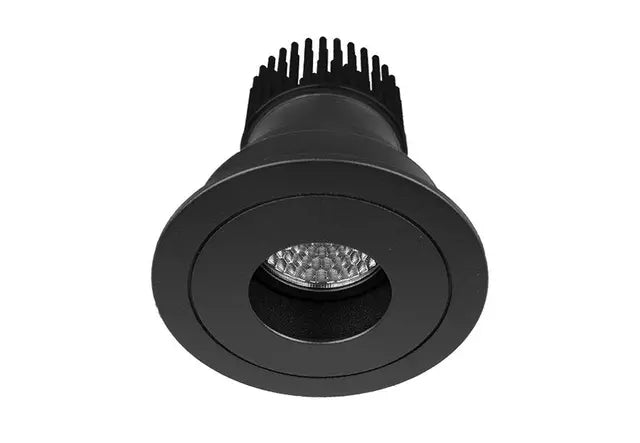

Trend MINILED XDH10 LED Downlights 3000K 4000K White/Black/Silver 10W 180-265V IP20 - XDH103, XDH104

• Recessed low glare LED downlight with pinhole aperture, ideal for accent lighting and highlighting points of interest
• Manufactured with an aluminium body and powder coat finish
• CRI 90+ available in 3000K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 3000K and 4000K CCT options
• Supplied with a remote driver

Physical Characteristics

LED Power	10W
LED Type	COB
LED Lumen Output*	1450 lm
Luminous Flux*	634 lm
Efficacy*	54.19 lm/W
Colour Temperature	3000K| 4000K
Colour Technology	CRI 90+ Standard| CRI 93+ VIVID| CRI 97+ Standard
Colour Deviation	SDCM ≤ 3
Lifetime	50,000 hours (L80)
Beam Angle	Narrow
System Power	11.7W Typical
Driver Model	Trend 150218-300 (L&T)
Input	180-265V AC 50/60 Hz
Output	30-42V DC 300mA
Power Factor	>0.93
Protection	OVP,OTP,OCP,SCP,OPP
Driver	Leading & Trailing Edge| DALI| 1-10V

General Characteristics

Family	Miniled
Surface	Ceiling
Mounting	Recessed
Insulation Contact	CA90
Ingress Protection	IP20
