Description

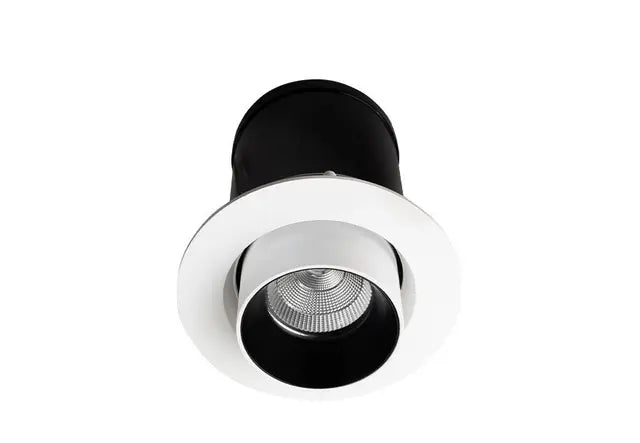

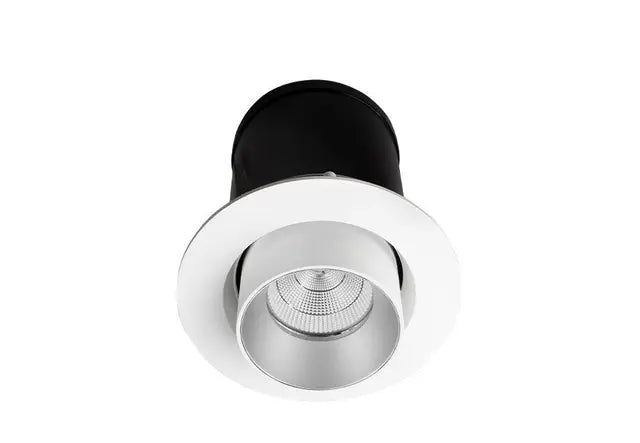

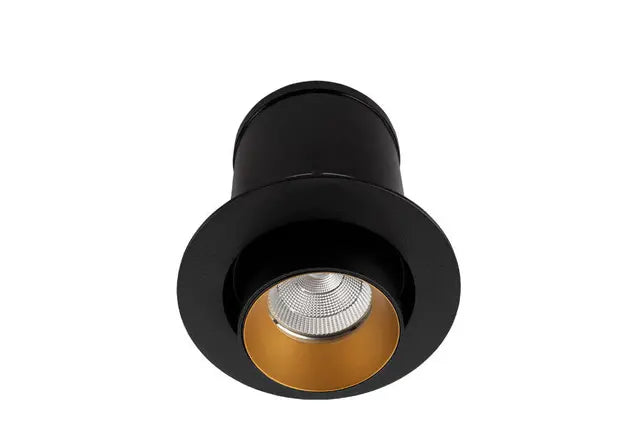

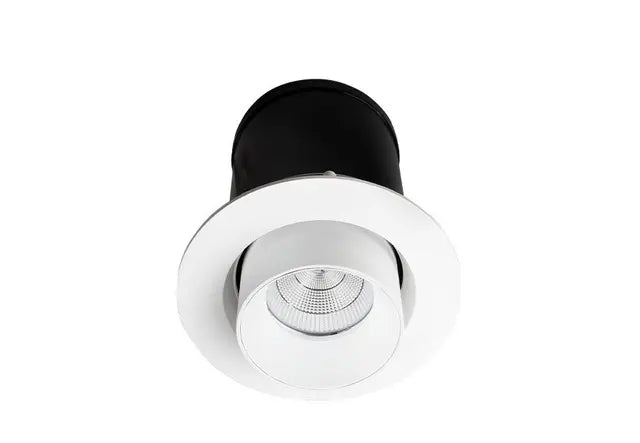

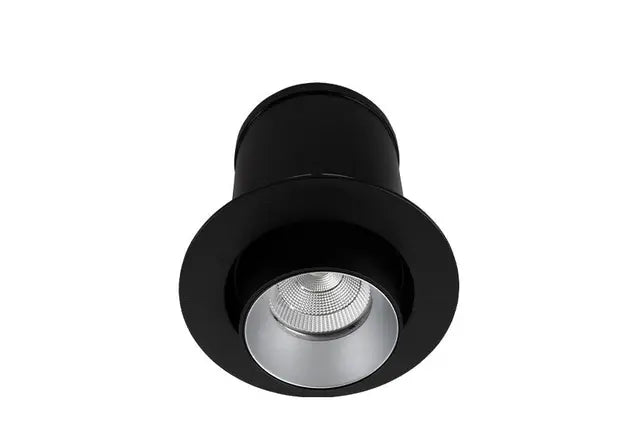

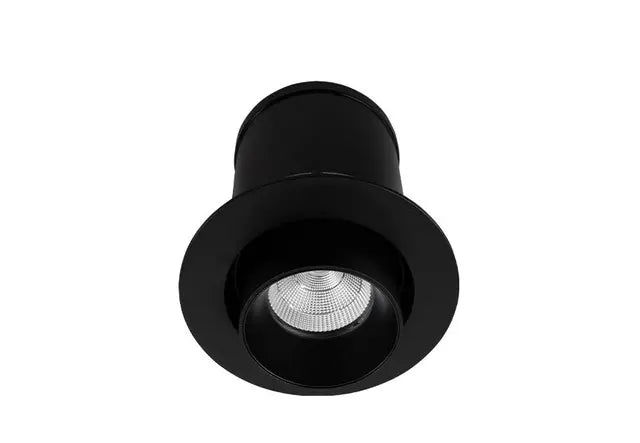

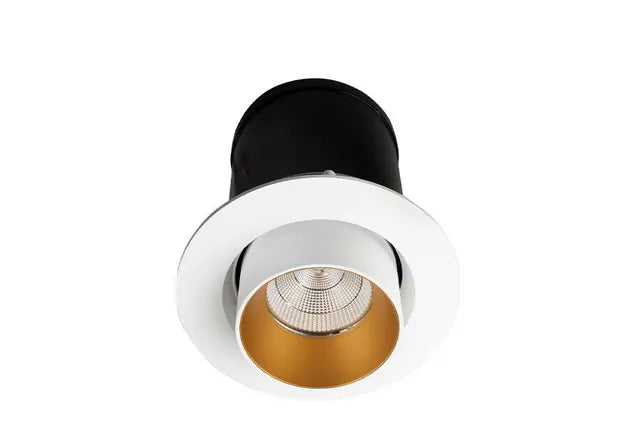

- Recessed adjustable LED downlight with pull-out gimble design in compact size
- Featured with 355° rotation and 90° tilting capabilities, allowing for directional adjustment in a variety of lighting applications
- Configurable with optional coloured inserts, enabling seamless integration with any design aesthetic
- CRI 90+ available in 3000K and 4000K CCT options
- Supplied with a remote driver
Note: You can change the insert colour of this downlight. Insert colour options are:
- Black
- White
- Silver
- Gold
When you choose the trim colour:
- Black Trim automatically comes with Black insert.
- White Trim automatically comes with White insert.
Please call us on (02) 9517 2701 if you wanted to change.
Physical Characteristics
| Trim Colour |
White| Black
|
| Insert Colour |
White| Black| Silver| Gold
|
| Dimensions | ⌀107 X 117 (H) mm |
| Weight | 550 g |
| Tilt Angle | 90° |
| Rotation | 355° |
| Cutout | Circle - 89 mm |
| Spring Height | 42 mm |
Technical Characteristics*
| LED Power | 10W |
| LED Type | COB |
| LED Lumen Output* | 1778 lm |
| Luminous Flux* | 768 lm |
| Efficacy | 65.08 lm/W |
| Colour Temperature |
3000K|
4000K
|
| Colour Technology | CRI 90+ Standard |
| Colour Deviation | SDCM ≤ 3 |
| Lifetime | 50,000 hours (L80) |
| Beam Angle | Medium |
| System Power | 11.8W Typical |
| Driver Model | Trend 150015-500 (L&T) |
| Input | 180-265V AC 50/60 Hz |
| Output | 16-20V DC 500mA |
| Power Factor | >0.90 |
| Protection |
OVP,OTP,OCP,SCP,OPP
|
| Driver |
Leading & Trailing Edge|
DALI
|
General Characteristics
| Family | Midiled |
| Surface | Ceiling |
| Mounting | Recessed |
| Insulation Contact | Non-IC |
| Ingress Protection | IP20 |
DOWNLOADS
| DATASHEET |
|
