Description

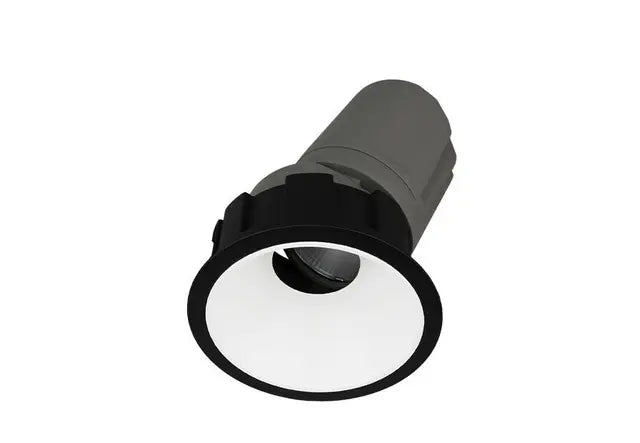

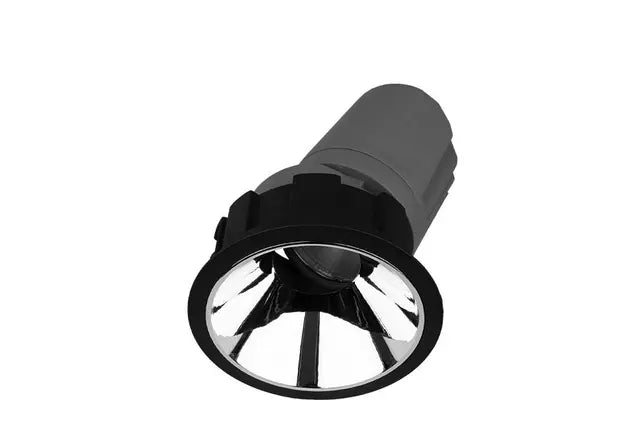

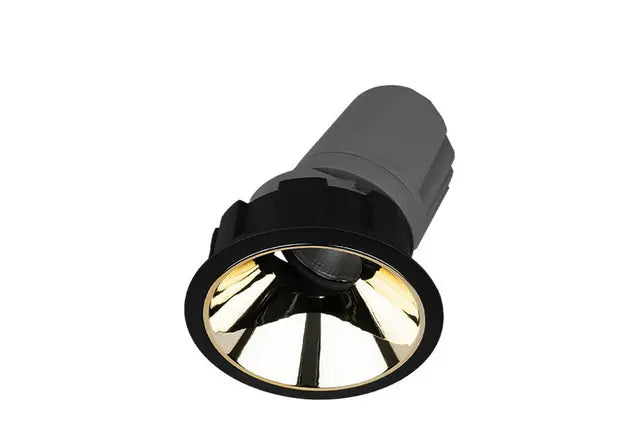

- Recessed adjustable LED downlight with configurable inserts, providing versatility in lighting and aesthetic design
- Featured with 355° rotation and 45° tilting capabilities, allowing for directional adjustment in a variety of lighting applications
- CRI 90+ available in 3000K and 4000K CCT options
- Supplied with a remote driver
Physical Characteristics
| Trim Colour | Black |
| Insert Colour |
White| Black| Silver| Gold
|
| Dimensions | ⌀135 X 170 (H) mm |
| Weight | 890 g |
| Tilt Angle | 45° |
| Rotation | 355° |
| Cutout | Circle - 122 mm |
| Spring Height | 24 mm |
Technical Characteristics*
| LED Power | 18W |
| LED Type | COB |
| LED Lumen Output* | 2266 lm |
| Luminous Flux* | 1248 lm |
| Efficacy* | 62.40 lm/W |
| Colour Temperature |
3000K| 4000K
|
| Colour Temperature | CRI 90+ Standard |
| Colour Deviation | SDCM ≤ 2 |
| Lifetime | 50,000 hours (L80) |
| Beam Angle | Medium |
| System Power | 20W Typical |
| Driver Model | Trend 150016-420 (L&T) |
| Input | 180-265V AC 50/60 Hz |
| Output | 30-40V DC 420mA |
| Power Factor | >0.90 |
| Protection |
OVP,OTP,OCP,SCP,OPP
|
| Driver |
Leading & Trailing Edge|
DALI|
1-10V
|
General Characteristics
| Family | Midiled |
| Surface | Ceiling |
| Mounting | Recessed |
| Insulation Contact | Non-IC |
| Ingress Protection | IP20 |
| DATASHEET |
|
