Description

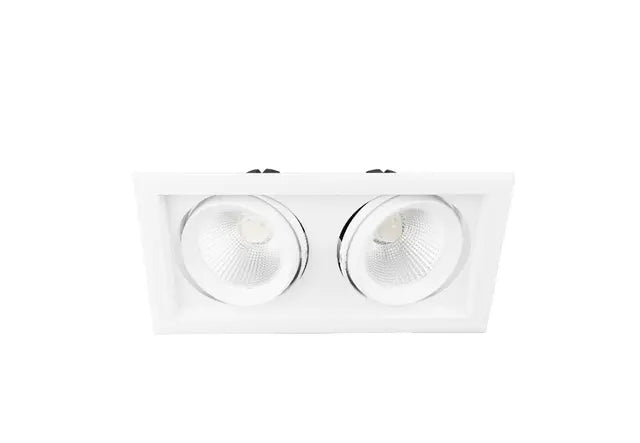

- Twin recessed adjustable LED downlight in rectangular housing
- Also available in a single spot (XMC125) or as a row of three (XMC325)
- CRI 90+ available in 3000K and 4000K CCT options
- Anodised black heatsink for effective thermal management ensuring high output and long lifespan
- Supplied with a remote driver
Physical Characteristics
| Trim Colour |
White| Black
|
| Dimensions | 330 (L) X 175 (W) X 110 (H) mm |
| Weight | 1850 g |
| Tilt Angle | 35º x 35° |
| Cutout | Rectangle - 310 x 160 mm |
| Spring Height | 35 mm |
Technical Characteristics*
| LED Power | 2 x 25W |
| LED Type |
COB
|
| LED Lumen Output* | 5910 lm |
| Luminous Flux* | 5000 lm |
| Efficacy* | 94.70 lm/W |
| Colour Temperature |
3000K| 4000K
|
| Colour Technology | CRI 90+ Standard |
| Colour Deviation | SDCM ≤ 3 |
| Lifetime | 50,000 hours (L80) |
| Beam Angle | Wide |
| System Power | 52.8W Typical |
| Driver Model | Trend 150020-700 (Non-dim) x2 |
| Input | 180-265V AC 50/60 Hz |
| Output | 30-40V DC 700mA |
| Power Factor | >0.90 |
| Protection |
OVP,OTP,OCP,SCP,OPP
|
| Driver |
Non-dimmable|
Leading & Trailing Edge|
DALI
|
General Characteristics
| Family | Midiled |
| Surface | Ceiling |
| Mounting | Recessed |
| Insulation Contact | Non-IC |
| Ingress Protection | IP20 |
DOWNLOADS
| DATASHEET |
|
