Description

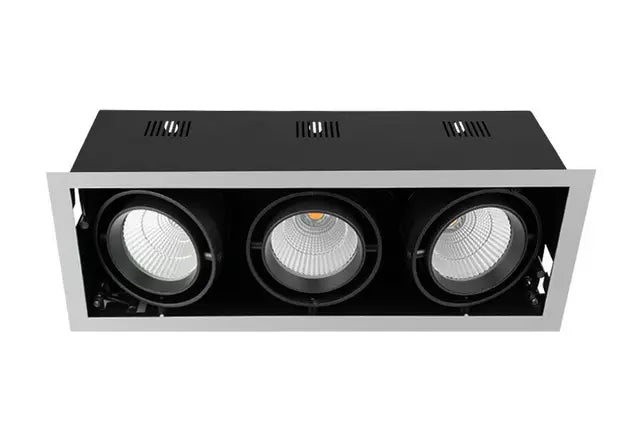

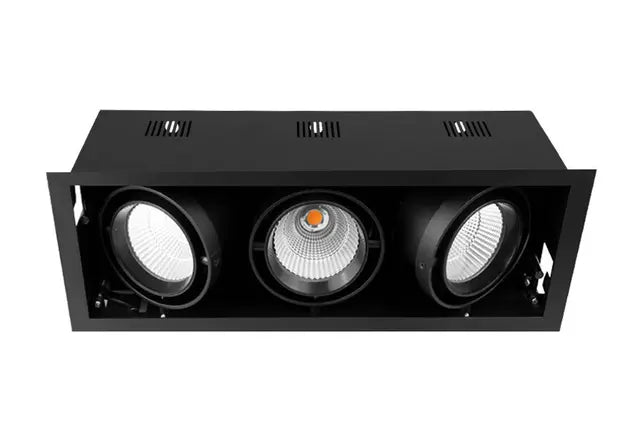

- Triple recessed adjustable LED downlight in rectangular housing
- Also available in a single spot (XMB125) or as a twin configuration (XMB225)
- Anodised black heatsink for optimum thermal management, ensuring high output and long lifespan
- CRI 90+ available in 3000K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 3000K and 4000K CCT options
- Supplied with a remote driver
Physical Characteristics
| Trim Colour |
White| Black| Silver
|
| Dimensions | 495 (L) X 190 (W) X 185 (H) mm |
| Weight | 4825 g |
| Tilt Angle | 35º x 35° |
| Cutout | Rectangle - 472 x 165 mm |
| Spring Height | 22 mm |
Technical Characteristics*
| LED Power | 3 x 25W |
| LED Type | COB |
| LED Lumen Output* | 8865 lm |
| Luminous Flux* | 7323 lm |
| Efficacy* | 92.46 lm/W |
| Colour Temperature |
3000K|4000K
|
| Colour Technology |
CRI 90+ Standard|
CRI 93+ VIVID|
CRI 97+ Standard
|
| Colour Deviation | SDCM ≤ 2 |
| Lifetime | 50,000 hours (L80) |
| Beam Angle |
Wide|
Narrow|
Medium
|
| System Power | 79.2W Typical |
| Driver Model | Trend 150020-700 (Non-dim) x3 |
| Input | 180-265V AC 50/60 Hz |
| Output | 30-40V DC 700mA |
| Power Factor | >0.90 |
| Protection | OVP,OTP,OCP,SCP,OPP |
| Driver |
Non-dimmable|
Non-dimmable|
DALI
|
General Characteristics
| Family | Midiled |
| Surface | Ceiling |
| Mounting | Recessed |
| Insulation Contact | Non-IC |
| Ingress Protection | IP20 |
