Description

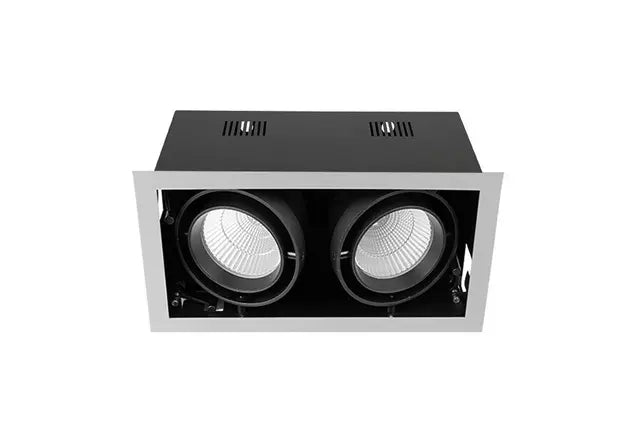

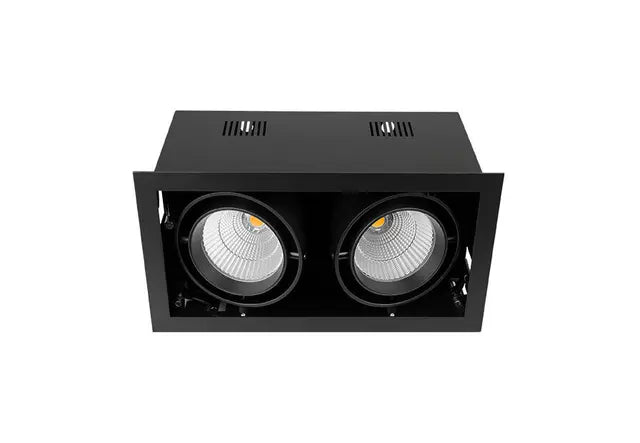

- Twin recessed adjustable LED downlight in rectangular housing
- Also available in a single spot (XMB125) or as a row of three (XMB325)
- Anodised black heatsink for optimum thermal management, ensuring high output and long lifespan
- CRI 90+ available in 3000K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 3000K and 4000K CCT options
- Supplied with a remote driver
Physical Characteristics
| Trim Colour |
White| Black| Silver
|
| Dimensions | 345 (L) X 190 (W) X 185 (H) mm |
| Weight | 3795 g |
| Tilt Angle | 35º x 35° |
| Cutout | Rectangle - 320 x 165 mm |
| Spring Height | 22 mm |
Technical Characteristics*
| LED Power | 2 x 25W |
| LED Type | COB |
| LED Lumen Output* | 5910 lm |
| Luminous Flux* | 4882 lm |
| Efficacy* | 92.46 lm/W |
|
Colour Temperature
|
3000K| 4000K
|
| Colour Technology |
CRI 90+ Standard|
CRI 93+ VIVID|
CRI 97+ Standard
|
| Colour Deviation | SDCM ≤ 2 |
| Lifetime | 50,000 hours (L80) |
| Beam Angle |
Wide| Narrow| Medium
|
|
System Power |
52.8W Typical |
|
Driver Model |
Trend 150020-700 (Non-dim) x2 |
|
Input |
180-265V AC 50/60 Hz |
|
Output |
30-40V DC 700mA |
|
Power Factor |
>0.90 |
|
Protection |
OVP,OTP,OCP,SCP,OPP
|
|
Driver |
Non-dimmable|
DALI|
Leading & Trailing Edge
|
General Characteristics
| Family | Midiled |
| Surface | Ceiling |
| Mounting | Recessed |
| Insulation Contact | Non-IC |
| Ingress Protection | IP20 |
