Description

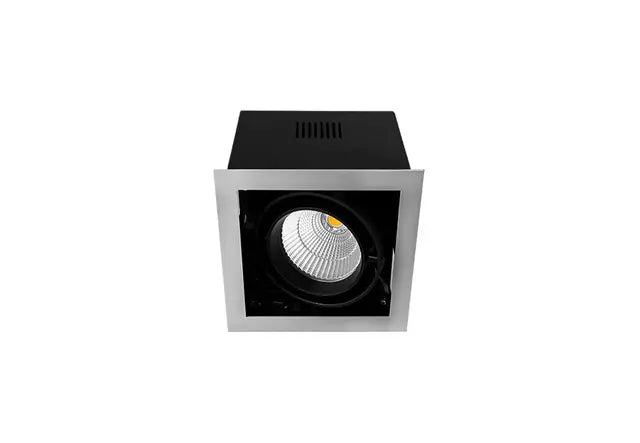

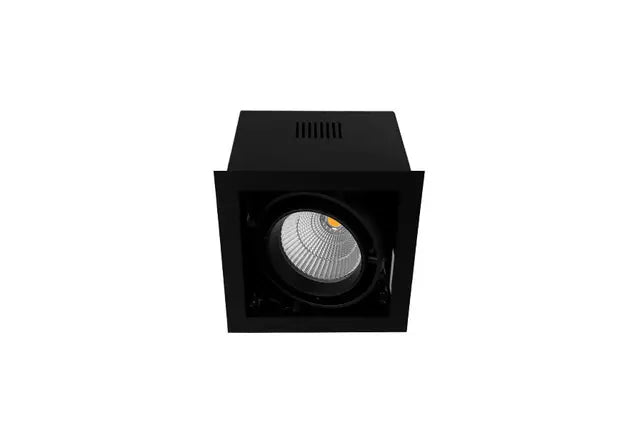

- Single recessed adjustable LED downlight with square trim
- Also available in a twin configuration (XMB225) or as a row of three (XMB325)
- Anodised black heatsink for optimum thermal management, ensuring high output and long lifespan
- CRI 90+ available in 3000K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 3000K and 4000K CCT options
- Supplied with a remote driver
Physical Characteristics
| Trim Colour | White| Black| Silver |
| Dimensions | 190 (L) X 190 (W) X 185 (H) mm |
| Weight | 1895 g |
| Tilt Angle | 35º x 35° |
| Cutout | Square - 165 mm |
| Spring Height | 22 mm |
Technical Characteristics*
| LED Power | 25W |
| LED Type | COB |
| LED Lumen Output* |
2955 lm
|
| Luminous Flux* | 2441 lm |
| Efficacy* |
92.46 lm/W
|
| Colour Temperature |
3000K| 4000K
|
| Colour Technology |
CRI 90+ Standard|
CRI 93+ VIVID|
CRI 97+ Standard
|
| Colour Deviation | SDCM ≤ 2 |
| Lifetime |
50,000 hours (L80)
|
| Beam Angle |
Wide| Narrow| Medium
|
| System Power | 26.4W Typical |
| Driver Model | Trend 150020-B-700 (Non-dim) |
| Input | 180-265V AC 50/60 Hz |
| Output |
30-40V DC 700mA
|
| Power Factor | >0.90 |
| Protection | OVP,OTP,OCP,SCP,OPP |
| Driver |
Non-dimmable|
Leading & Trailing Edge|
DALI
|
General Characteristics
| Family | Midiled |
| Surface | Ceiling |
| Mounting | Recessed |
| Insulation Contact | Non-IC |
| Ingress Protection | IP20 |
