Description

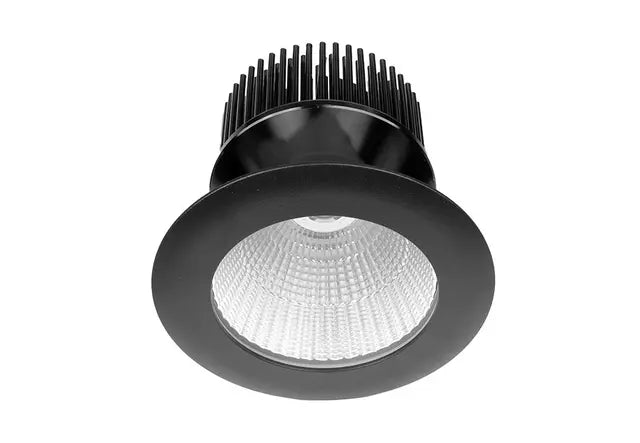

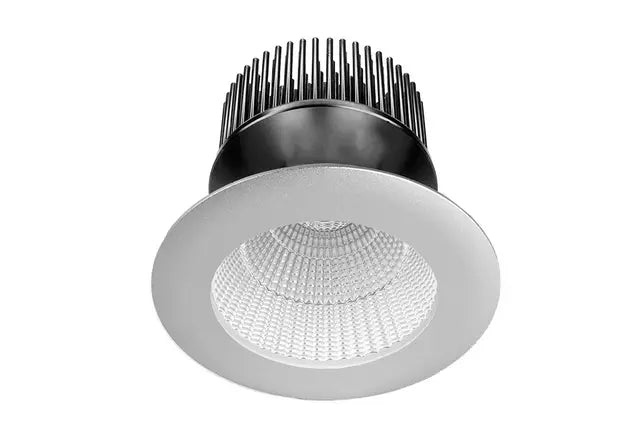

- Recessed LED downlight characterised by its quality, light efficiency and performance
- Manufactured with an aluminium body and powder coat finish
- Large pin fin heatsink for optimal thermal management
- Also available in other configurations (XDS10, XDS15 and XDS35)
- CRI 90+ available in 3000K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 3000K and 4000K CCT options
- Supplied with a remote driver
Physical Characteristics
| Trim Colour |
White| Black| Silver
|
| Dimensions | ⌀130 X 110 (H) mm |
| Weight | 370 g |
| Cutout | Circle - 115 mm |
| Spring Height | 22 mm |
Technical Characteristics*
| LED Power | 25W |
| LED Type | COB |
| LED Lumen Output* | 2955 lm |
| Luminous Flux* | 2437 lm |
| Efficacy* | 92.31 lm/W |
| Colour Temperature |
3000K| 4000K
|
| Colour Technology |
CRI 90+ Standard|
CRI 93+ VIVID|
CRI 97+ Standard
|
| Colour Deviation | SDCM ≤ 2 |
| Lifetime | 50,000 hours (L80) |
| Beam Angle |
Wide
|
| System Power | 26.4W Typical |
| Driver Model | Trend 150020-700 (L&T) |
| Input | 180-265V AC 50/60 Hz |
| Output | 30-40V DC 700mA |
| Power Factor | >0.90 |
| Protection |
OVP,OTP,OCP,SCP,OPP
|
| Driver |
Leading & Trailing Edge|
DALI
|
General Characteristics
| Family | Midiled |
| Surface | Ceiling |
| Mounting | Recessed |
| Insulation Contact | Non-IC |
| Ingress Protection | IP44 |
