Description

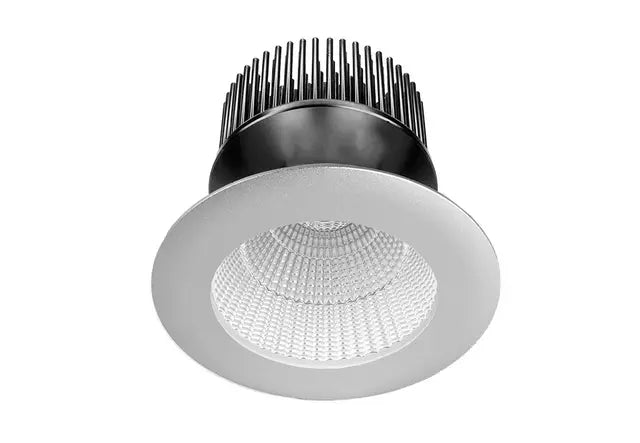

- Recessed LED downlight characterised by its quality, light efficiency and performance
- Manufactured with an aluminium body and powder coat finish
- Large pin fin heatsink for optimal thermal management
- Also available in other configurations (XDS10, XDS25 and XDS35)
- CRI 90+ available in 3000Kand 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 3000K and 4000K CCT options
- Supplied with a remote driver
Physical Characteristics
| Trim Colour |
White| Black| Silver
|
| Dimensions | ⌀130 X 110 (H) mm |
| Weight | 370 g |
| Cutout | Circle - 115 mm |
| Spring Height | 22 mm |
Technical Characteristics*
| LED Power | 15W |
|
LED Type
|
COB |
|
LED Lumen Output*
|
2004 lm |
|
Luminous Flux*
|
1591 lm
|
|
Efficacy*
|
87.42 lm/W
|
|
Colour Temperature
|
3000K| 4000K
|
|
Colour Technology
|
CRI 90+ Standard|
CRI 93+ VIVID|
CRI 97+ Standard
|
|
Colour Deviation
|
SDCM ≤ 2
|
|
Lifetime
|
50,000 hours (L80)
|
|
Beam Angle
|
Wide
|
|
System Power
|
18.2W Typical
|
|
Driver Model
|
Trend 150016-420 (L&T)
|
|
Input
|
180-265V AC 50/60 Hz
|
|
Output
|
30-40V DC 420mA
|
|
Power Factor
|
>0.90
|
|
Protection
|
OVP,OTP,OCP,SCP, OPP
|
|
Driver
|
Leading & Trailing Edge|
DALI|
1-10V
|
General Characteristics
| Family | Midiled |
| Surface | Ceiling |
| Mounting | Recessed |
| Insulation Contact | Non-IC |
| Ingress Protection | IP44 |
DOWNLOADS
| DATASHEET |
|
