Description

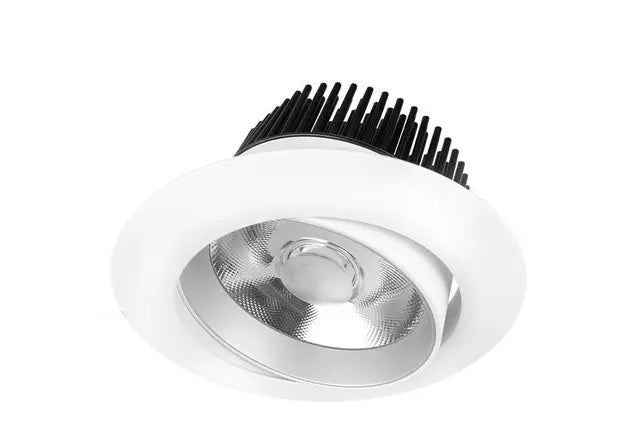

- Recessed adjustable LED downlight with front collimator lens and lower profile, characterised by its quality, light efficiency and performance
- Manufactured with an aluminium body and powder coat finish
- Large pin fin heatsink for optimal thermal management
- CRI 90+ available in 3000K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 3000K and 4000K CCT options
- Supplied with a remote driver

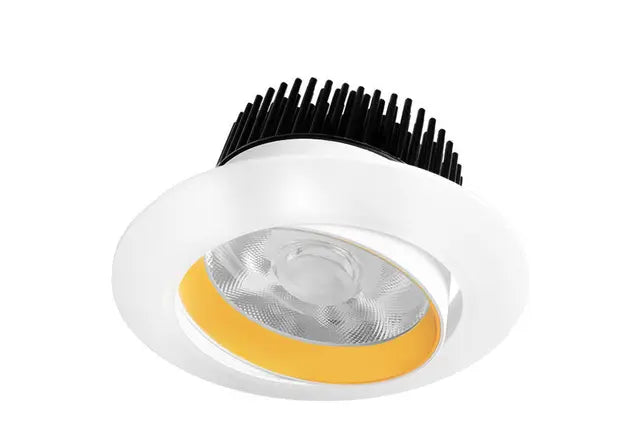

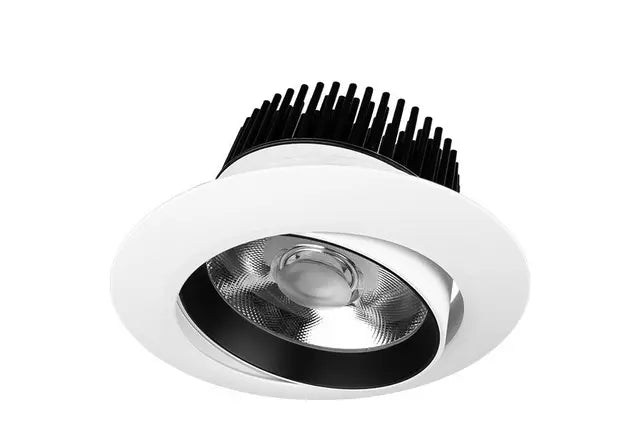

Note: You can change the insert colour of this downlight. Insert colour options are:
- Black
- White
- Silver
- Gold
When you choose the colour:
- Black Trim automatically comes with Black insert.
- White Trim automatically comes with White insert.
- Silver Trim automatically comes with Silver insert.
Please call us on (02) 9517 2701 if you wanted to change.
Physical Characteristics
| Trim Colour | White | Black | Silver |
| Insert Colour |
White |Black| Silver| Gold |
| Dimensions | ⌀150 X 85 (H) mm |
| Weight | 505 g |
| Tilt Angle | 25° |
| Cutout |
Circle - 120 mm
|
| Spring Height | 35 mm |
Technical Characteristics*
| LED Power | 25W |
| LED Type | COB |
| LED Lumen Output* | 2955 lm |
| Luminous Flux* | 2228 lm |
| Efficacy* | 84.39 lm/W |
| Colour Temperature |
3000K| 4000K
|
| Colour Technology |
CRI 90+ Standard|
CRI 93+ VIVID|
CRI 97+ Standard
|
| Colour Deviation | SDCM ≤ 2 |
| Lifetime | 50,000 hours (L80) |
| Beam Angle |
Wide| Medium | Narrow
|
| System Power | 26.4W Typical |
| Driver Model | Trend 150020-700 (L&T) |
| Input | 180-265V AC 50/60 Hz |
| Output | 30-40V DC 700mA |
| Power Factor | >0.90 |
| Protection |
OVP,OTP,OCP,SCP,OPP
|
| Driver |
Leading & Trailing Edge|
DALI
|
General Characteristics
| Family | Midiled |
| Surface | Ceiling |
| Mounting | Recessed |
| Insulation Contact | Non-IC |
| Ingress Protection | IP20 |
DOWNLOADS
| DATASHEET |
|
