Description

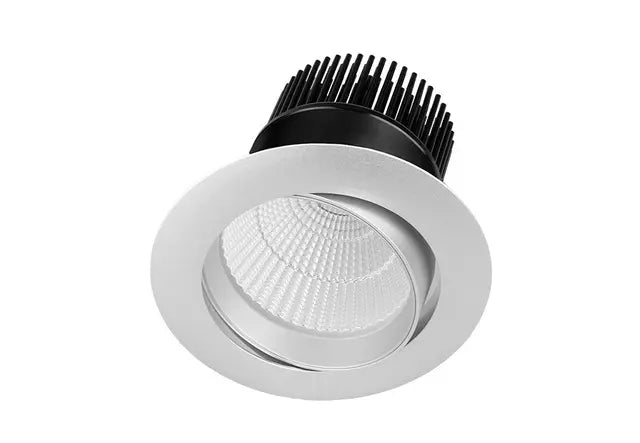

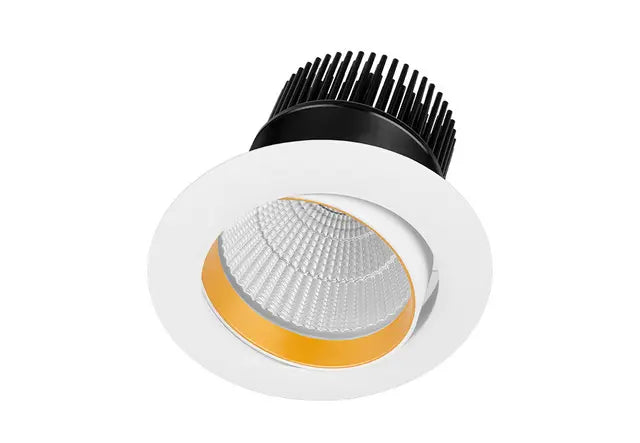

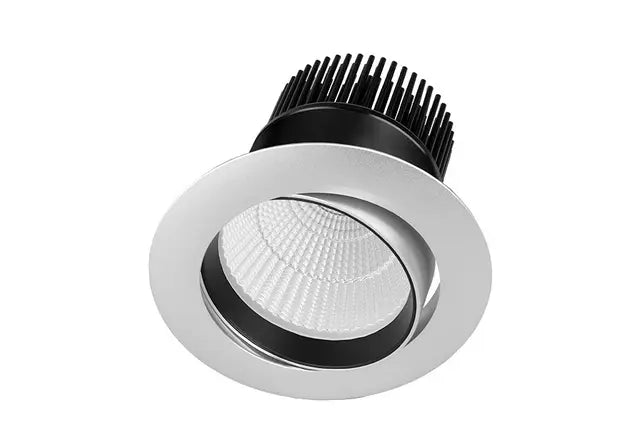

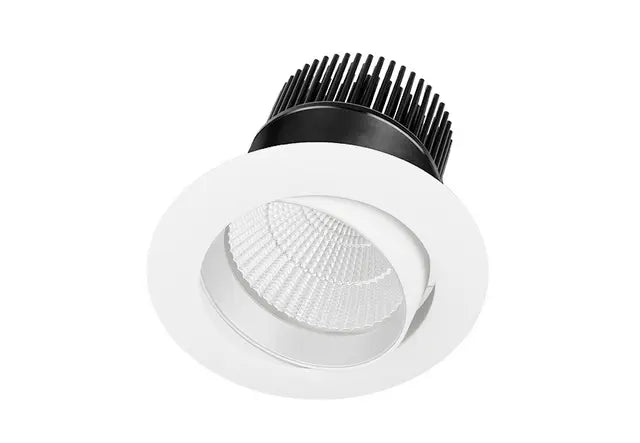

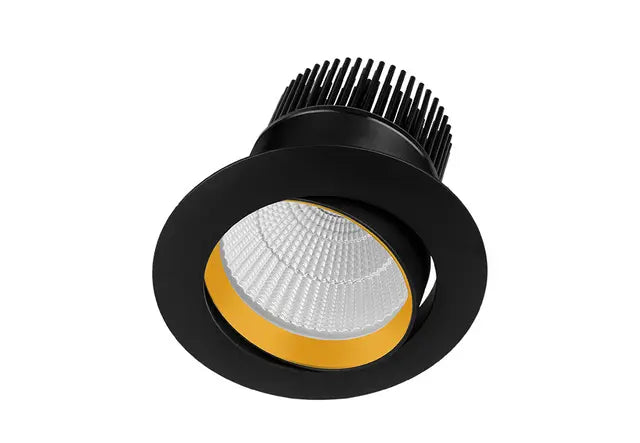

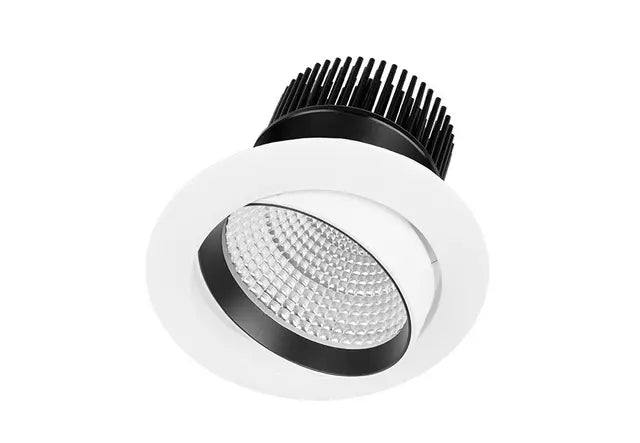

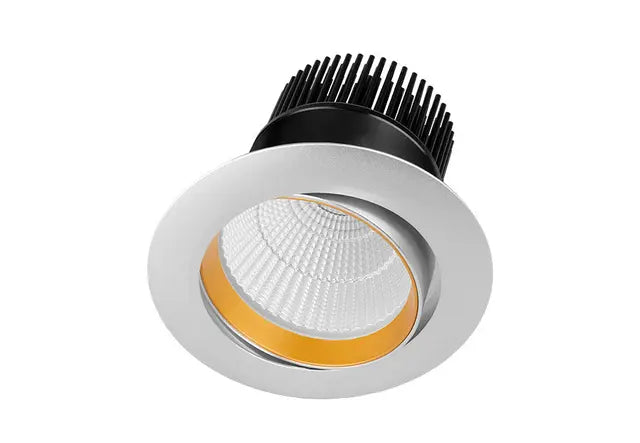

- Recessed adjustable LED downlight, distinctively characterised by its configurable inserts that can suit any interior scheme
- Manufactured with an aluminium body and powder coat finish
- Large pin fin heatsink for optimal thermal management
- Also available in other configurations (XDM10, XDM25 and XDM30)
- CRI 90+ available in 3000K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 3000K and 4000K CCT options
- Supplied with a remote driver
Note: You can change the insert colour of this downlight. Insert colour options are:
- Black
- White
- Silver
- Gold
When you choose the colour:
- Black Trim automatically comes with Black insert.
- White Trim automatically comes with White insert.
- Silver Trim automatically comes with Silver insert.
Please call us on (02) 9517 2701 if you wanted to change.
Physical Characteristics
| Trim Colour |
White| Black| Silver
|
| Insert Colour |
White| Black| Silver| Gold
|
| Dimensions | ⌀150 X 125 (H) mm |
| Weight | 470 g |
| Tilt Angle | 25° |
| Cutout | Circle - 120 mm |
| Spring Height | 32 mm |
Technical Characteristics*
| LED Power | 15W |
| LED Type | COB |
| LED Lumen Output* | 2004 lm |
| Luminous Flux* | 1613 lm |
| Efficacy* | 88.63 lm/W |
| Colour Temperature |
3000K| 4000K
|
| Colour Technology |
CRI 90+ Standard|
CRI 93+ VIVID|
CRI 97+ Standard
|
| Colour Deviation | SDCM ≤ 2 |
| Lifetime | 50,000 hours (L80) |
| Beam Angle |
Wide| Narrow| Medium
|
| System Power | 18.2W Typical |
| Driver Model | Trend 150016-420 (L&T)T |
| Input | 180-265V AC 50/60 Hz |
| Output | 30-40V DC 420mA |
| Power Factor | >0.90 |
| Protection |
OVP,OTP,OCP,SCP,OPP
|
| Driver |
Leading & Trailing Edge|
DALI|
1-10V
|
General Characteristics
| Family | Midiled |
| Surface | Ceiling |
| Mounting | Recessed |
| Insulation Contact | Non-IC |
| Ingress Protection | IP20 |
