Description

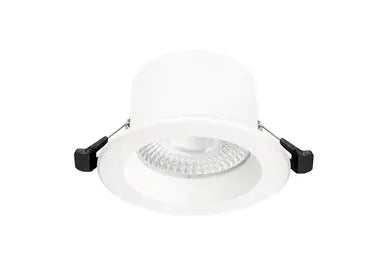

- Recessed COB fixed LED downlight with broad trim and wide collimating lens
- Manufactured with an aluminium body and finished with corrosion resistant powder coating
- An ideal lighting solution for residential and commercial applications
- Colour temperature can be selected via a switch at the rear of the luminaire, enabling users to switch between 3000K (warm white), 4000K (cool white) and 5700K (daylight) CCT
- Supplied with remote flicker free Leading & Trailing Edge dimmable driver
Technical Characteristics
Driver ModelTrend 150210-200 (L&T)Driver
Leading & Trailing Edge
|
LED Power |
7W | |
|
LED Type |
COB | |
|
LED Lumen Output* |
802 lm | |
|
Efficacy* |
Up to 96 lm/W | |
|
CCT Technology |
Switchable | |
|
Colour Temperature |
3000K, 4000K, 5700K | |
|
Colour Technology |
CRI 90+ Standard |
|
|
Colour Deviation |
SDCM ≤ 3 | |
|
Lifetime |
50,000 hours (L70) | |
|
Beam Angle |
Wide |
|
|
System Power |
8.3W Typical | |
| Input |
200-240V AC 50 Hz |
|
|
Output |
30-42V DC 200mA | |
|
Power Factor |
>0.95 | |
|
Protection |
OVP,OTP,OCP,SCP,OPP |
Physical Characteristics
|
Trim Colour |
White | Black |
|
Dimensions |
⌀105 X 58 (H) mm |
|
Weight |
160 g |
|
Cutout |
Circle - 76 - 92 mm |
|
Spring Height |
20 mm |
General Characteristics
|
Family |
Trend For Trade, Econoled |
|
Surface |
Ceiling |
|
Mounting |
Recessed |
|
Insulation Contact |
IC-4 |
|
Ingress Protection |
IP65 |
|
Warranty |
3 Years |
