Description

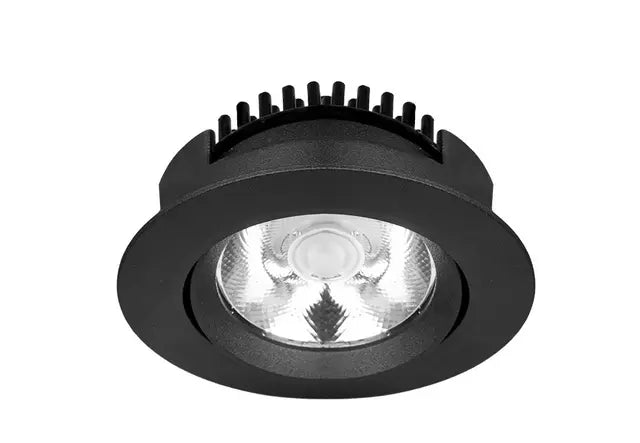

- Recessed petite adjustable LED downlight with low profile, suitable for applications with low ceiling clearance
- Equipped with a front collimator lens and powered by a high output COB LED
- CRI 90+ available in 3000K and 4000K CCT options
- Supplied with a remote driver
Physical Characteristics
| Trim Colour |
White|Black
|
| Dimensions | ⌀90 X 35 (H) mm |
|
Weight |
160 g |
|
Tilt Angle |
15° |
|
Cutout |
Circle - 76 mm |
|
Spring Height |
20 mm |
Technical Characteristics*
| LED Power | 7W |
| LED Type | COB |
| LED Lumen Output* | 950 lm |
| Luminous Flux* | 742 lm |
| Efficacy* | 90.49 lm/W |
| Colour Temperature |
3000K|4000K
|
| Colour Technology | CRI 90+ Standard |
| Colour Deviation | SDCM ≤ 3 |
| Lifetime | 50,000 hours (L70) |
| Beam Angle | Medium |
| System Power | 8.2W Typical |
| Driver Model | Trend 150210-200 (L&T) |
| Input | 200-240V AC 50 Hz |
| Output | 30-42V DC 200mA |
| Power Factor | >0.95 |
| Protection |
OVP,OTP,OCP,SCP,OPP
|
| Driver | Leading & Trailing Edge |
General Characteristics
| Family | Econoled |
| Surface | Ceiling |
| Mounting | Recessed |
| Insulation Contact | CA90 |
| Ingress Protection | IP20 |
