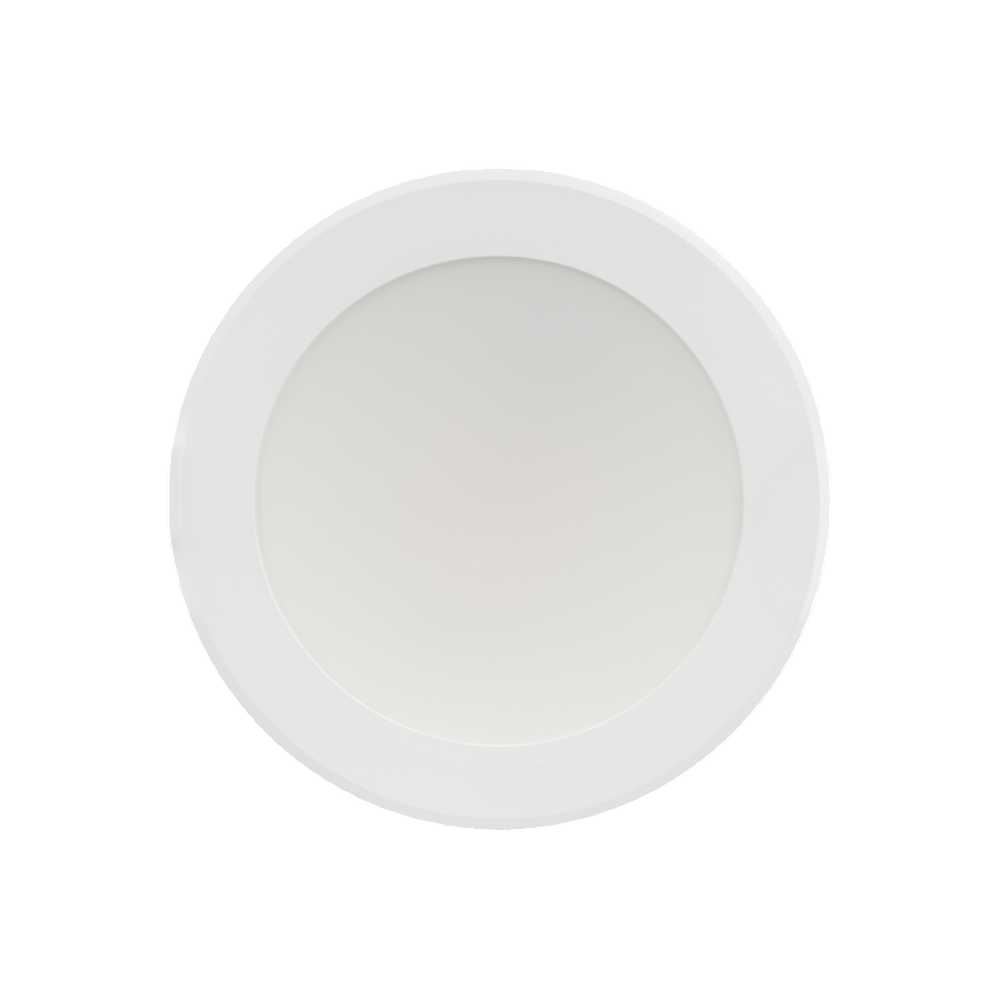

Description
Application

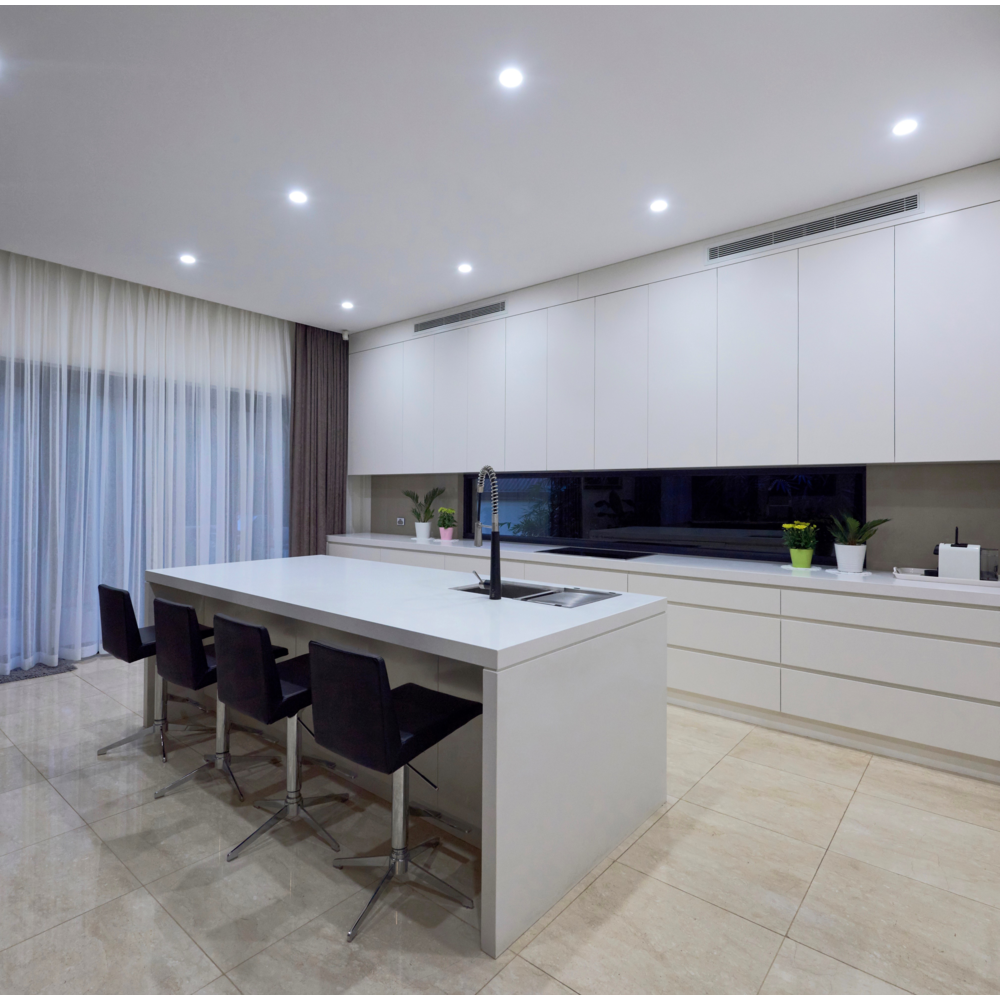

Ideal for any residential or commercial interior space
Design Specifications
-
Selectable CCT 3000K/4000K/5700K
-
Poly covered aluminium body, quality opal polycarbonate diffuser
-
Integral, trailing edge dimmable LED driver, with flex and plug
-
High efficiency LED optics
-

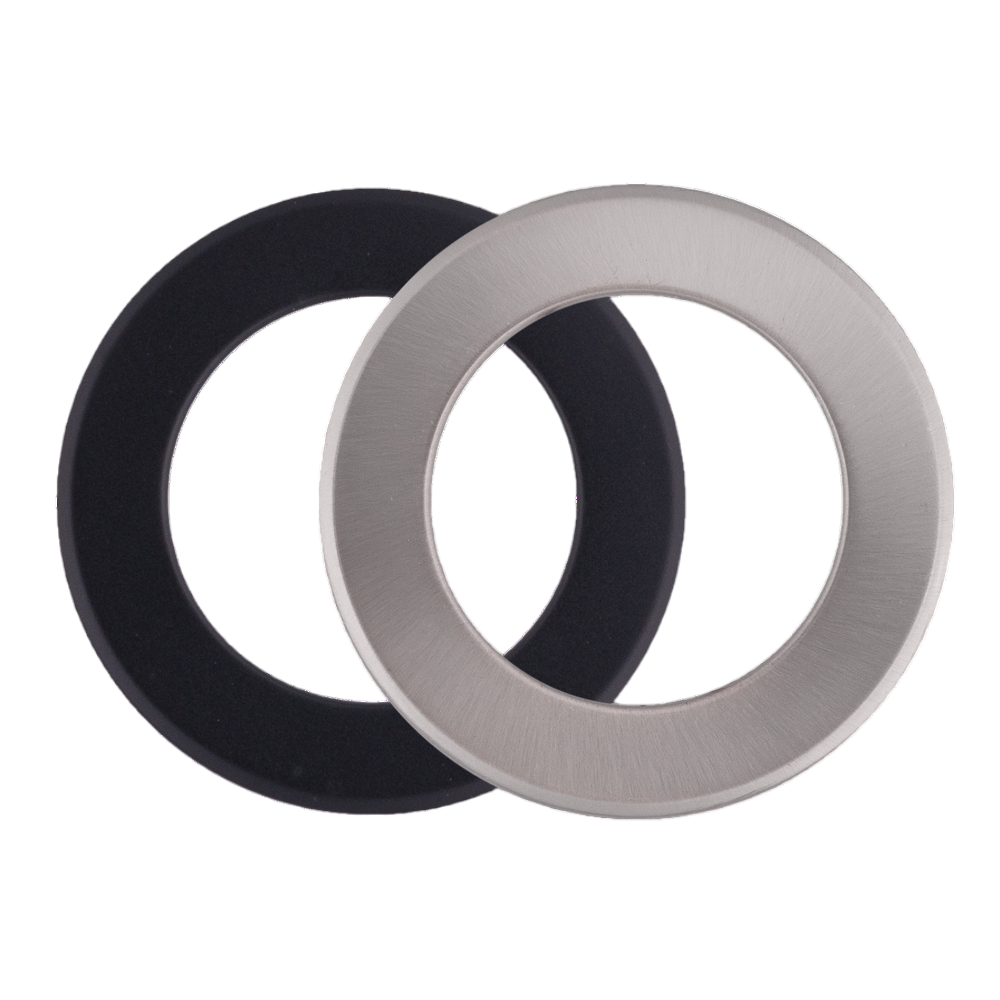

Deco ring options:
Satin Nickel (S9065SN/RING),
Black (S9065BK/RING) -
IC - 4 rated, double insulated
-
Colour 1 Satin Nickel (S9065SN/RING) Colour 2 Black (S9065BK/RING)
Performance
- Dimmable - YES
- Dimmer Type - Trailing edge
| Model No. | Input Voltage | Power | Lumens | CCT | Beam Angle | Dimmable | CRI | Body Colour | Cut Out | Diameter | Dim | IPART | REES | VEET |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S9065TC WH | 240 | 8 | 800/950/850 | 3000/4000/5700 | 90 | YES | 80 | WHITE | 92 | 113 | 59(H) | YES | YES | YES |
| S9065TC/WH/K10P | 240 | 9 | 750/850/800 | 3000/4000/5700 | 90 | YES | 90 | WHITE | 92 | 113 | 59(H) | YES | YES | YES |
