Description

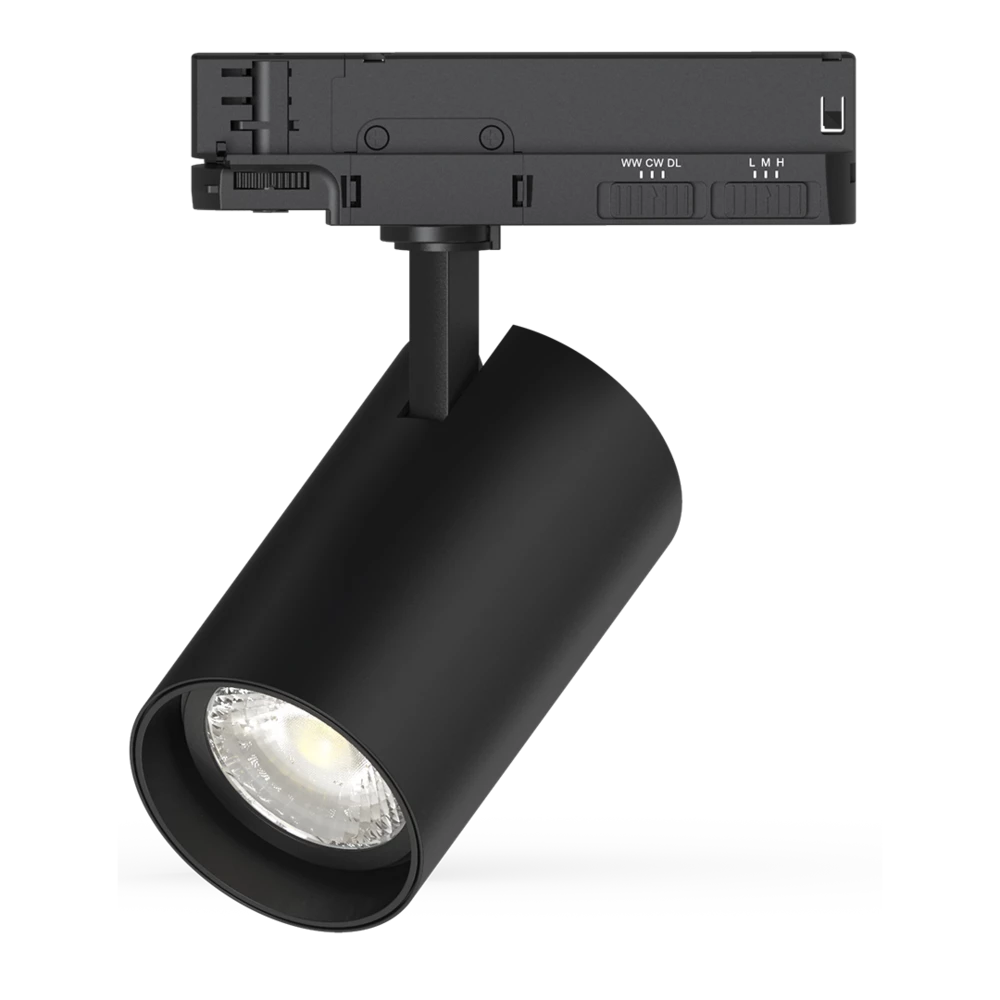

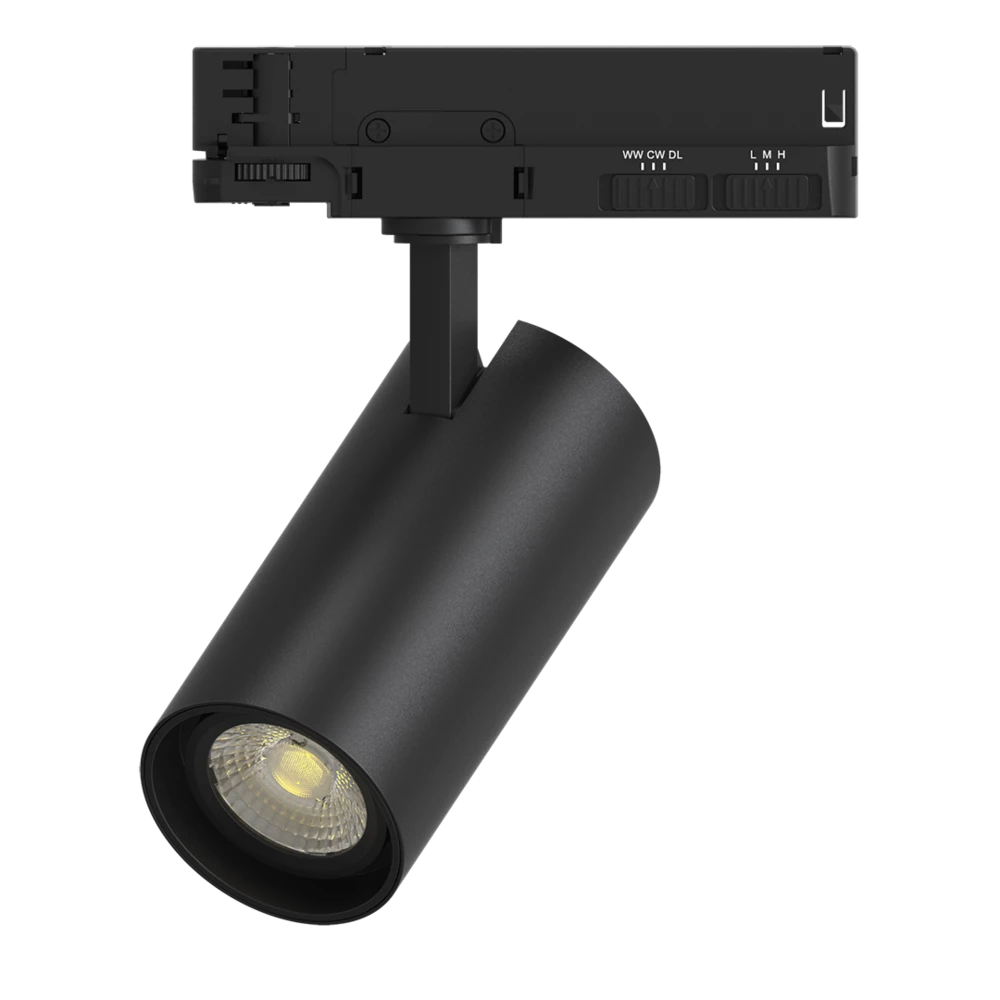

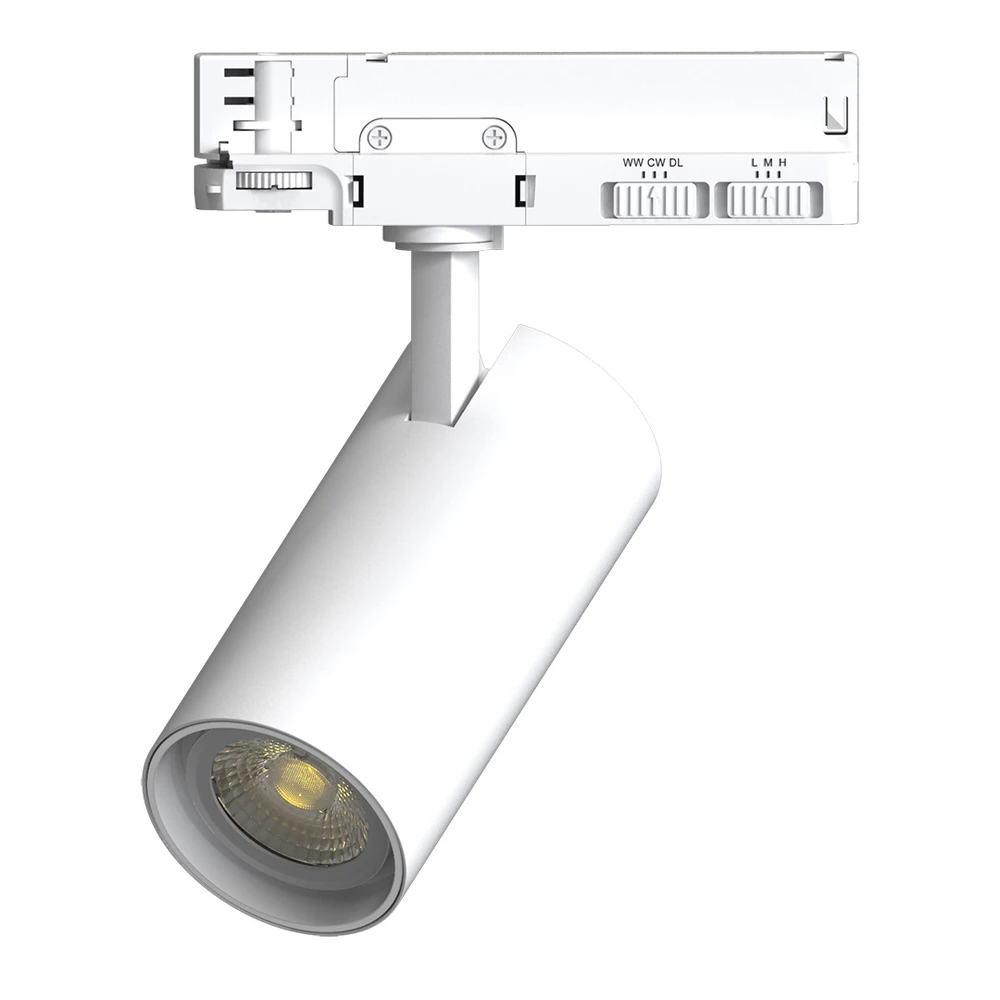

The SAL WARRAGUL STR488XMPXXTC is a 4 Wire – 3 Circuit LED track spotlight with selectable power and selectable CCT. Two body sizes cover 15/20/25W and 25/30/35W options in Black or White.
Key Features
- Selectable 15/20/25W or 25/30/35W Integrated LED models
- Compatible with 4 Wire – 3 Circuit Track
- Selectable 2700K / 4000K / 6000K
- CRI >90 with 36° beam
- 355° horizontal rotation and 90° vertical tilt
- Integral non-dimmable flickerCONTROLLED gear
- IP20 interior fitting
Suitable Applications
- Retail displays
- Residential interiors
- Commercial accent lighting
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | SAL Lighting |
| Range | Warragul |
| Model family | STR488XMPXXTC |
| Track compatibility | 4 Wire – 3 Circuit Track |
| Input voltage | 220–240V AC, 50Hz |
| Selectable power | 15/20/25W or 25/30/35W |
| Light source | Integrated LED – non-user-replaceable |
| Colour temperature | 2700K / 4000K / 6000K selectable |
| CRI | >90 |
| Beam angle | 36° |
| Dimming | Non-dimmable |
| Adjustment | 355° horizontal / 90° vertical |
| IP rating | IP20 |

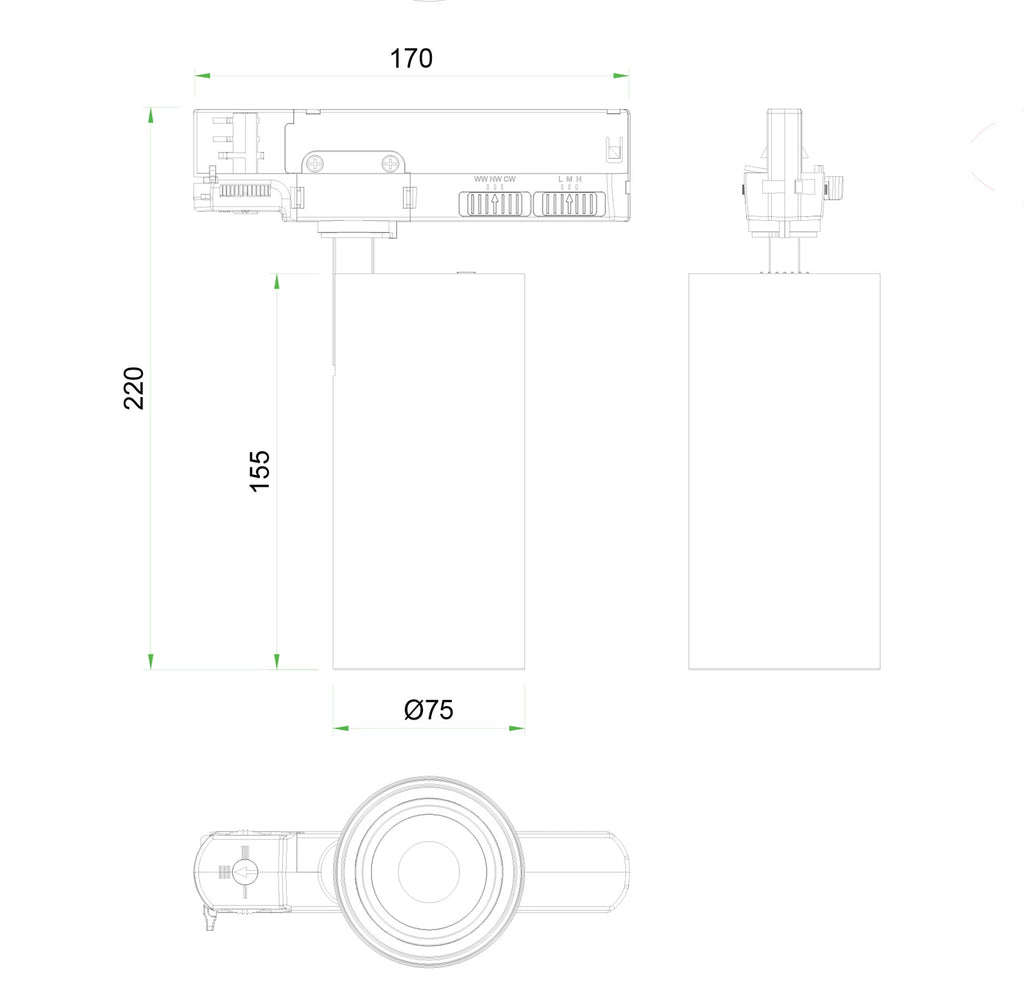

| Dimensions – STR4884MP25TC | 170(L) × 75(W) × 220(H)mm |

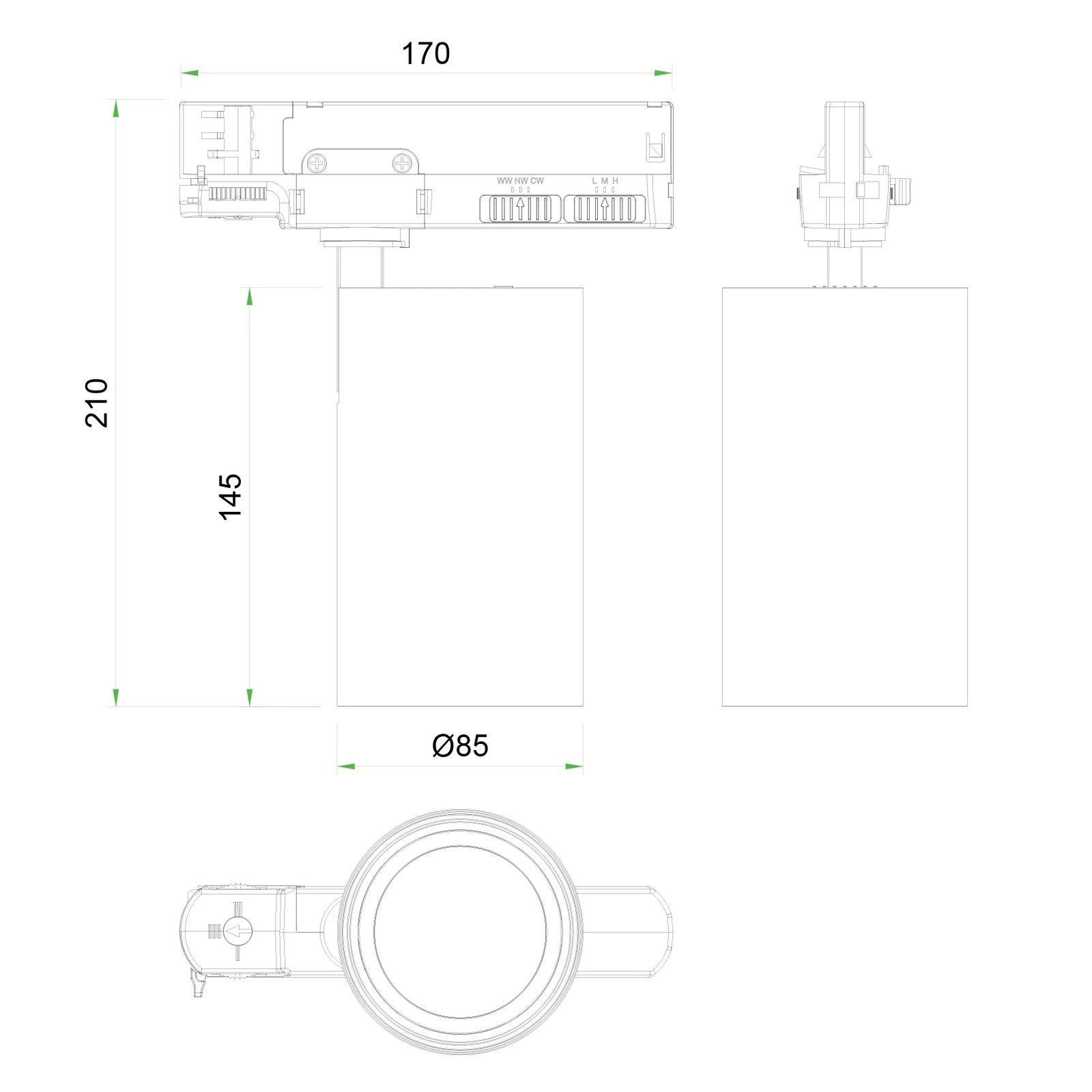

| Dimensions – STR4885MP35TC | 170(L) × 85(W) × 210(H)mm |
| Finish | Black or White |
Maximum-Power Light Output by Colour Temperature
SAL currently publishes the following lumen figures at each model's maximum power setting. Lower-power lumen values are not stated, so they are not inferred here.
| Model / Finish | 2700K | 4000K | 6000K |
|---|---|---|---|
| STR4884MP25TC/WH – 25W | 2700lm | 3100lm | 3000lm |
| STR4884MP25TC/BK – 25W | 2500lm | 2900lm | 2800lm |
| STR4885MP35TC/WH – 35W | 3600lm | 3900lm | 3800lm |
| STR4885MP35TC/BK – 35W | 3200lm | 3500lm | 3400lm |
Important Compatibility Note
Compatible with 4 Wire – 3 Circuit Track. It is not compatible with 3 Wire – Single Circuit or magnetic track systems. Switch the power off before changing the selectable power or CCT setting.
