Description
Application

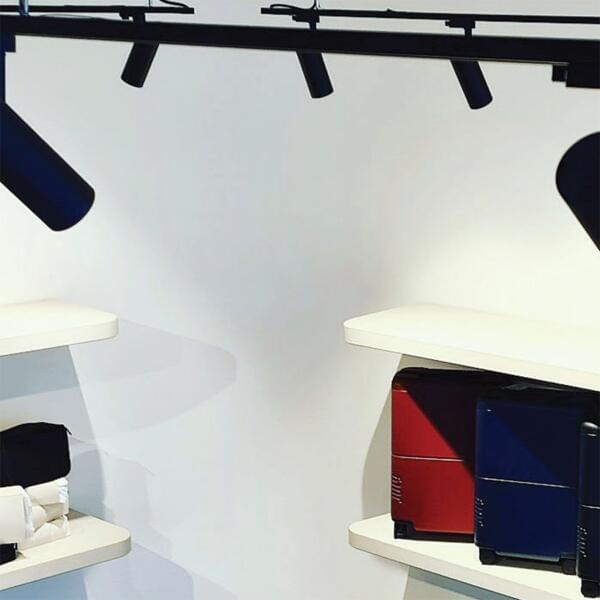

Ideal for decorative retail or interior residential spaces

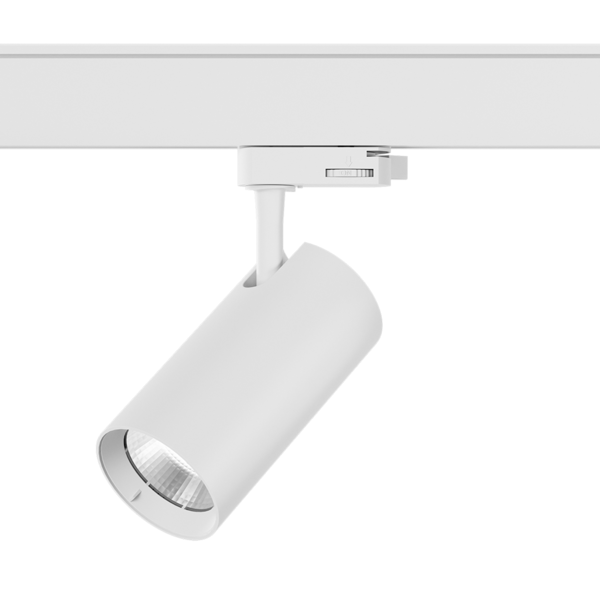

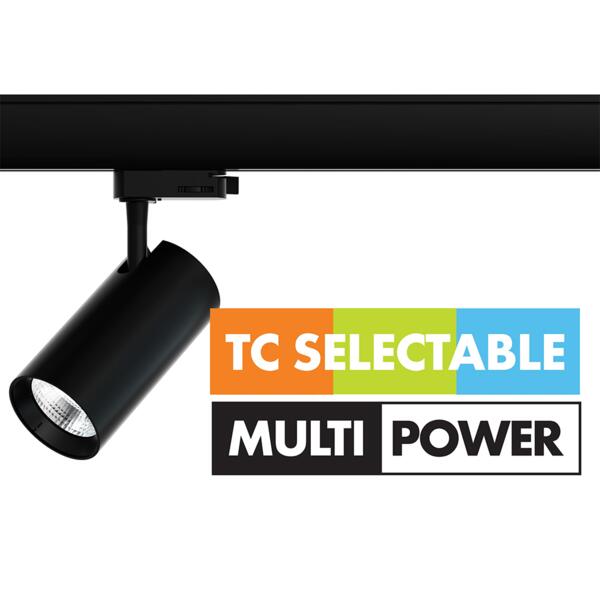

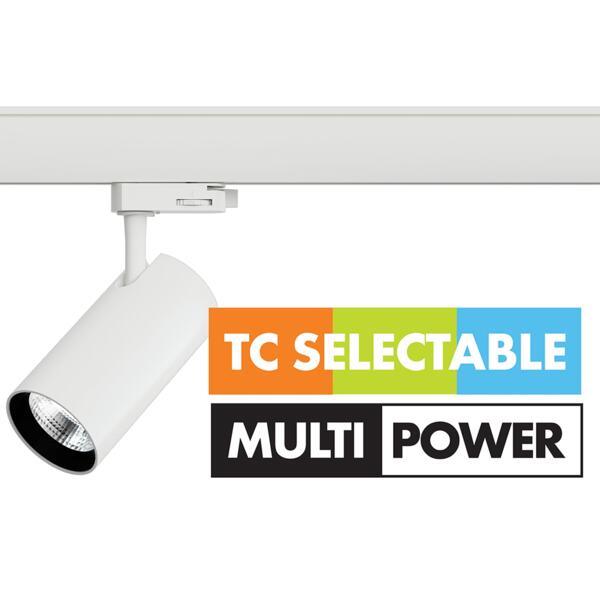

Design Specifications
-
Durable Polyamide body profile, colour white or black
-
High output LED optics, CRI >80, selectable CCT 3000K / 4000K / 5700K
-
Polycarbonate lens, 40° beam distribution
-
21/30 watt integral non-dimmable LED driver
-
Optional black or white baffle available
Performance
- Dimmable - NO
| Model No. | Input Voltage | Lumens | CCT | Body Colour | CRI | Beam Angle | Dim |
|---|---|---|---|---|---|---|---|
| STR9017/30TC/DP/WH | 240 | 2100/2400/2200 | 3000/4000/5700 | WHITE | 80 | 40 | 90(W) x 210(H) |
| STR9017/30TC/DP/BK | 240 | 2100/2400/2200 | 3000/4000/5700 | BLACK | 80 | 40 | 90(W) x 210(H) |
| STR9017/30RING/BK | BLACK RING INSERT | 40 | |||||
| STR9017/30RING/WH | WHITE RING INSERT | 40 |
