Description

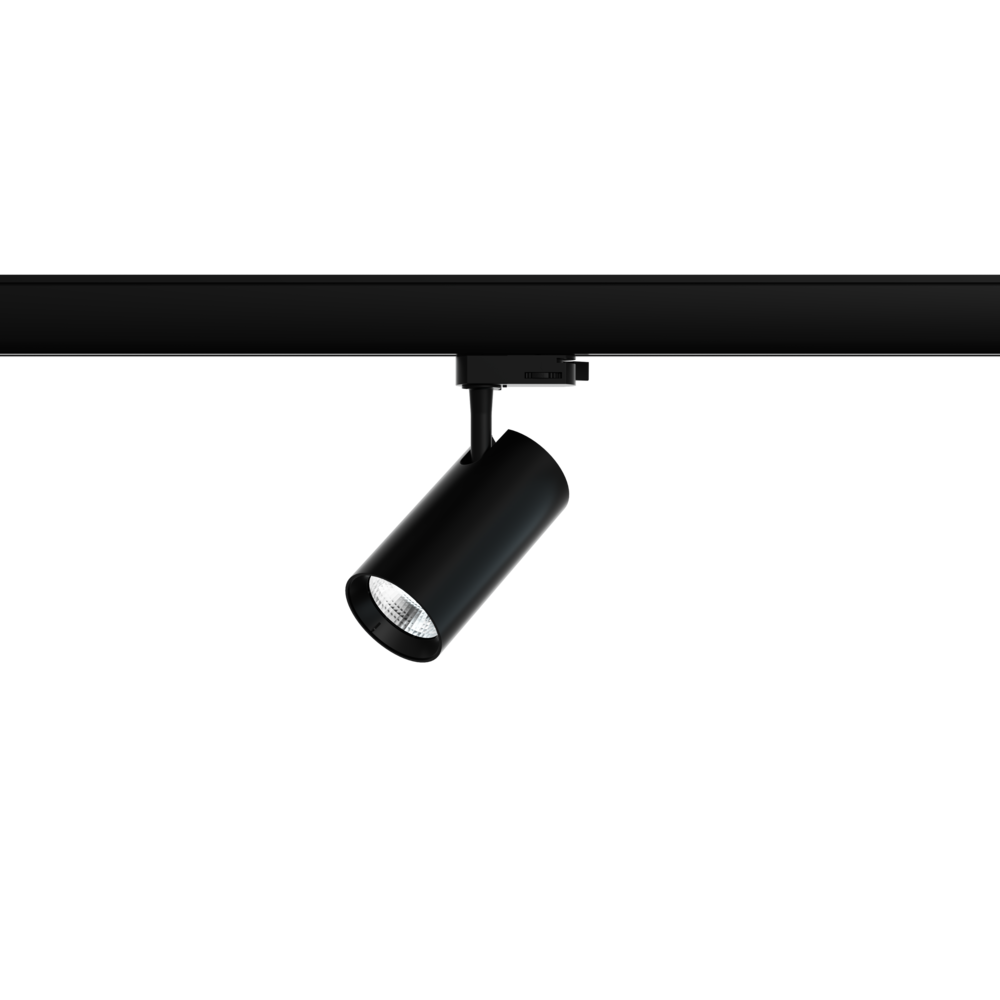

The SAL Unitrek STR9017/15TC is a 15W integrated LED track spotlight designed for single-circuit 240V track lighting in retail, residential and other interior applications. Available in Black or White, it features selectable 3000K, 4000K or 5700K colour temperature, a focused 40° beam and trailing-edge dimming.
Key Features
- 15W Integrated LED track spotlight with integral driver
- Compatible with 3 Wire – Single Circuit Track systems
- Selectable tri-colour output: 3000K, 4000K or 5700K
- Light output by colour temperature: 3000K — 1000lm; 4000K — 1150lm; 5700K — 1100lm
- 40° beam angle with CRI >80
- Trailing-edge dimmable
- Available in Black or White
- IP20 for interior applications
- 70mm diameter × 140mm high
- 5-year residential / 3-year commercial warranty
- Designed for horizontal, non-raked ceiling track installation
- Installation by a suitably licensed electrician is required
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | SAL Lighting |
| Range | Unitrek |
| Model family | STR9017/15TC |
| Track system | 3 Wire – Single Circuit |
| Input voltage | 220–240V AC, 50Hz |
| Wattage | 15W |
| Light source | Integrated LED |
| Selectable colour temperature | 3000K / 4000K / 5700K |
| Lumen output by colour temperature | 3000K — 1000lm 4000K — 1150lm 5700K — 1100lm |
| CRI | >80 |
| Beam angle | 40° |
| Dimming | Trailing-edge dimmable |
| IP rating | IP20 |
| Dimensions | Ø70mm × 140mm high |
| Finish | Black or White |
| Warranty | 5 years residential / 3 years commercial |
Important Compatibility Note
This model is compatible with 3 Wire – Single Circuit Track. It is not compatible with 4 Wire – 3 Circuit or magnetic track systems.
