Description

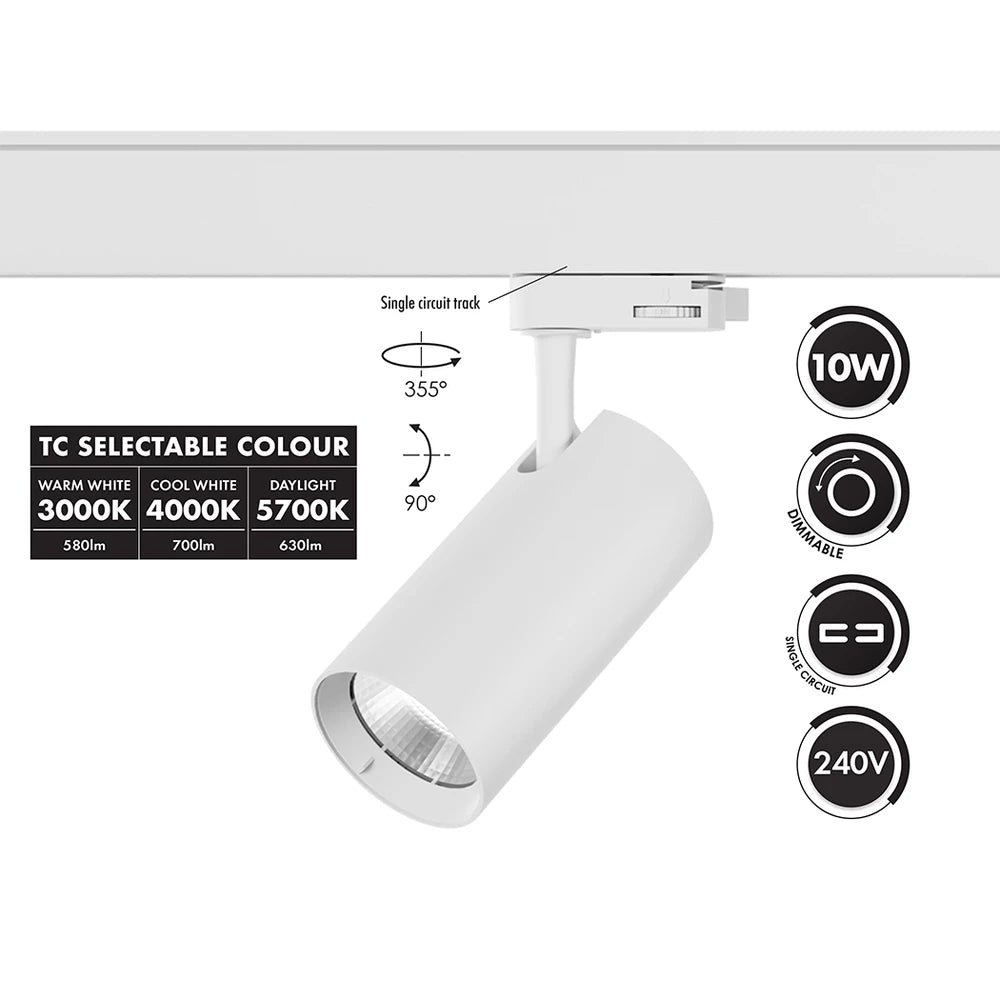

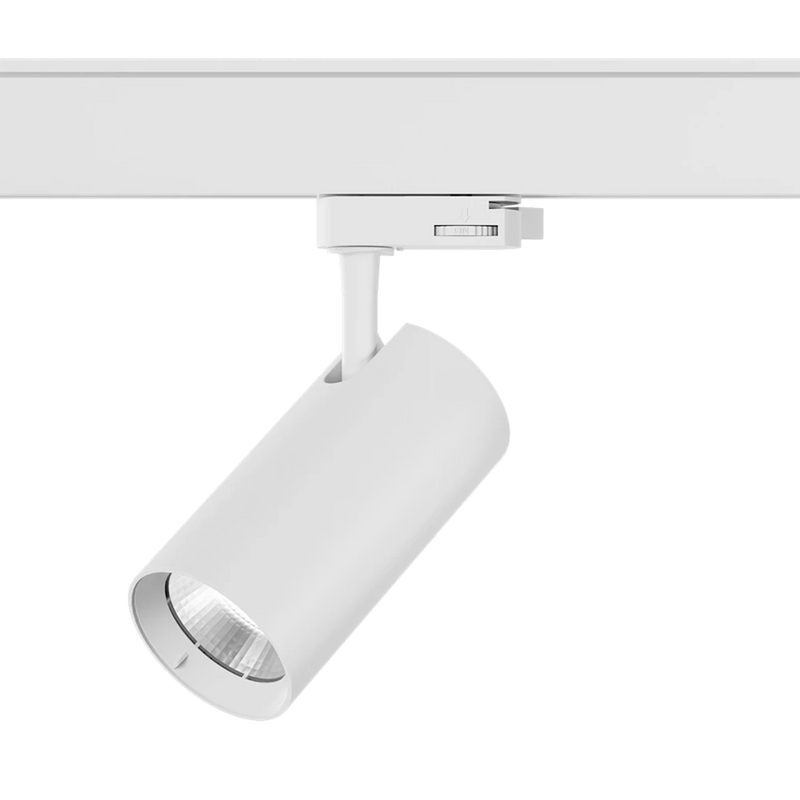

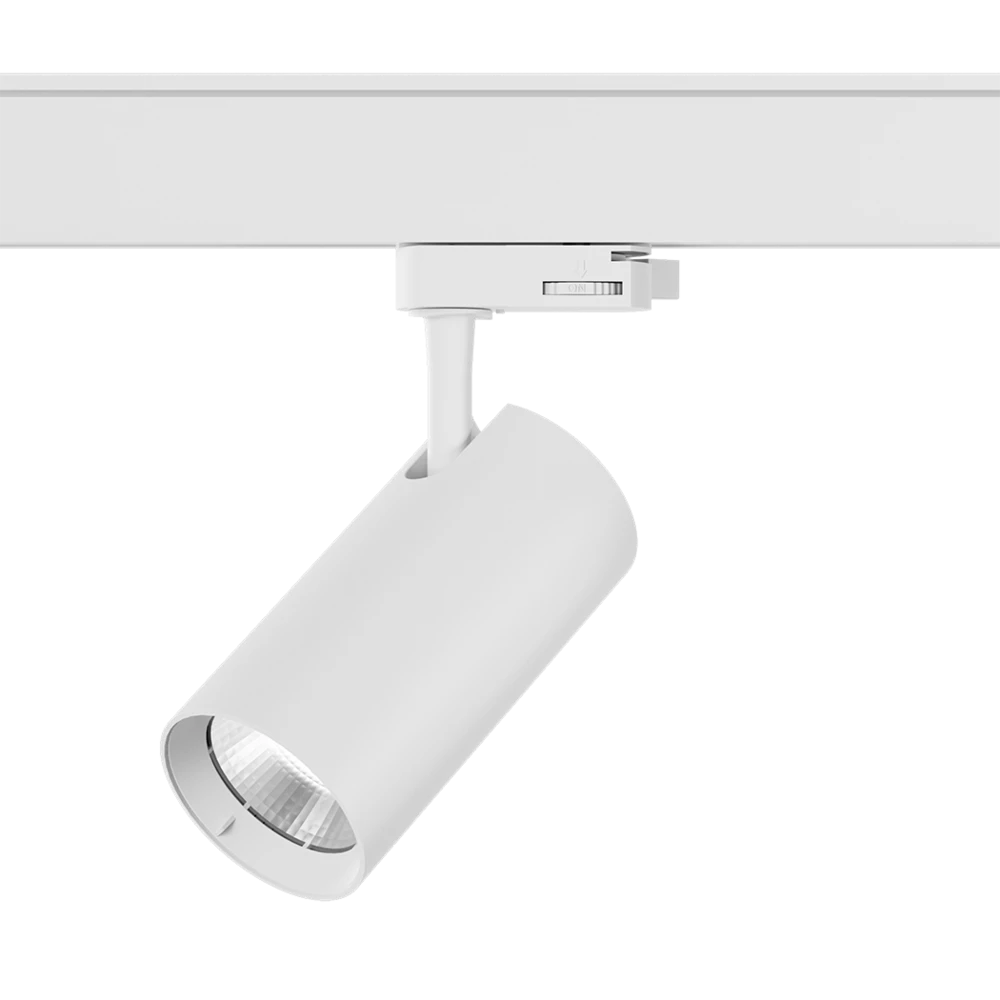

The SAL Unitrek STR9017/10TC is a compact 10W integrated LED track spotlight for 240V single-circuit track systems, with selectable colour temperature and trailing-edge dimming.
Key Features
- 10W Integrated LED with integral driver
- Compatible with 3 Wire – Single Circuit Track
- Selectable 3000K / 4000K / 5700K
- Light output by colour temperature: 3000K — 580lm; 4000K — 700lm; 5700K — 630lm
- 40° beam with CRI >80
- Trailing-edge dimmable
- IP20 interior fitting
- Ø60mm × 125mm high
- 5-year residential / 3-year commercial warranty
Suitable Applications
- Retail displays
- Residential interiors
- Focused accent lighting
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | SAL Lighting |
| Range | Unitrek |
| Model family | STR9017/10TC |
| Track compatibility | 3 Wire – Single Circuit Track |
| Input voltage | 220–240V AC, 50Hz |
| Wattage | 10W |
| Light source | Integrated LED – non-user-replaceable |
| Colour temperature | 3000K / 4000K / 5700K selectable |
| Lumen output by colour temperature | 3000K — 580lm 4000K — 700lm 5700K — 630lm |
| CRI | >80 |
| Beam angle | 40° |
| Dimming | Trailing-edge dimmable |
| IP rating | IP20 |
| Dimensions | Ø60mm × 125mm high |
| Finish | Black or White |
| Warranty | 5 years residential / 3 years commercial |
Important Compatibility Note
Compatible with 3 Wire – Single Circuit Track. It is not compatible with 4 Wire – 3 Circuit or magnetic track systems.
