Description

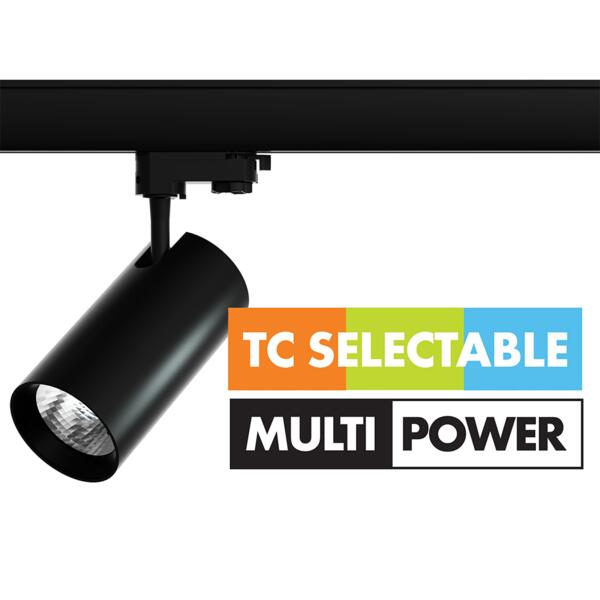

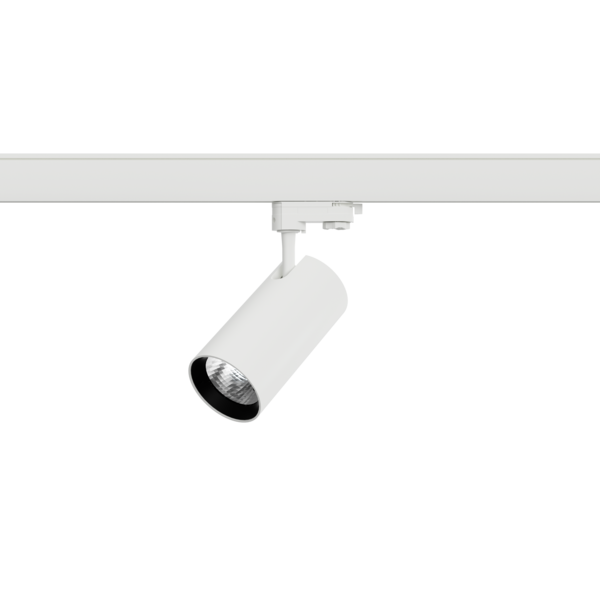

The SAL Unitrek STR3/9017/30TC/DP is a selectable 21/30W integrated LED spotlight for 240V three-circuit track systems, combining selectable power and CCT with a 40° beam.
Key Features
- 21/30W selectable Integrated LED
- Compatible with 4 Wire – 3 Circuit Track
- Selectable 3000K / 4000K / 5700K
- 21W output: 3000K — 1600lm; 4000K — 1900lm; 5700K — 1700lm
- 30W output: 3000K — 2100lm; 4000K — 2400lm; 5700K — 2200lm
- 40° beam with CRI >80
- Non-dimmable
- 350° horizontal rotation
- IP20 interior fitting
- Ø90mm × 210mm high
- 5-year residential / 3-year commercial warranty
Suitable Applications
- Retail displays
- Commercial interiors
- Higher-output accent lighting
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | SAL Lighting |
| Range | Unitrek |
| Model family | STR3/9017/30TC/DP |
| Track compatibility | 4 Wire – 3 Circuit Track |
| Input voltage | 220–240V AC, 50Hz |
| Selectable wattage | 21W / 30W |
| Light source | Integrated LED – non-user-replaceable |
| Colour temperature | 3000K / 4000K / 5700K selectable |
| Lumen output at 21W | 3000K — 1600lm 4000K — 1900lm 5700K — 1700lm |
| Lumen output at 30W | 3000K — 2100lm 4000K — 2400lm 5700K — 2200lm |
| CRI | >80 |
| Beam angle | 40° |
| Dimming | Non-dimmable |
| Adjustment | 350° horizontal rotation |
| IP rating | IP20 |
| Dimensions | Ø90mm × 210mm high |
| Finish | Black or White |
| Warranty | 5 years residential / 3 years commercial |
Important Compatibility Note
Compatible with 4 Wire – 3 Circuit Track. It is not compatible with 3 Wire – Single Circuit or magnetic track systems. Switch power off before changing the selectable power or CCT setting.
