Description
Application
Ideal for decorative interior and retail designs
Design Specifications
-

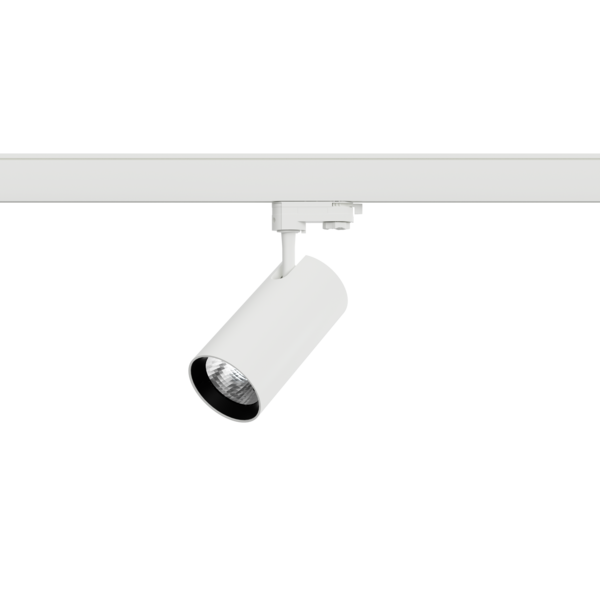

Architectural cylindrical profile, 350 degree rotation
-
Robust Polyamide body profile, colour matt white or black
-
High efficiency COB LED chip, CRI > 80, selectable CCT 3000/4000/5700K
-
Multi-faceted system, standard beam distribution 40 degree
-
15 watt integral dimmable driver
| Model No. | Input Voltage | Power | Lumens | CCT | Body Colour | CRI | Beam Angle | Dimmable | Dim (mm) |
|---|---|---|---|---|---|---|---|---|---|
| STR3/9017/15TC/BK | 240 | 15 | 1000/1150/1100 | 3000/4000/5700 | BLACK | 80 | 40 | YES | 70(W) x 140(H) |
| STR3/9017/15TC/WH | 240 | 15 | 1000/1150/1100 | 3000/4000/5700 | WHITE | 80 | 40 | YES | 70(W) x 140(H) |
| STR9017/15RING/BK | BLACK RING INSERT | 40 | |||||||
| STR9017/15RING/WH | WHITE RING INSERT | 40 |
