Description
Application
Ideal for any residential or commercial interior space
Design Specifications
-

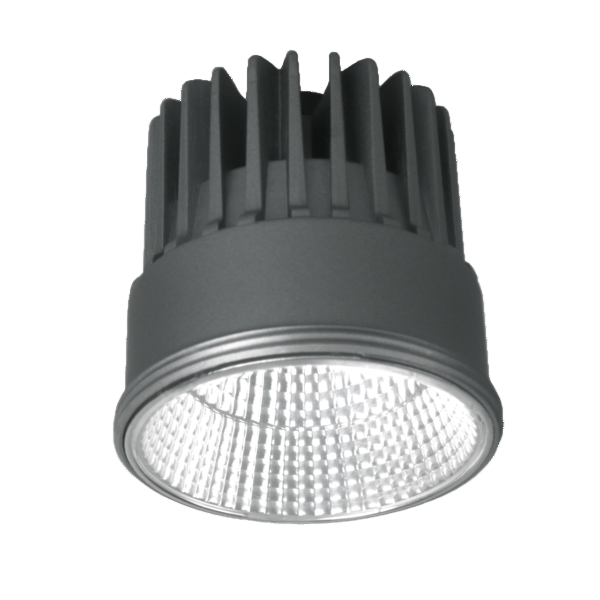

Efficient die-cast aluminium heat sink
-
High output LED optics, CRI > 90
-
Changeable multi-faceted reflector system, standard 60 degree, optional 25 and 40 degree
-
Polycarbonate optical lens
-
Remote constant current trailing edge dimmable LED driver, fitted with flex and plug for plug and play

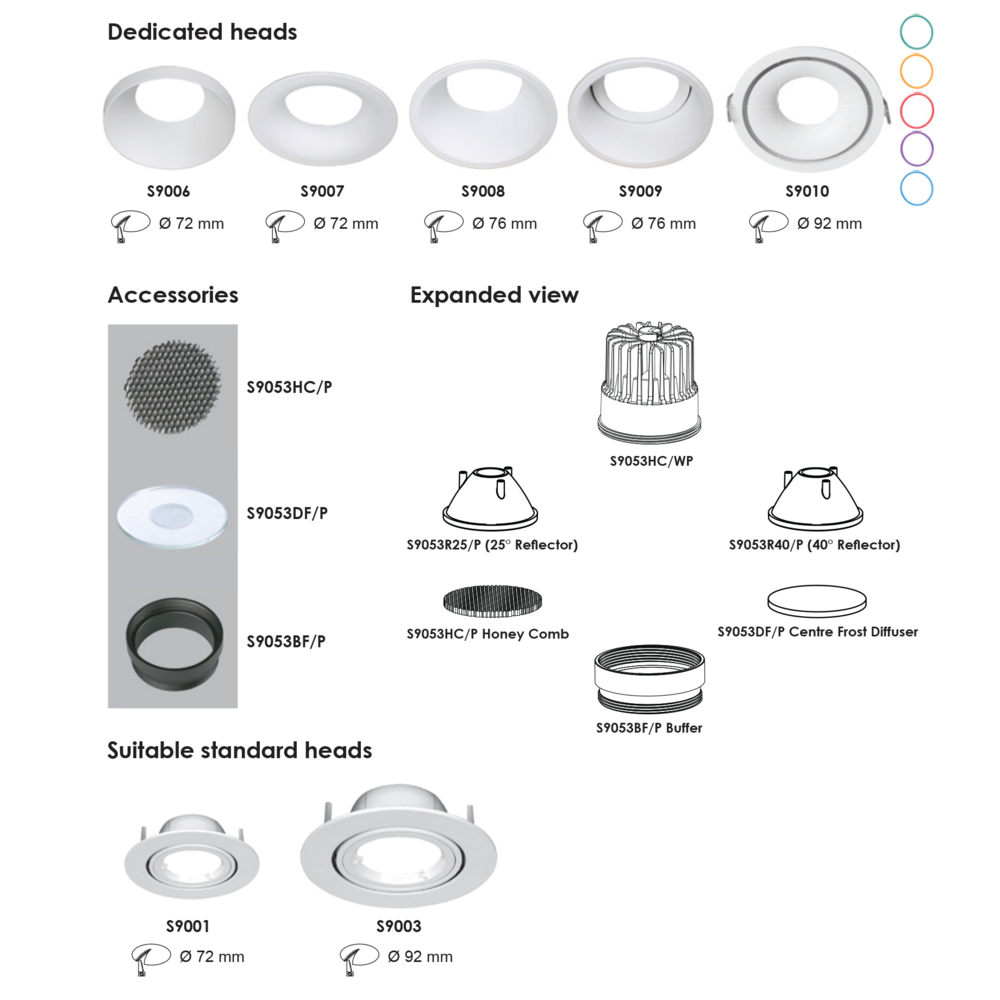

- ACCESSORIES - S9053HC/P Honey comb, S9053DF/P Centre frost diffuser, S9053BF/P Buffer
Performance
- Dimmable - YES
- Dimmer Type - Trailing edge, optional 1-10V, DALI / DSI, SFI
| Model No. | Input Voltage | Power | Lumens | CCT | Beam Angle | Dimmable | CRI | Body Colour | Cut Out | Diameter | Dim |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S9008HC/WH | 240 | 8 | 620 | 3000 | 60 | YES | 90 | MATT WHITE | 76 | 82 | 80(H) |
| S9008HC/BK | 240 | 8 | 620 | 3000 | 60 | YES | 90 | MATT BLACK | 76 | 82 | 80(H) |
