Description
Application
Ideal for any commercial or industrial interior spaces
Design Specifications
-

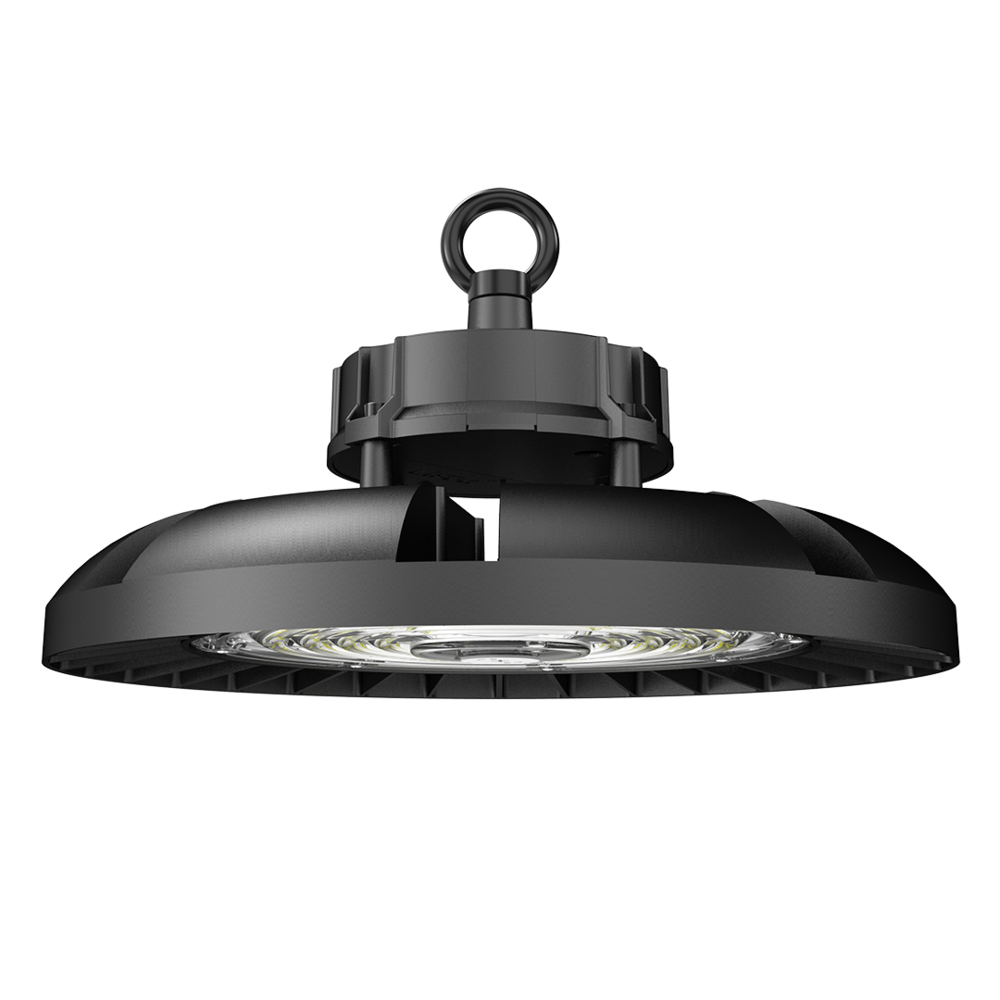

Black powder coated finish, die-cast aluminium body, super low profile design
-
Dimmable 1-10V, selectable power 90/120/150W and 120/160/200W with selectable CCT 3000/4000/5000K
-

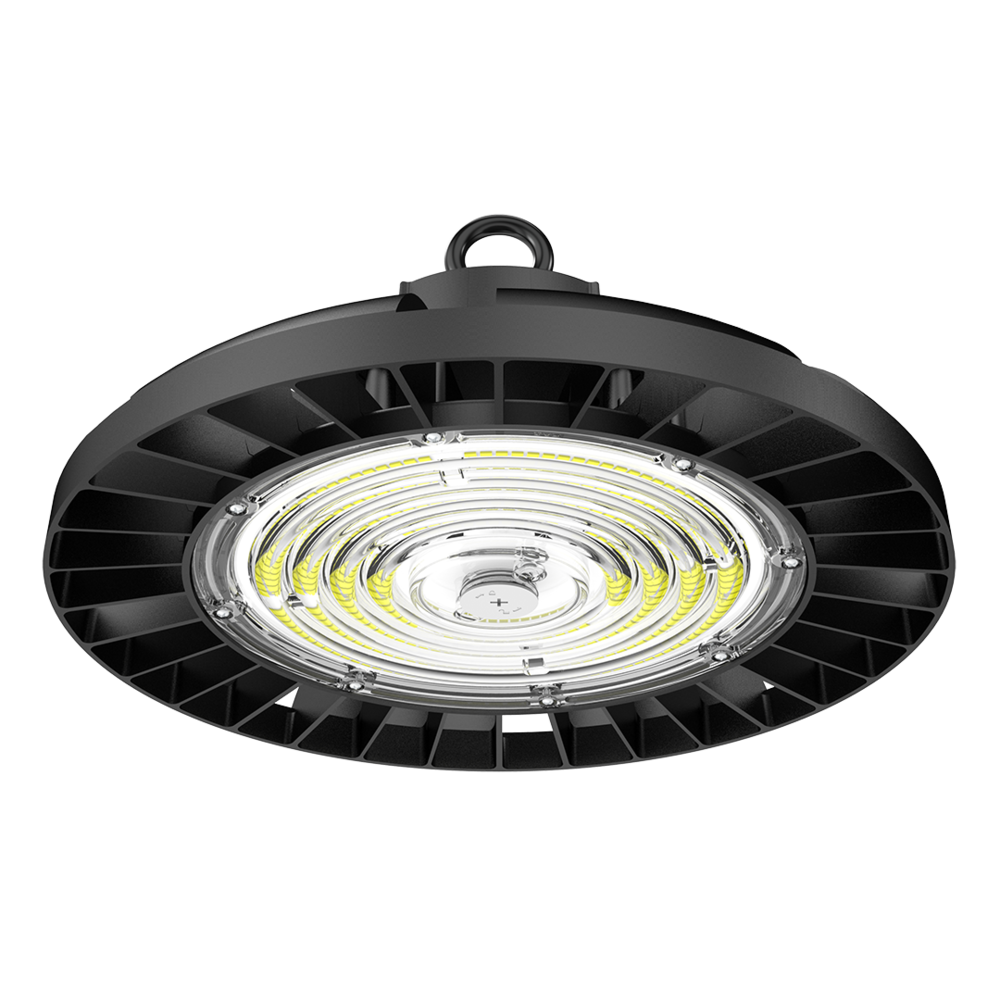

High efficiency LED optics, clear polycarbonate lens, 90° beam distribution, SDCM <5, 200lm/W performance @ 4000K
-

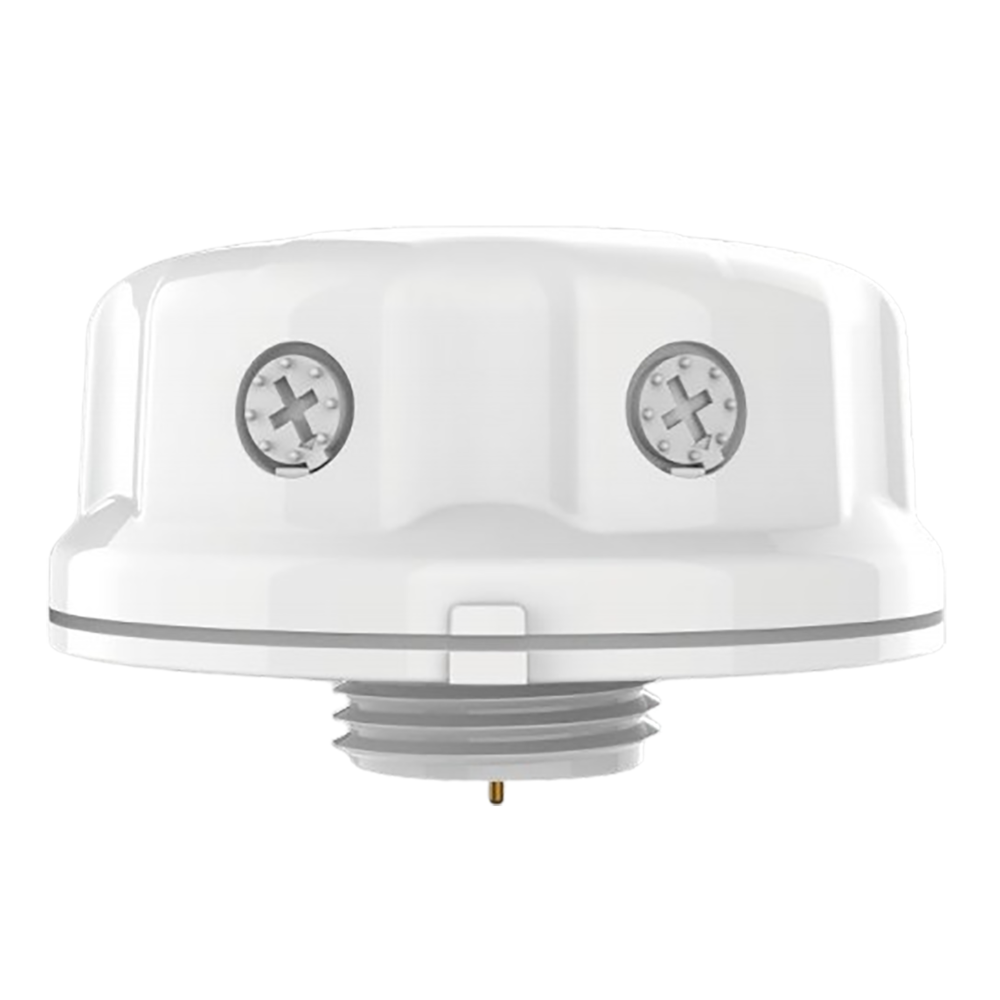

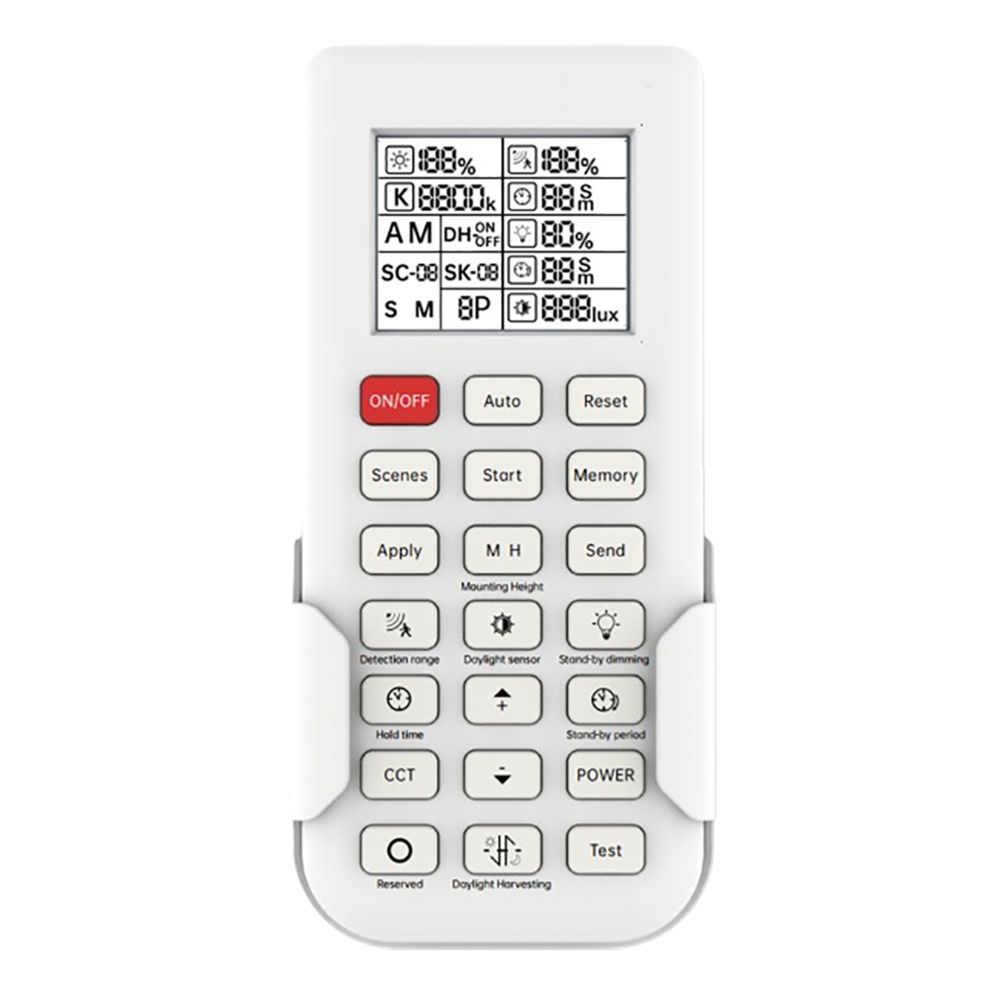

Optional plug and play motion and daylight harvesting sensor available, with remote control functions
-
Integral 1-10V dimmable LED driver with surge protection, complete with flex and plug for easy installation
-
Robust design IP65 and IK08 rated, stainless safety lanyard included
Performance
- Dimmable - YES
- Dimmer Type - 1-10V, optional SAL DALI (1) addressable signal converter
- In Built Sensor - OPTIONAL
| Model No. | Input Voltage | Power | Multiple Wattage | Lumens | Beam Angle | CCT | CRI | Body Colour | Diameter | Dim |
|---|---|---|---|---|---|---|---|---|---|---|
| SHB23MP150TC2 | 240 | 150 | 90/120/150 | 27500/30000/28300 | 90 | 3000/4000/5000 | 70 | BLACK | 280 | 170(H) |
| SHB23MP200TC2 | 240 | 200 | 120/160/200 | 36000/40000/37200 | 90 | 3000/4000/5000 | 70 | BLACK | 320 | 165(H) |
DOWNLOADS
| DATASHEET |  |
