Description
Application
Ideal for any commercial or industrial interior spaces
Design Specifications
-

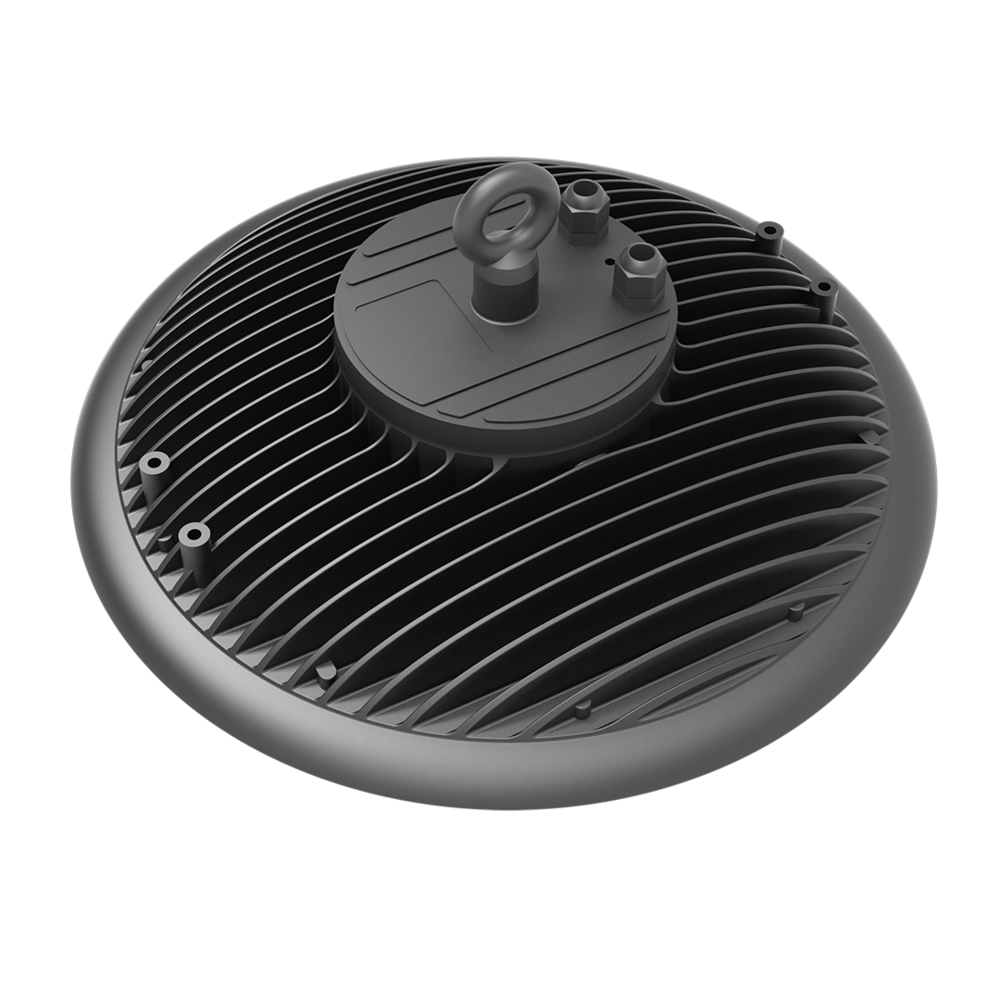

Die-cast aluminium body, super low profile design
-
Black powder coated finish
-
High efficiency LED optics, clear polycarbonate lens, 90° beam distribution
-

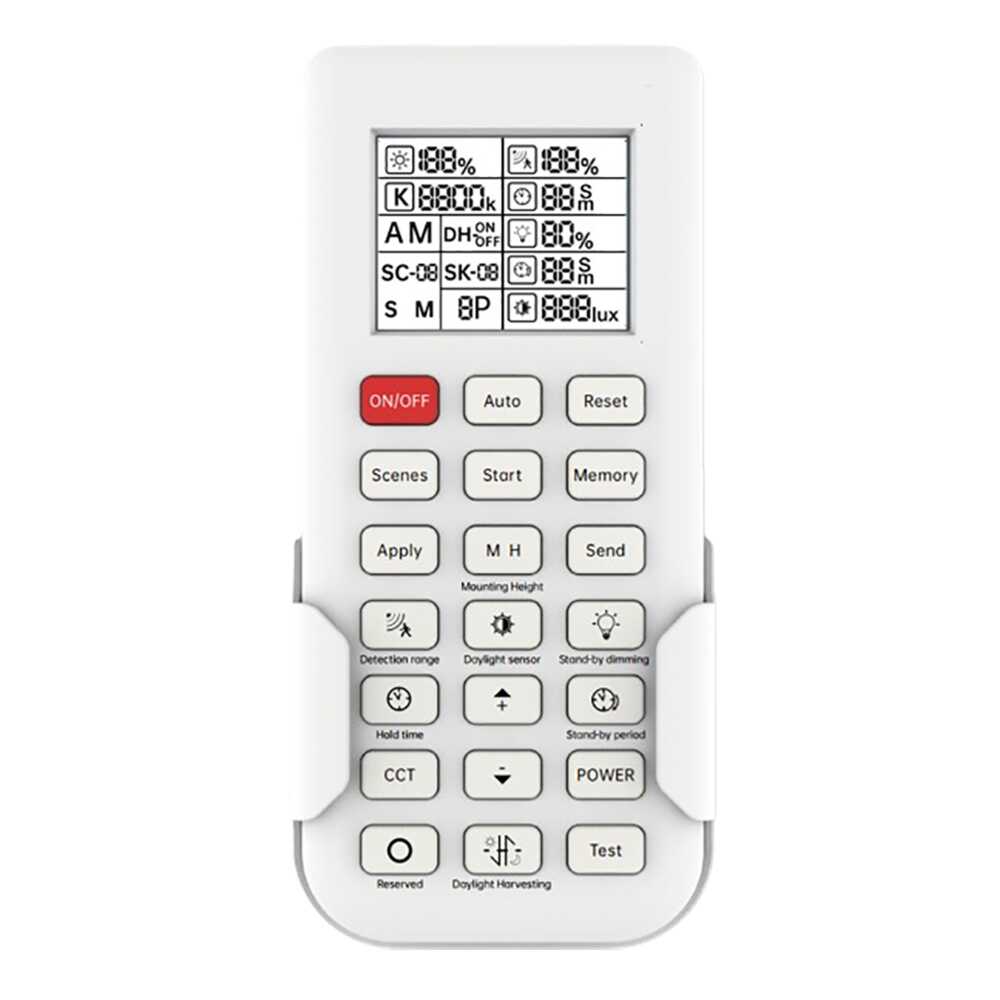

Optional plug and play motion and daylight harvesting sensor available (SHB2X/CS and remote control SHB2XS/RC)
-
Integral 1-10V dimmable LED driver with surge protection, complete with flex and plug for easy installation
-
Robust design IP66 and IK08 rated
Performance
- Dimmable - YES
- Dimmer Type - 1-10V
- In Built Sensor - OPTIONAL
| Model No. | Input Voltage | Power | Multiple Wattage | Lumens | Beam Angle | CCT | CRI | Body Colour | Diameter | Dim |
|---|---|---|---|---|---|---|---|---|---|---|
| SHB23MP150TC2 | 240 | 150 | 90/120/150 | 27500/30000/28300 | 90 | 3000/4000/5000 | 70 | BLACK | 280 | 170(H) |
| SHB23MP200TC2 | 240 | 200 | 120/160/200 | 36000/40000/37200 | 90 | 3000/4000/5000 | 70 | BLACK | 320 | 165(H) |
| SHB2X/CS | WHITE | |||||||||
| SHB2XS/RC | WHITE |
