Description
Application

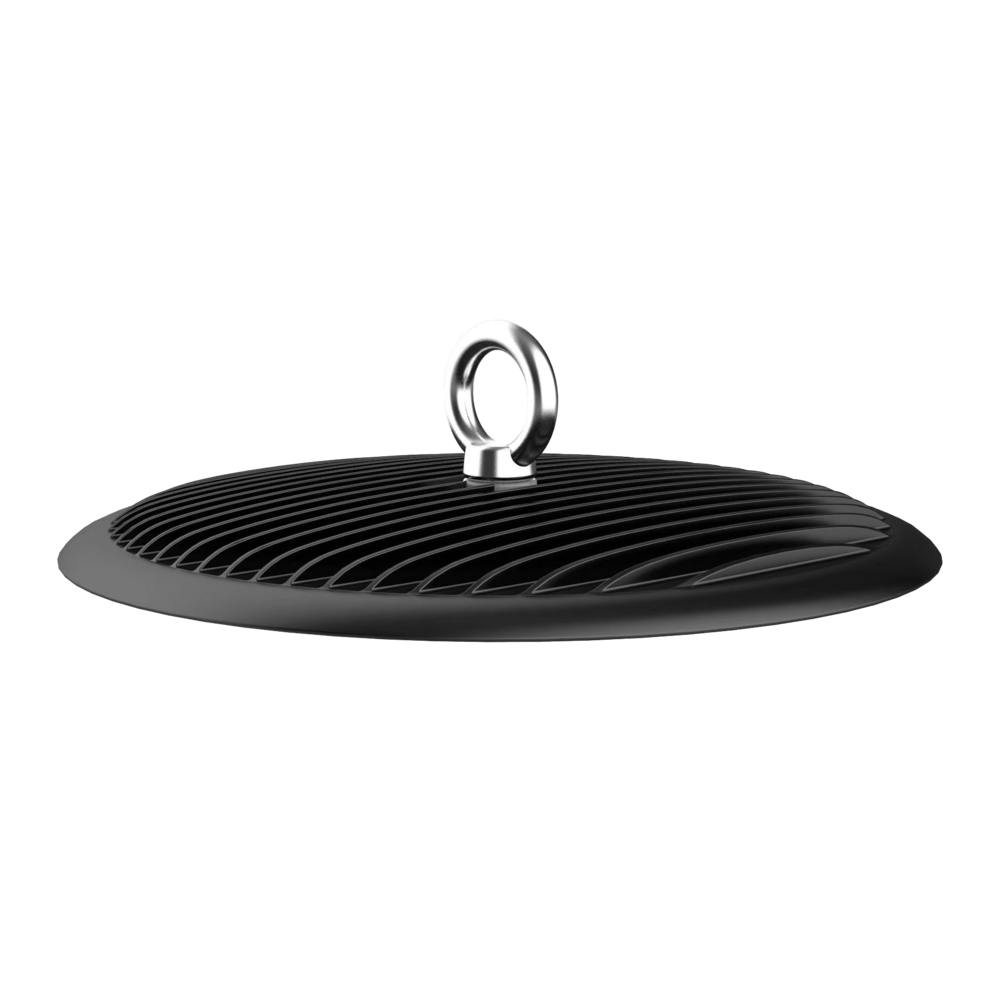

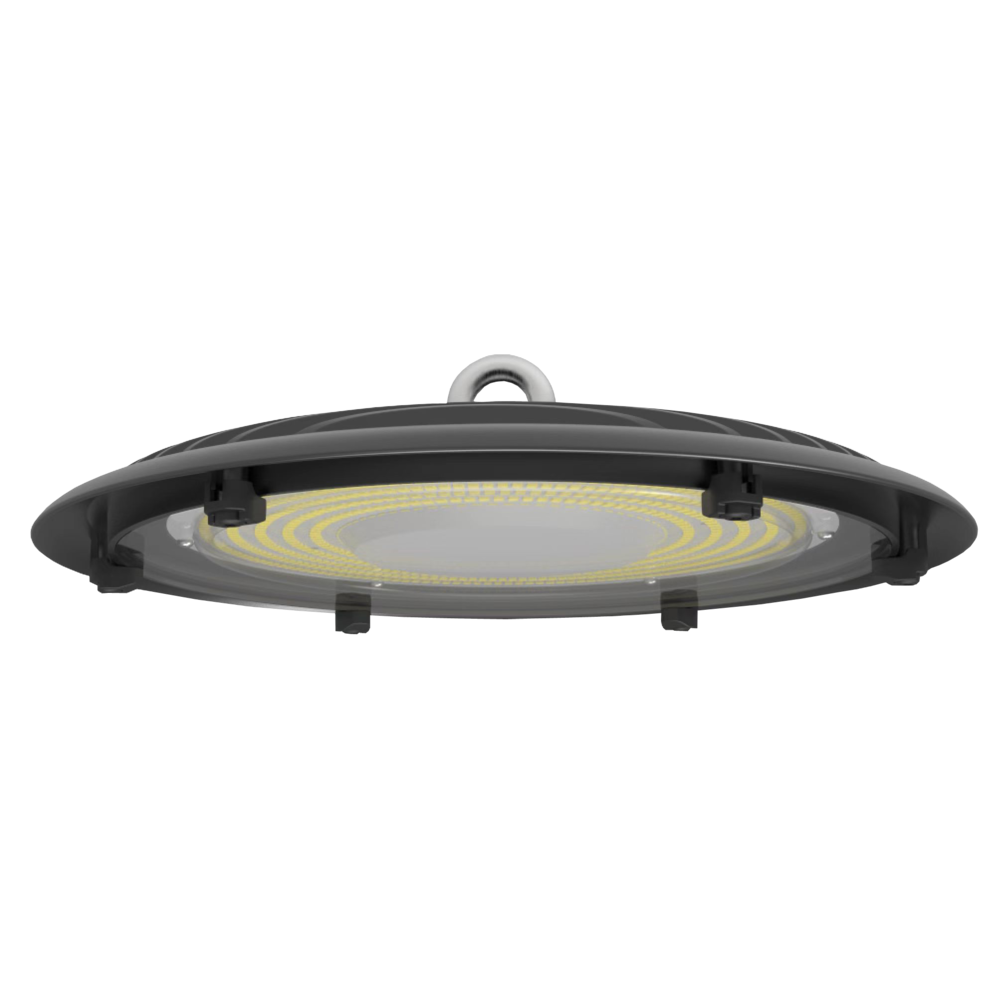

Super low profile LED highbay, ideal for commerical or industrial warehouse applications
Design Specifications
-
Integral (non-dimmable) control gear with 4KV surge protection, choice of 100, 150 or 200 watt models
-
Slimline, low profile die-cast aluminium body profile
-
IP65/IK06 design protection, tempered glass diffuser
-
High efficiency LED optics, with an impressive > 118 lm/W
-
CRI > 80, 120 degree beam distribution
-
Plug and play flex and plug included for faster installation
Performance
- Dimmable - NO
| Model No. | Input Voltage | Power | Lumens | Beam Angle | CCT | CRI | Body Colour | Diameter | Dim | Mass | IPART |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SHB27/100NDL | 240 | 100 | 12000 | 120 | 5000 | 80 | BLACK | 303 | 81(H) | 1.61 | N/A |
| SHB27/150NDL | 240 | 150 | 17700 | 120 | 5000 | 80 | BLACK | 303 | 91(H) | 2 | N/A |
| SHB27/200NDL | 240 | 200 | 24000 | 120 | 5000 | 80 | BLACK | 303 | 101(H) | 2.29 | N/A |
