Description
Application
Ideal for any commercial or industrial interior spaces
Design Specifications
-
Die-cast aluminium body, super low profile design
-
Black powder coated finish
-
High efficiency LED optics, clear polycarbonate lens, 90° beam distribution
-
Optional plug and play motion and daylight harvesting sensor available (SHB2X/CS and remote control SHB2XS/RC)
-
Integral 1-10V dimmable LED driver with surge protection, complete with flex and plug for easy installation
-
Robust design IP66 and IK08 rated
Performance
- Dimmable - YES
- Dimmer Type - 1-10V, optional SAL DALI (1) addressable signal converter
- In Built Sensor - OPTIONAL
| Model No. | Input Voltage | Power | Lumens | Beam Angle | CCT | CRI | Body Colour | Diameter | Dim | Mass |
|---|---|---|---|---|---|---|---|---|---|---|
| SHB27S100NDL | 240 | 100 | 15000 | 90 | 5000 | 80 | BLACK | 260 | 129(H) | 1.5 |
| SHB27S150NDL | 240 | 150 | 22500 | 90 | 5000 | 80 | BLACK | 289 | 129(H) | 1.8 |
| SHB27S200NDL | 240 | 200 | 30000 | 90 | 5000 | 80 | BLACK | 328 | 129(H) | 2.4 |

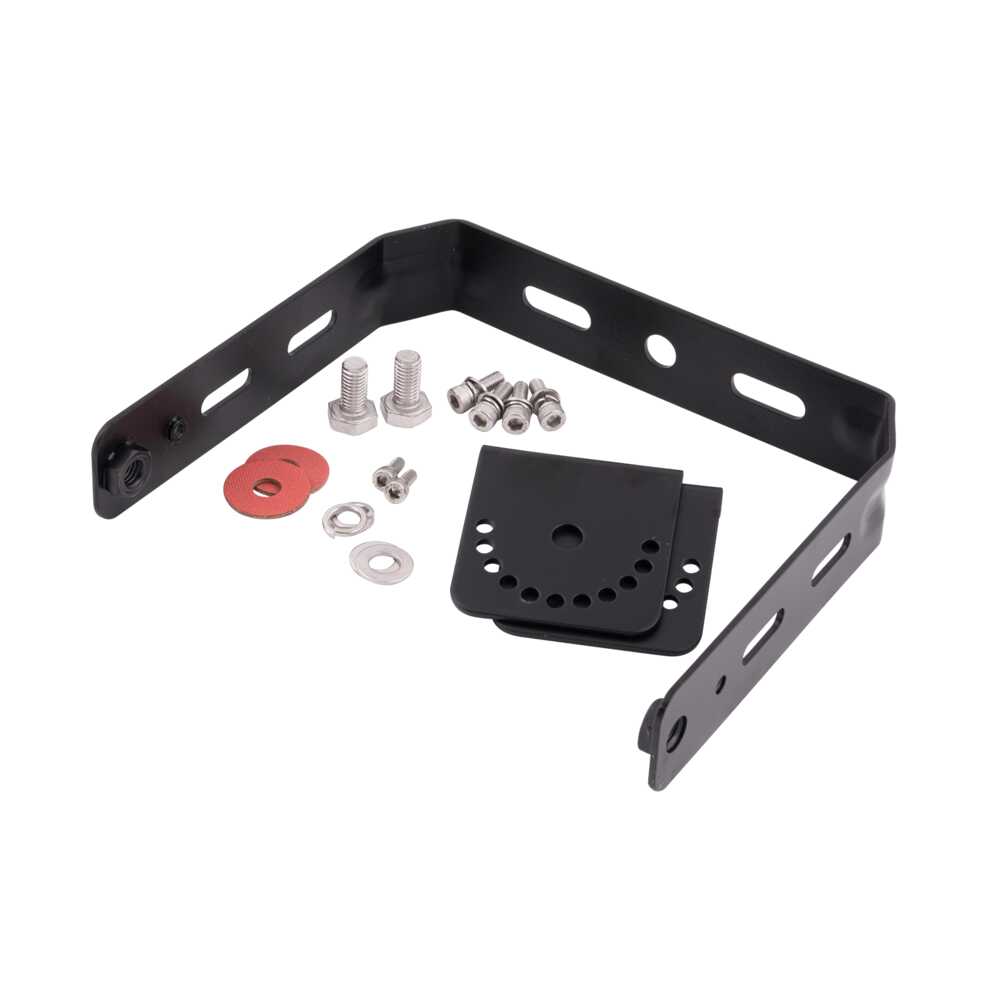

| SHB27S/150PLB | BLACK | 220(W) x 185(H) | ||||||||

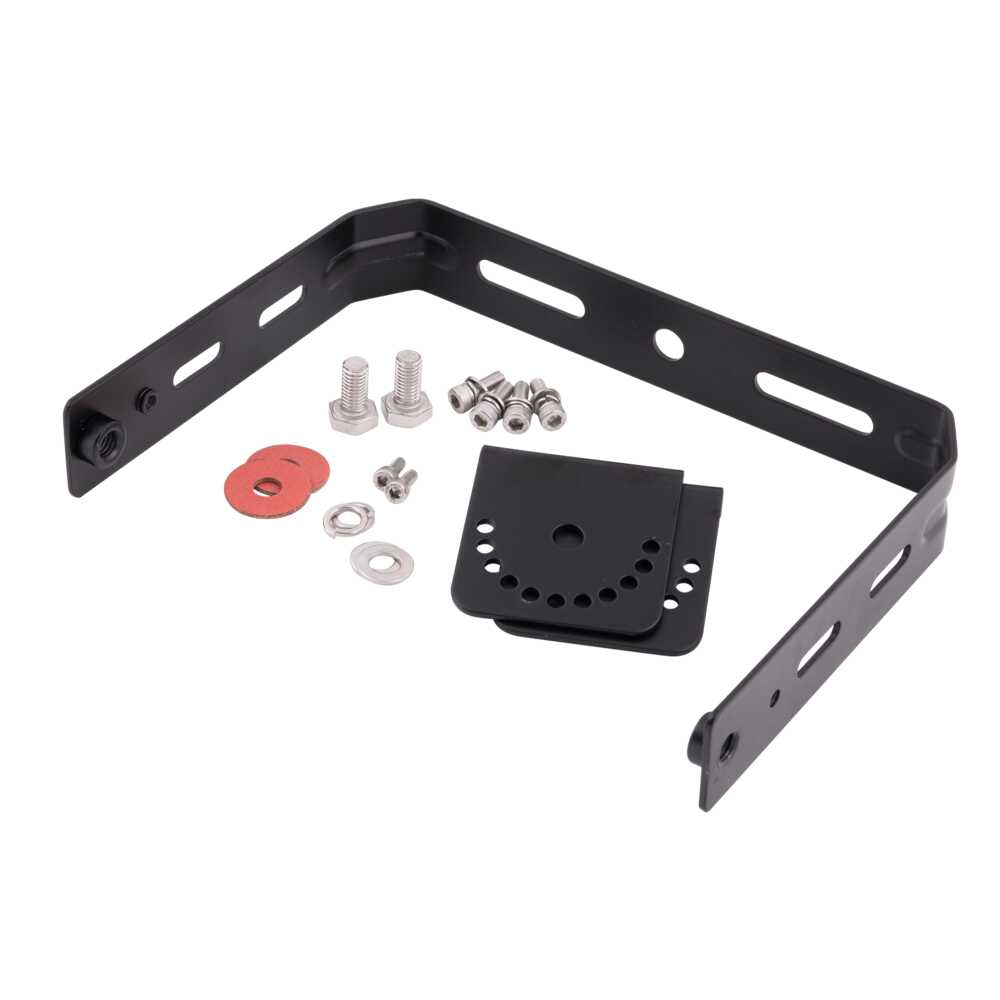

| SHB27S/200PLB | BLACK | 250(W) x 185(H) | ||||||||

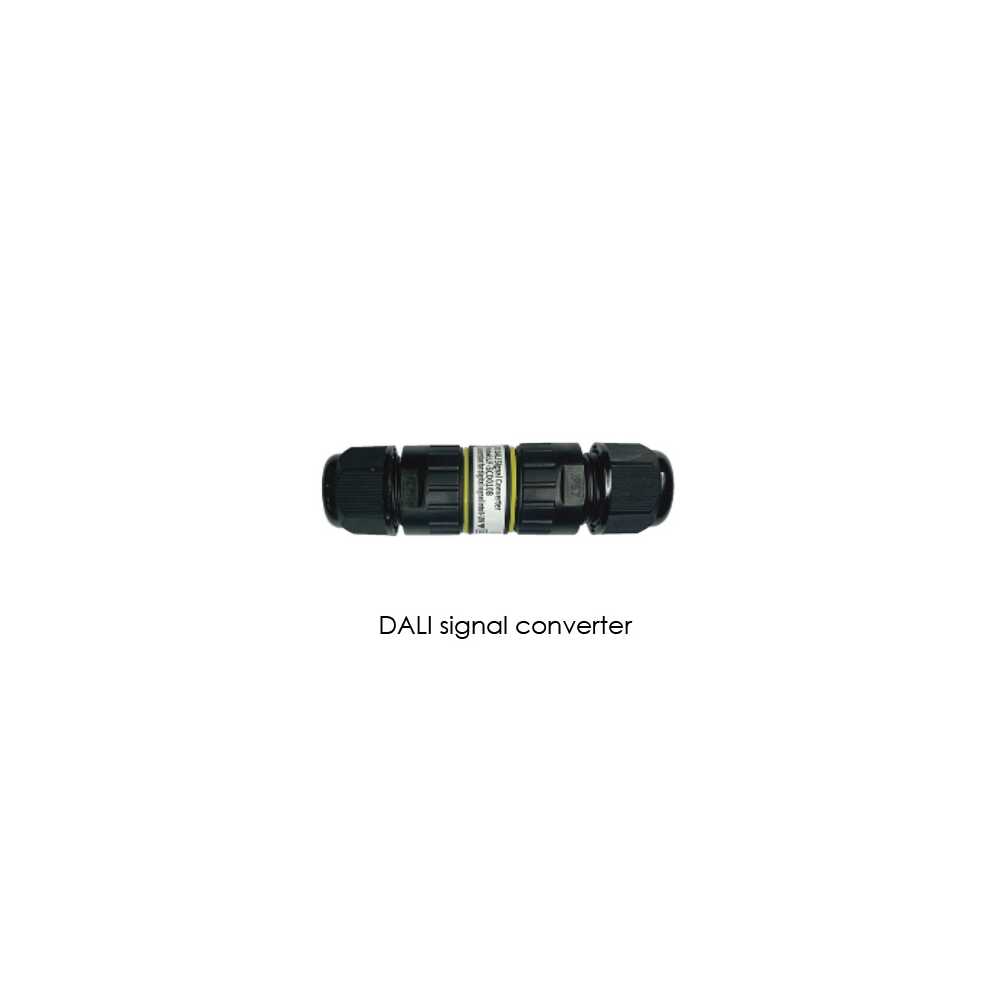

| LF-SAD010B | DALI SIGNAL CONVERTER | 0.06 |
