Description

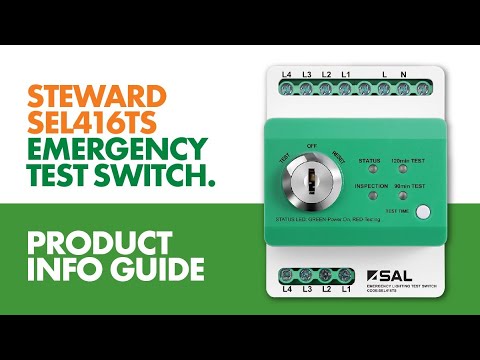

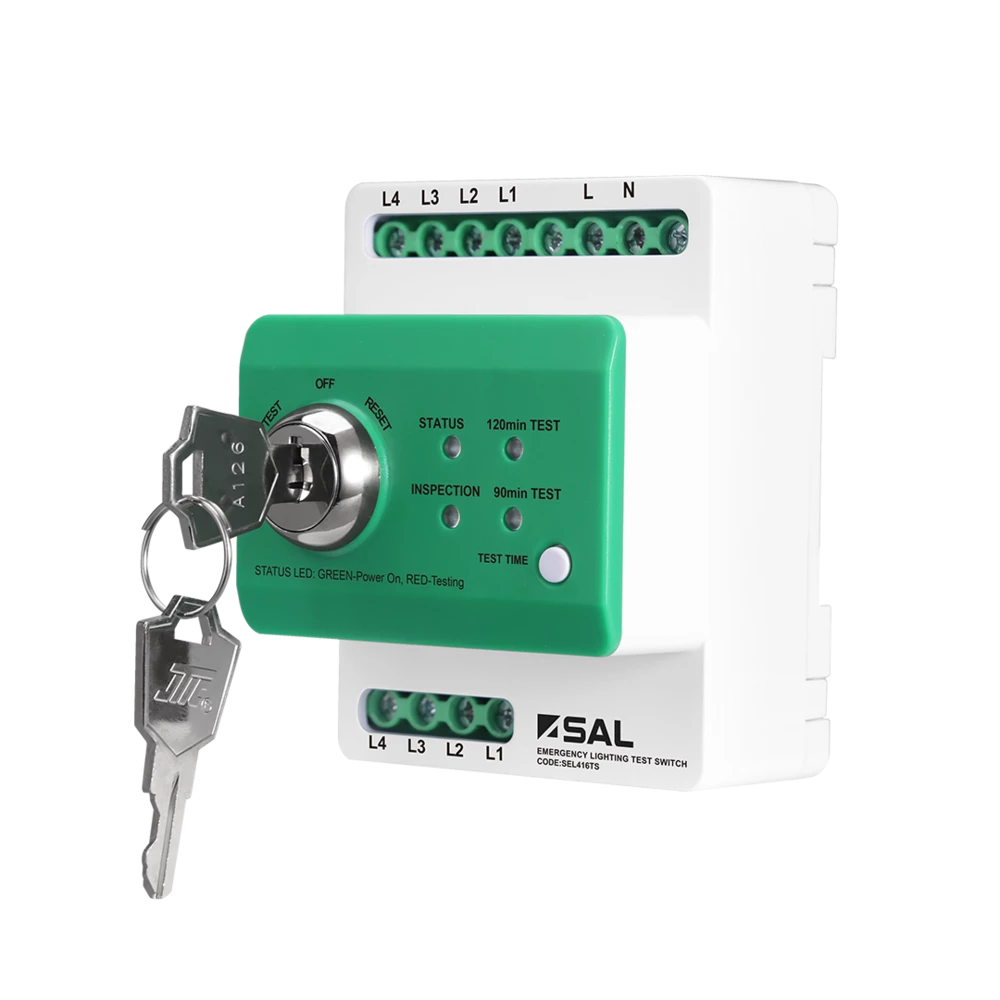

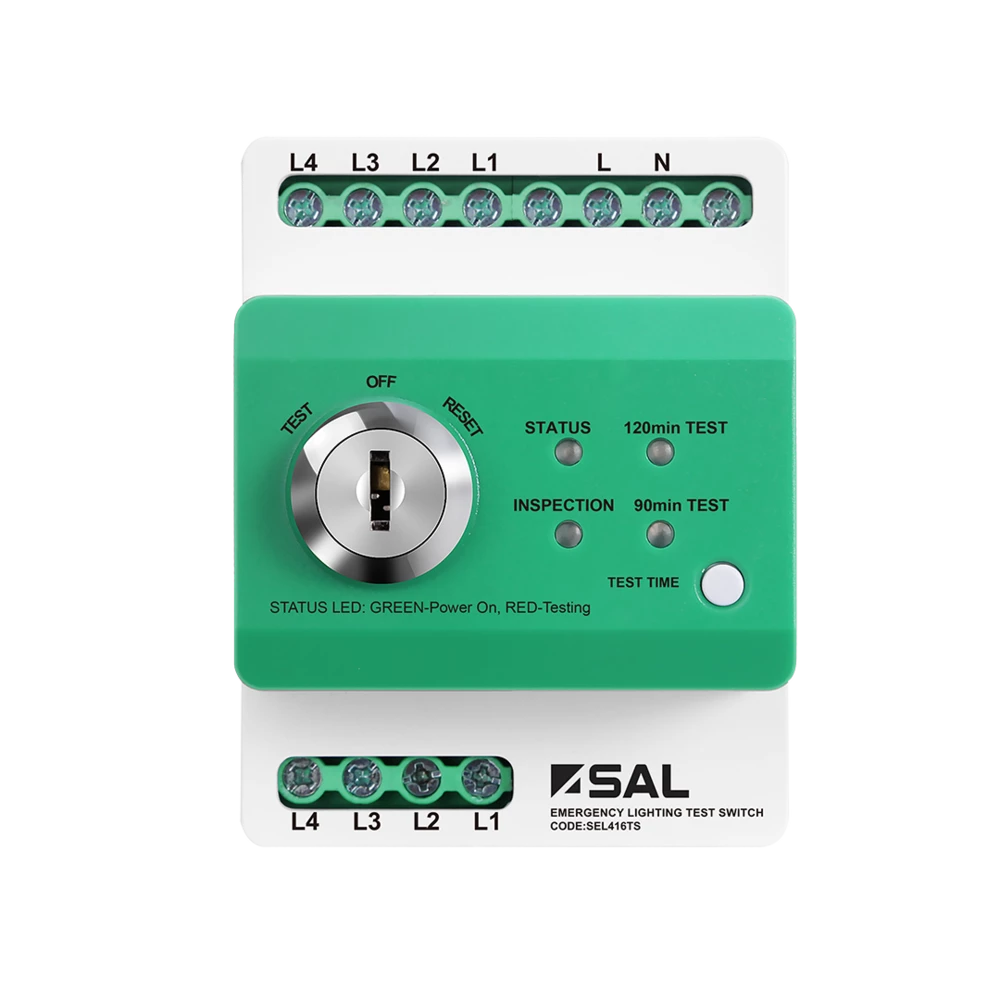

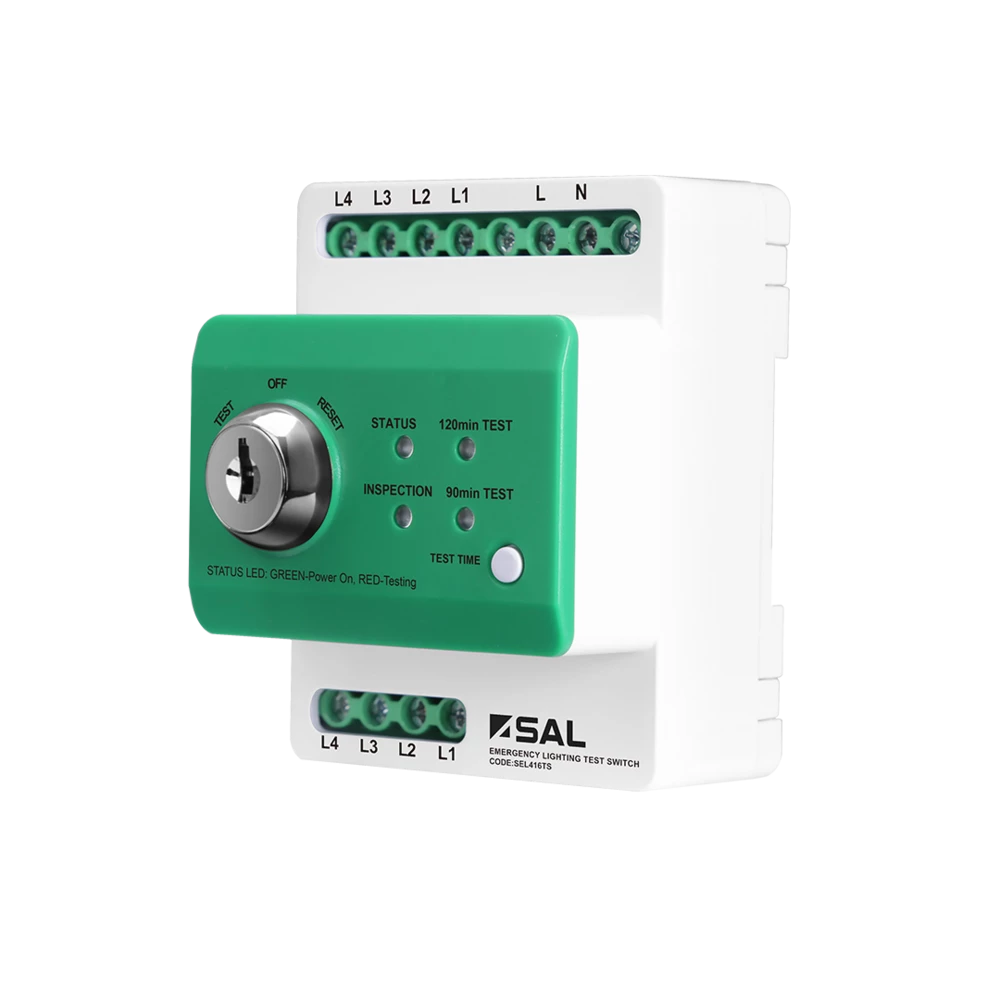

The SAL STEWARD SEL416TS is a four-pole emergency lighting test switch for a 35mm DIN rail. It provides keyed 90-minute or 120-minute tests with LED indication, controlling up to 16A per circuit. Its 2W rating is relay consumption, not a lighting output or battery runtime.
Design Specifications
- Four independently switched circuits; 16A per circuit
- 90-minute and 120-minute test periods
- Lockable key control with LED indicators
- 35mm DIN rail mounting; IP20
Performance
| Specification | Detail |
|---|---|
| Product code | SEL416TS |
| Input voltage | 240V AC |
| IP rating | IP20 |
| Finish | Green |
| Mounting | 35mm DIN Rail |
| SEL416TS | 2W; 65(L) x 75(W) x 60(H)mm |
| Contact rating | 4 poles; 16A per circuit |
| Test periods | 90 or 120 minutes; 20-minute extension |
| Terminals | Up to 4mm² |
| Electrical class | Class II |
| Battery runtime | Not applicable — mains-powered test switch |
| Warranty | 3-year commercial product warranty |
