Description
Application

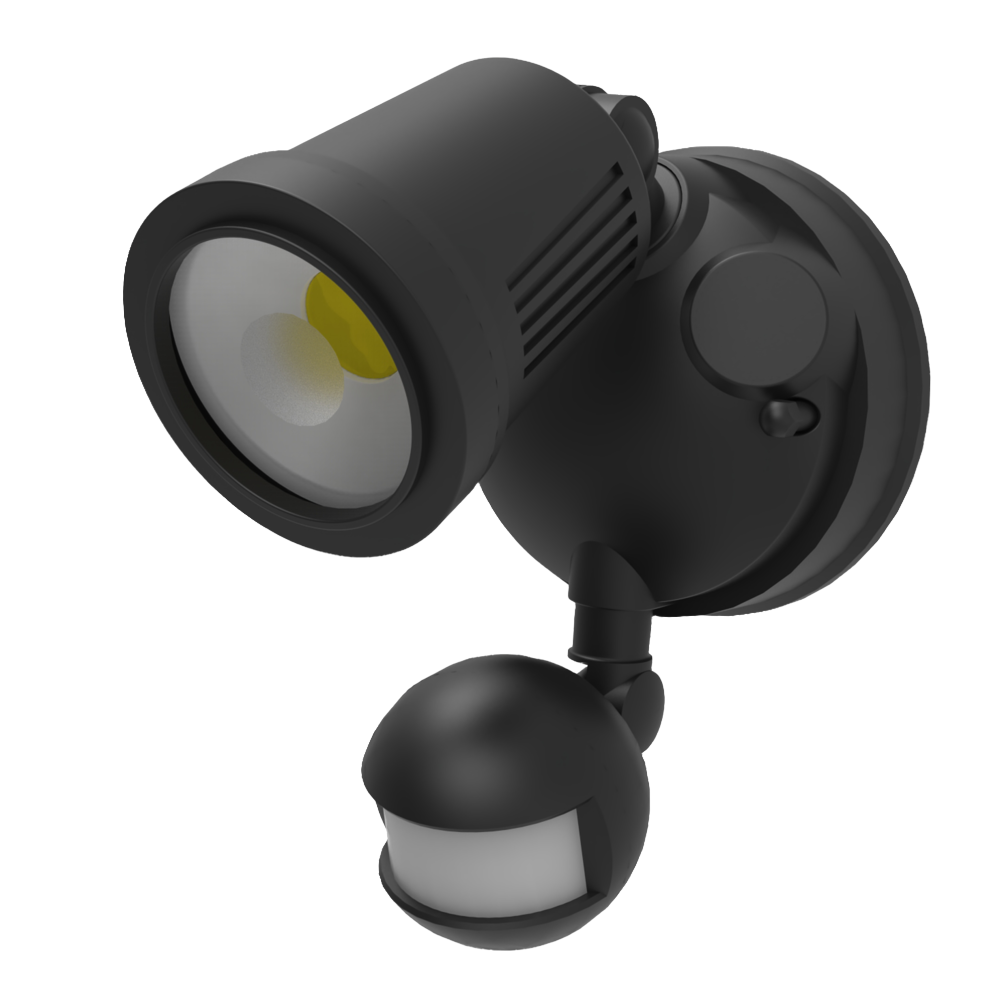

A stylish solution for residential exterior spaces, great for security
Design Specifications
-
Robust adjustable black or white aluminium optical head assembly with quick connect termination
-
Durable polycarbonate mounting base
-
Tempered glass lens, beam distribution 120° per head
-
Selectable CCT 3000K/4000K/5700K
-
Integral non-dimmable LED driver
-
Integral PIR motion sensor, detection distance 10m at 2.0hm, detection angle 180°, manual over-ride function, time and light level adjustments see installation instructions, sensor control dials must face downwards.
Performance
- In Built Sensor - YES
- Sensor Type - PIR
| Model No. | Input Voltage | Power | Lumens | CCT | CRI | Beam Angle | Body Colour | Dim | Diameter | Mass |
|---|---|---|---|---|---|---|---|---|---|---|
| SES7070/1TC/BK | 240 | 12 | 950/1150/1050 | 3000/4000/5700 | 80 | 120 | BLACK | 115(W) x 180(D) | 115 | 0.52 |
| SES7070/1TC/WH | 240 | 12 | 1200/1300/1250 | 3000/4000/5700 | 80 | 120 | WHITE | 115(W) x 180(D) | 115 |
