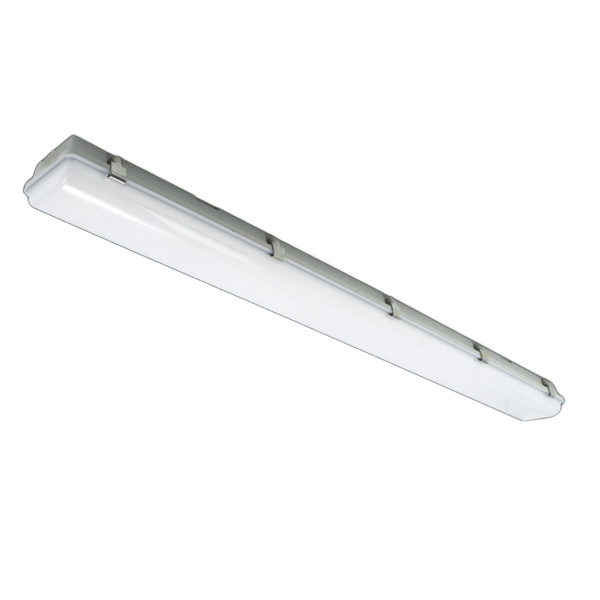

SAL SOL SL9726TC/DP LED Weatherproof Tri- Grey 10/50W 240V IP65 - SL9726TC/DP

Save $6.19

SAL LightingSKU: SL9726/20TC/DP

Wattage: 10/20W

Price:

$55.67 $61.86

Tax included Shipping calculated at checkout

Quantity:

Commercial or industrial utility applications requiring IP65 and IK08 performance

Colour temperature selectable by DIP switch, 3000K /4000K /6000K
Rounded profile design, robust polycarbonate body and UV stabilized polycarbonate diffuser
Stainless steel clips & screws, 20mm cable gland entry
Integral constant current non-dimmable, DUAL POWER LED driver, 10/20, 20/42 or 30/50 watt models.
StandBy options have fixed driver power.
Product selections compliant to AS/NZS2293 Emergency Lighting & Exit Signs are located in the interior and exterior emergency sections of this web catalogue
Accessories included - PVC cable glands and suspension brackets. Installation types - Surface mount (standard) or if Suspended (a suspension kit is required), corridorSTANDBY options available

Dimmable - OPTIONAL

Dimmer Type - Trailing edge, 1-10V, DALI, DSI

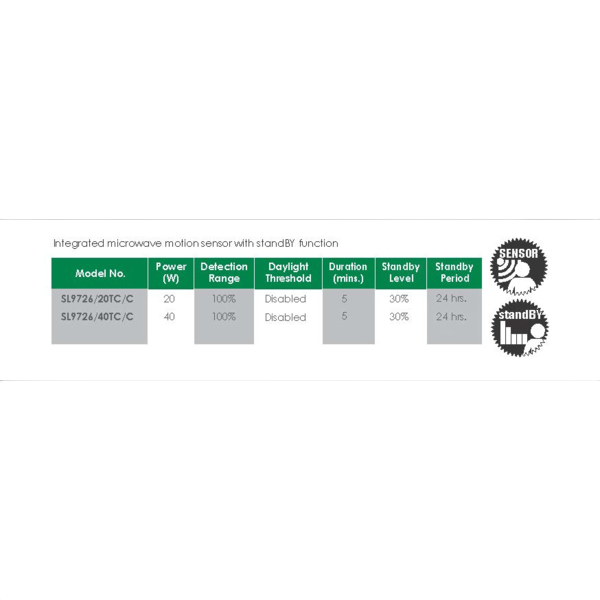

In Built Sensor - OPTIONAL

Sensor Type - MICROWAVE

Model No.	Input Voltage	Power	Multiple Wattage	Lumens	CCT	CRI	Beam Angle	Body Colour	Dim	IPART	VEET	REES
SL9726/20TC/DP	240	20	10/20	2040/2300/2200	3000/4000/6000	80	120	GREY	642(L) x 118(W) x 77(H)	YES	YES	YES
SL9726/40TC/DP	240	42	20/42	4370/4990/4720	3000/4000/6000	80	120	GREY	1251(L) x 118(W) x 77(H)	YES	YES	YES
SL9726/20TC/C	240	20		1800	3000/4000/6000	80	120	GREY	642(L) x 118(W) x 77(H)
SL9726/40TC/C	240	40		3700	3000/4000/6000	80	120	GREY	1251(L) x 118(W) x 77(H)
SL9726/40TC/S	240	42	20/42	4370/4990/4720	3000/4000/6000	80	120	GREY	1251(L) x 118(W) x 77(H)
SL9726/50TC/DP	240	50	30/50	5480/6070/5920	3000/4000/6000	80	120	GREY	1551(L) x 118(W) x 77(H)

DOWNLOADS

DATASHEET
INSTALLATION GUIDE
