Description
Application
Commercial or industrial ceiling or suspended mount applications requiring IP65 and IK08 performance
Design Specifications
-
Selectable CCT 3000K /4000K /5700K
-
Rounded profile design, robust polycarbonate body, clips and UV stabilized polycarbonate diffuser
-
Integral constant current non-dimmable, dual power LED driver, 10/20 or 20/40 watt models
-
Product selections compliant to AS/NZS2293 Emergency Lighting & Exit Signs are located in the interior and exterior emergency sections of this catalogue
-

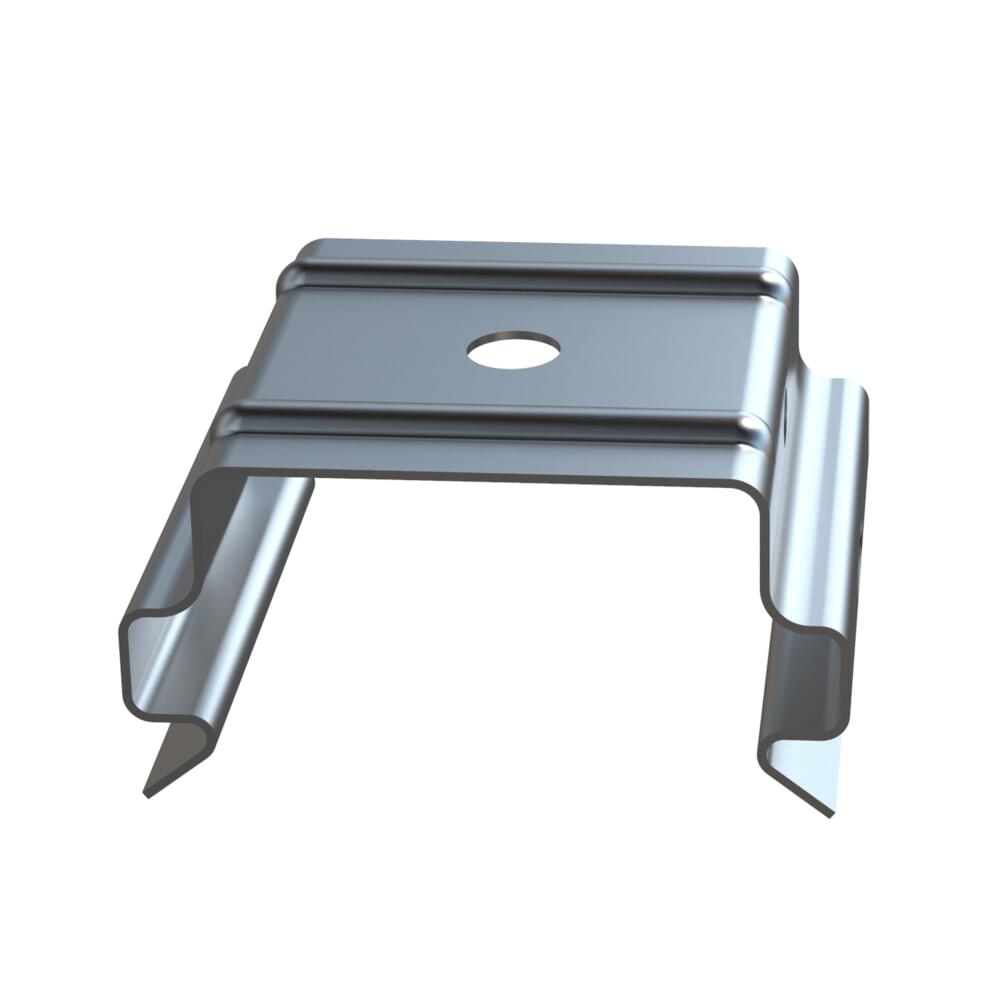

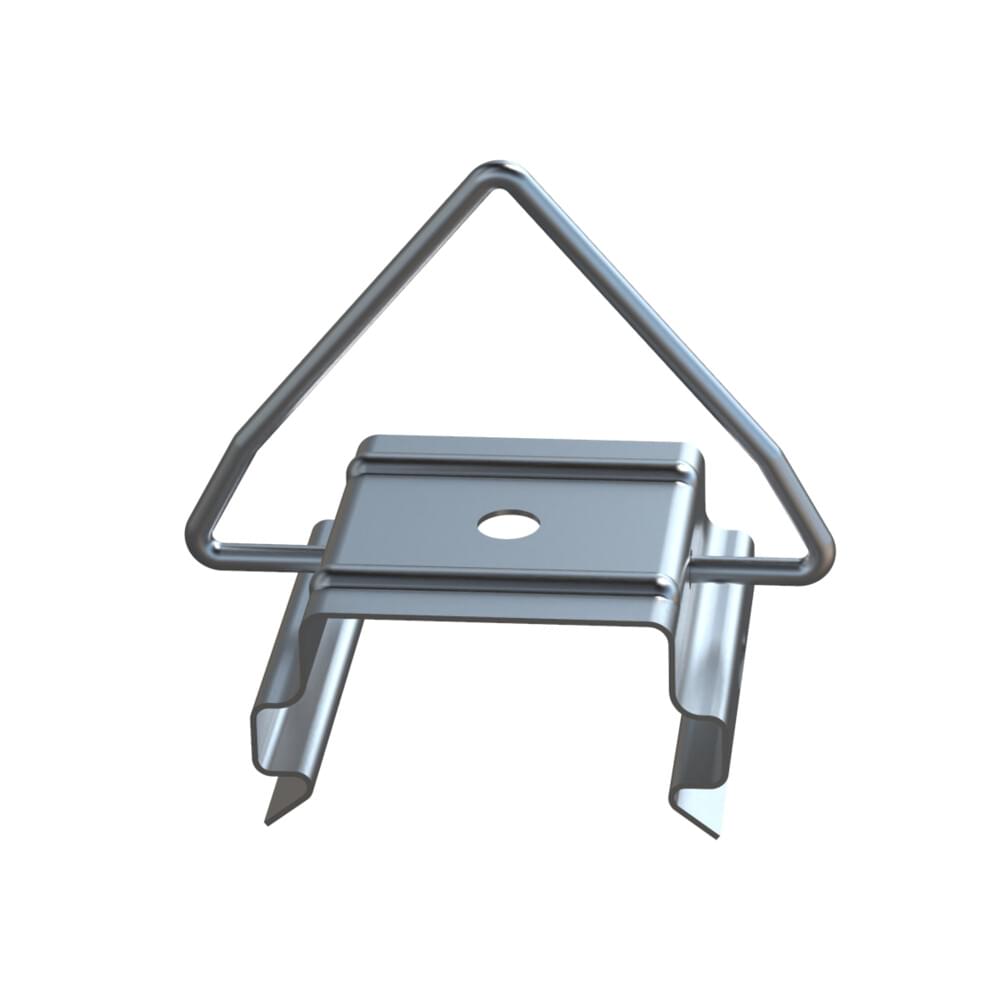

Installation types - Surface mount (standard), if Suspended (two off, SSI1512 wire suspension kits are required).
| Model No. | Input Voltage | Power | Multiple Wattage | Lumens | CRI | CCT | Beam Angle | Body Colour | Dim | IPART | VEET | REES |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SL9725/20TC/DP | 240 | 20 | 10/20 | 2100/2300/2150 | 80 | 3000/4000/5700 | 120 | GREY | 653(L) x 102(W) x 73(H) | N/A | N/A | N/A |
| SL9725/40TC/DP | 240 | 40 | 20/40 | 4100/4500/4200 | 80 | 3000/4000/5700 | 120 | GREY | 1253(L) x 102(W) x 73(H) |
