Description
Application

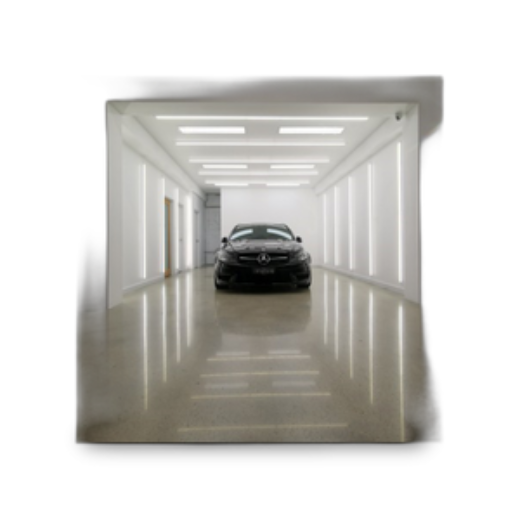

Great for commercial shop spaces, home pantries, walk-in wardrobes
Design Specifications
- Selectable CCT 3000K, 4000K, 5500K, beam distribution 105 degree, CRI > 80
- Polycarbonate body profile and opal diffuser
- Integral constant current non-dimmable driver
- Individual switch control, plug and play flex and plug included

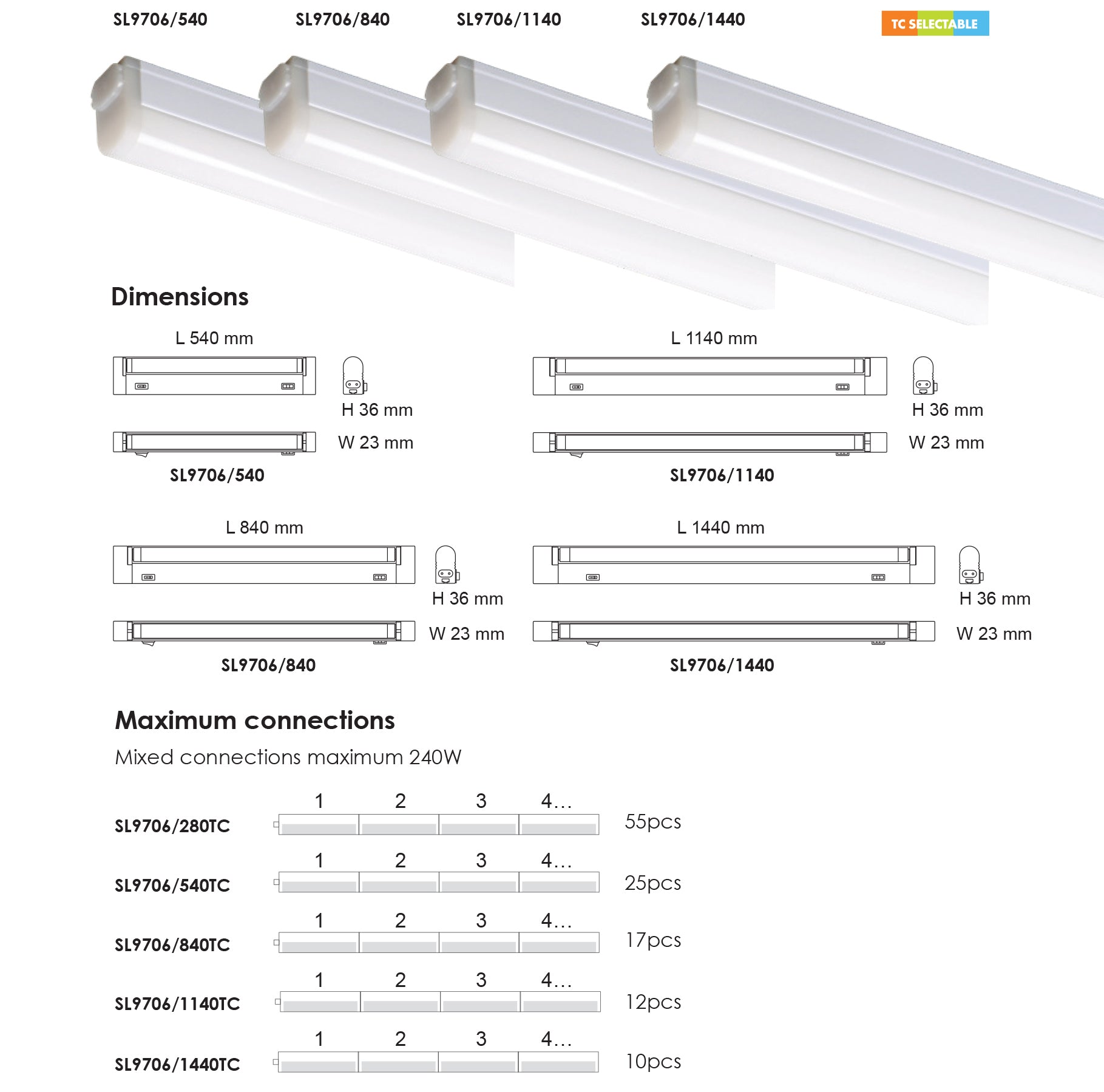

- Maximum connections: 280TC x 55, 540TC x 25, 840TC x 17, 1140TC x 12, 1440TC x 10 UNITS,Maximum mixed connections 240W
- Accessories: SL9706/32CM LINK (L 320mm) SL9706/76CM LINK (L 760 mm)
| Model No. | Description | Input Voltage | Power | Lumens | CCT | CRI | Beam Angle | Dimensions | Body Colour |
| SL9706/280TC | LED LINKABLE 4W 280mm TC | 240 | 4 |
300/380/300 | 3000/4000/5000 | 80 | 105 | 280(L) x 23(W) x 36(H) | WHITE |
| SL9706/540TC | LED LINKABLE 9W 540mm TC | 240 | 9 | 750/800/750 | 3000/4000/5000 | 80 | 105 | 540(L) x 23(W) x 36(H) | WHITE |
| SL9706/840TC | LED LINKABLE 13W 840mm TC | 240 | 13 | 1050/1200/1050 | 3000/4000/5000 | 80 | 105 | 840(L) x 23(W) x 36(H) | WHITE |
| SL9706/1140TC | LED LINKABLE 18W 1140mm TC | 240 | 18 | 1550/1600/1600 | 3000/4000/5000 | 80 | 105 | 1140(L) x 23(W) x 36(H) | WHITE |
| SL9706/1440TC | LED LINKABLE 22W 1440mmTC | 240 | 22 | 1800/2000/1800 | 3000/4000/5000 | 80 | 105 | 1440(L) x 23(W) x 36(H) | WHITE |
