SAL SDD300US Secondary Digital Dimmer Electrical Accessories White 300W 240V IP20 - SDD300US - SAL Lighting
SAL SDD300US Secondary Digital Dimmer Electrical Accessories White 300W 240V IP20 - SDD300US
SAL SDD300US Secondary Digital Dimmer Electrical Accessories White 300W 240V IP20 - SDD300US
Roll over image to zoom in Click on image to zoom
SAL SDD300US Secondary Digital Dimmer Electrical Accessories White 300W 240V IP20 - SDD300US - SAL LightingSAL SDD300US Secondary Digital Dimmer Electrical Accessories White 300W 240V IP20 - SDD300USSAL SDD300US Secondary Digital Dimmer Electrical Accessories White 300W 240V IP20 - SDD300US

SAL SDD300US Secondary Digital Dimmer Electrical Accessories White 300W 240V IP20 - SDD300US

Save $3.02
SAL LightingSKU: SDD300US
No reviews
Price:
$27.21 $30.23

Tax included Shipping calculated at checkout

Description

Application

Smart lighting controls for residential and commercial applications

Design Specifications

  • Push button control trailing or leading edge digital dimming via the MASTER connection

  • Multiple-location dimming by connecting SDD350UM with any number of secondary dimmers SDD300US can be achieved.

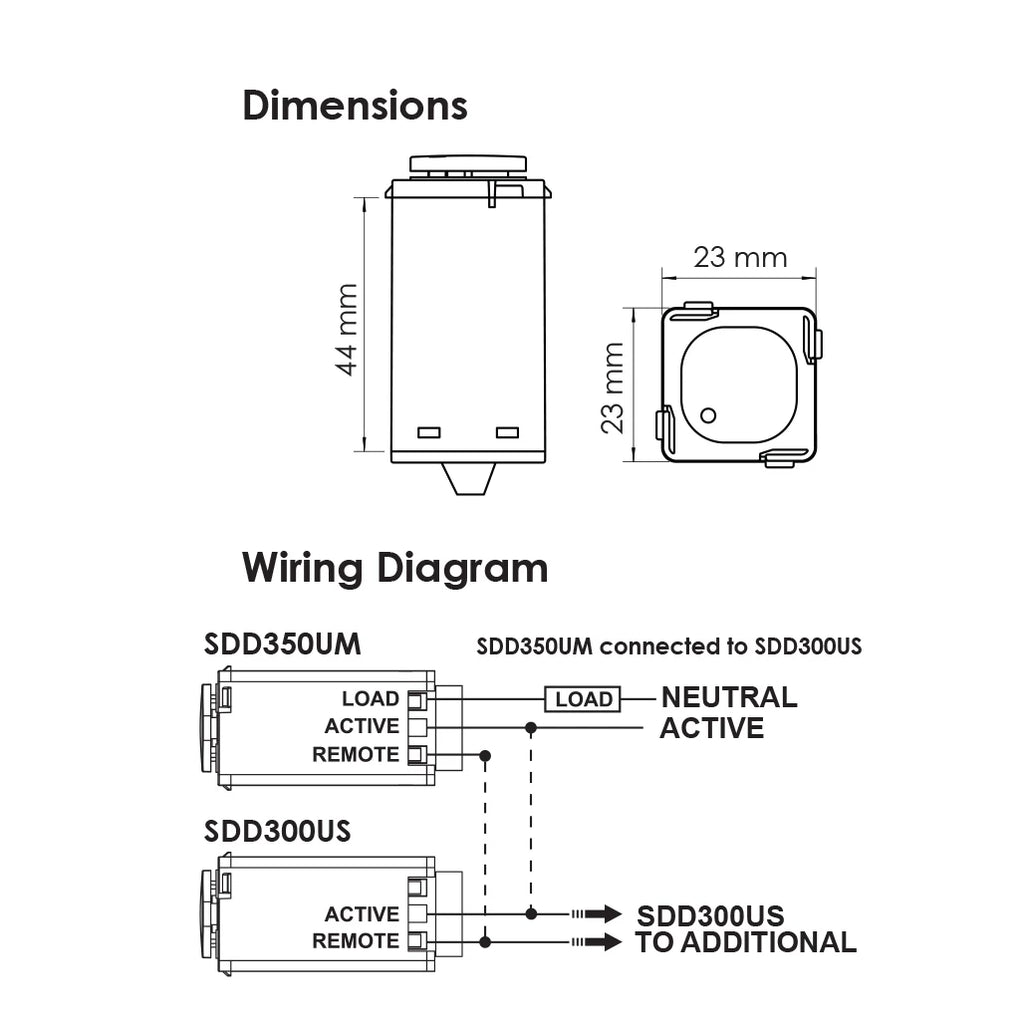

    NOTE: the total length of the remote wire (>0.5mm2) used to interconnect all of the SDD300US should not exceed 50 metres.

  • Fits most popular switch plates

  • Overheating and over current protection, full short circuit protection

  • Programmable minimum brightness level

  • Compliant to AS/NZS60669.2.1

Performance

  • Dimmable - YES
  • Dimmer Type - Secondary switch dimming by SDD350UM only
Model No. Input Voltage Power Dim Body Colour
SDD300US 240 300 44(L) x 23(W) x 23(H) WHITE



DOWNLOADS

DATASHEET
INSTALLATION GUIDE
