Description

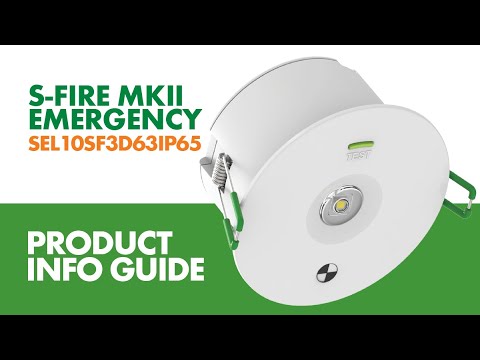

The SAL S-FIRE MKII SEL10SF3D63IP65 is a recessed, non-maintained emergency luminaire with D63 classification. Its white trim fits a 90mm cutout, with a larger adaptor ring supplied for retrofit work. A combined charge indicator and test button supports routine checking.
Design Specifications
- Non-maintained operation
- D63 emergency classification
- 6500K integrated LED
- 90mm cutout; 170mm adaptor ring supplied
Performance
| Specification | Detail |
|---|---|
| Charging power | 1.8W |
| Input | 220–240V AC, 50Hz |
| IP rating | IP65 from below the ceiling in standard mounting configuration |
| Dimensions | Ø104 × 66mm high |
| Battery | LiFePO4; 3.2V, 3.3Ah; SEL10SF3/4BAT |
| Emergency duration | 90 minutes |
| Testing | Combined LED charge-status display and test button |
| Connection | 1.2m flex and 2-pin plug |
| Operating mode | Non-maintained |
| Warranty | 3-year commercial product warranty. |
