Description
Application
Home theatre, decorative feature lighting designs which require smart control.
Design Specifications
-
Designed for extending RGB LED strip lights
-

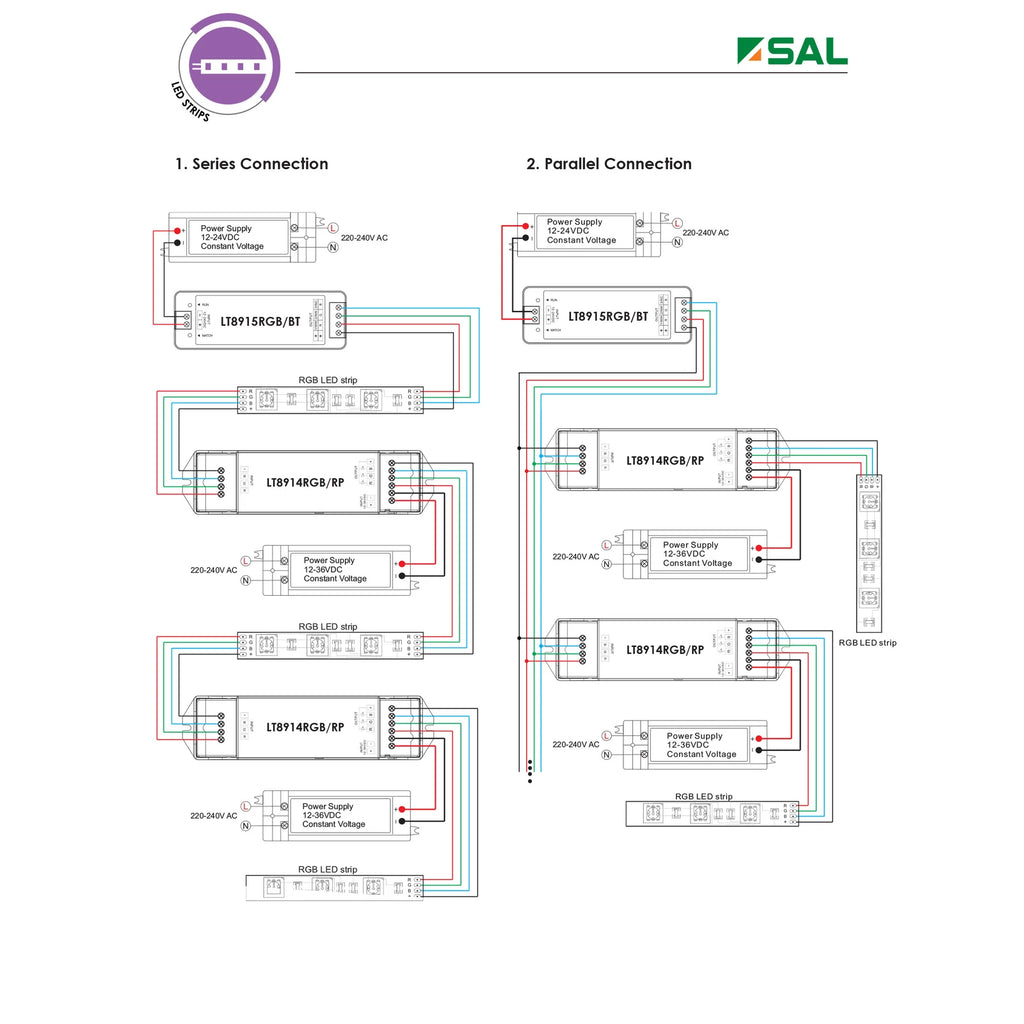

With the repeater, one RGB colour control device controls multiple connections of LED strips
-
Each repeater provides three RGB output channels
-
Each channel has a maximum output current of 6A
-
Input voltage range: 12-36V DC
-
648W maximum power output at 36V
Performance
- Dimmable - NO
| Model No. | Description | Input Voltage | Power | Body Colour | Dim |
|---|---|---|---|---|---|

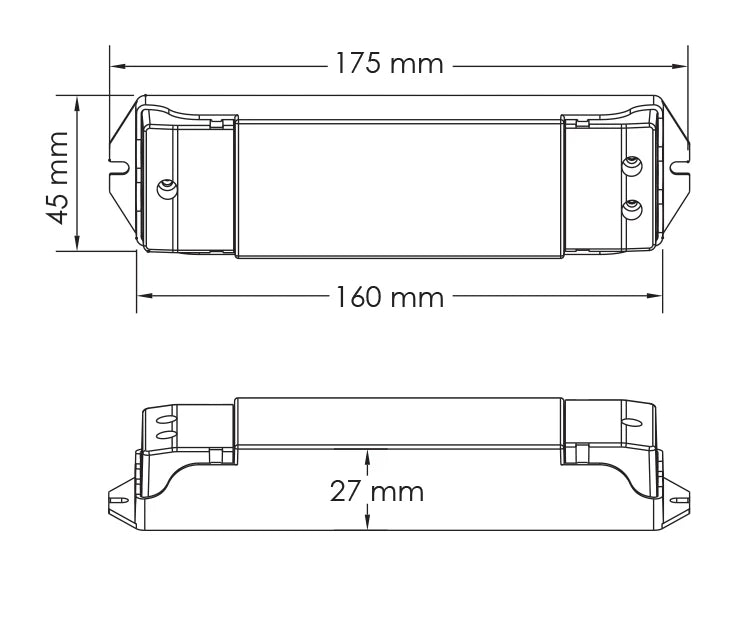

| LT8914RGB/RP | POWER REPEATER | 36 | 648 | WHITE | 175(L) x 45(W) x 27(H) |
