Description

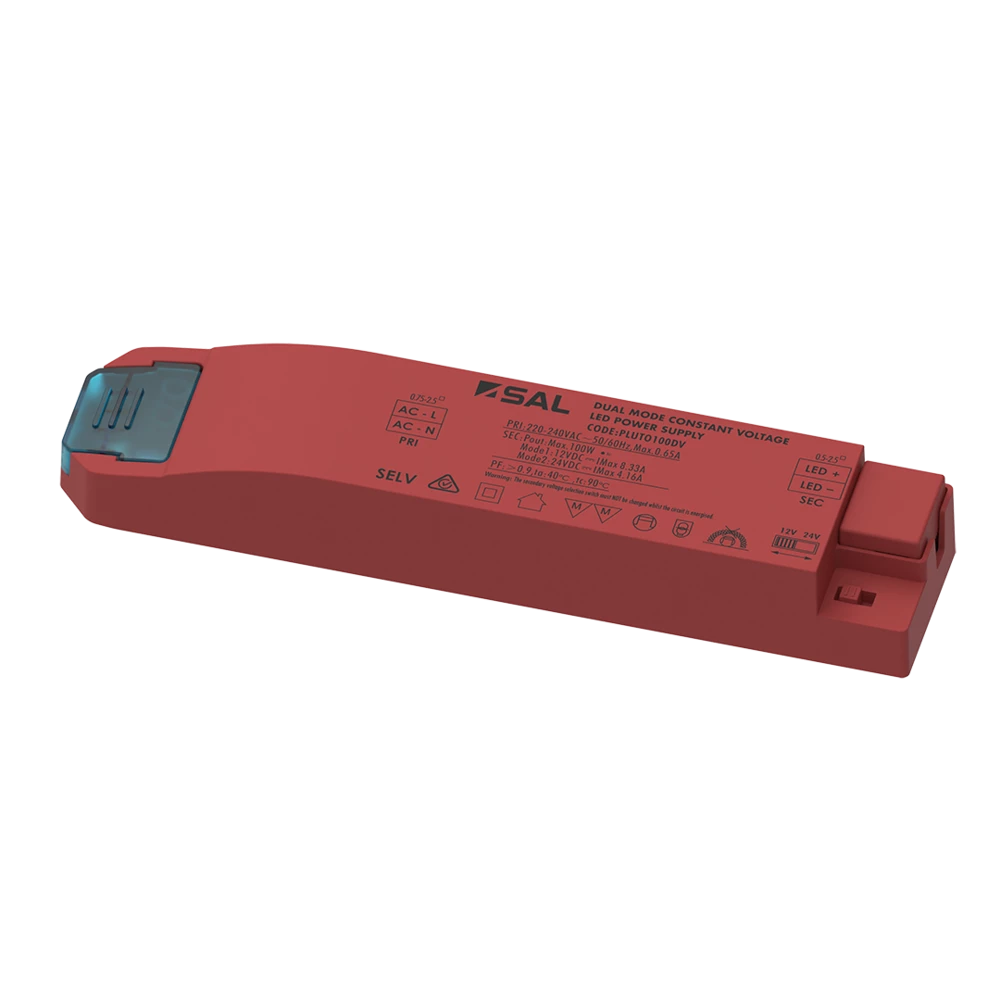

Australian approved dual voltage selection, constant voltage LED power supply
Application
Versatile and compact dual voltage range with captive terminal screws, ideal for low wattage retrofit and maintenance lighting requirements
Design Specifications
- SELV and EMC compliant
-
Safe no load operation, non-dimmable
- Overload and short circuit protection
-
Hard wired termination design
-
100 watt capacity with selectable 12V DC or 24V DC secondary outputs, minimum load 5 watt
-
Electrical class II, Do Not Cover
Performance
- Dimmable - NO
| Model No. | Input Voltage | Frequency | Output Voltage | Power | Power Factor | Dimmable | Dim |
|---|---|---|---|---|---|---|---|
| PLUTO100DV | 240 | 50 | 12-24 | 100 | 0.9 | NO | 215(L) x 47(W) x 30(H) |
