Description
Application
Versatile and compact dual voltage range with captive terminal screws, ideal for low wattage retrofit and maintenance lighting requirements
Design Specifications
- SELV and EMC compliant
- Safe no load operation, non-dimmable
- Overload and short circuit protection
- Hard wired termination design
- 15 watt capacity with selectable 12V DC or 24V DC secondary output, minimum load at 24V - 3 watts, 12V - 3 watts.
- Electrical class II, Do Not Cover
Performance
- Dimmable - NO
If you need accessories compatible with this, please see below :
| Model No. | Description | Input Voltage | Output Voltage | Power | Power Factor | Dim |
|---|---|---|---|---|---|---|

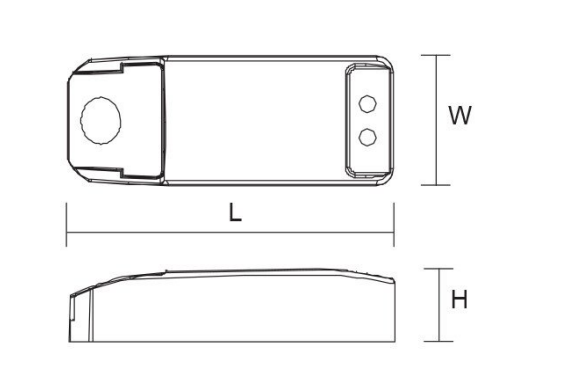

| PLUTO 15DV | LED DRIVER 12/24V 15W C- VOLTAGE | 240 | 12-24 | 15 | 0.8 | 99(L) x 39(W) x 23(H) |
DOWNLOADS
