Description
Application
Perfect for windows, doors and gates.
Design Specifications
-

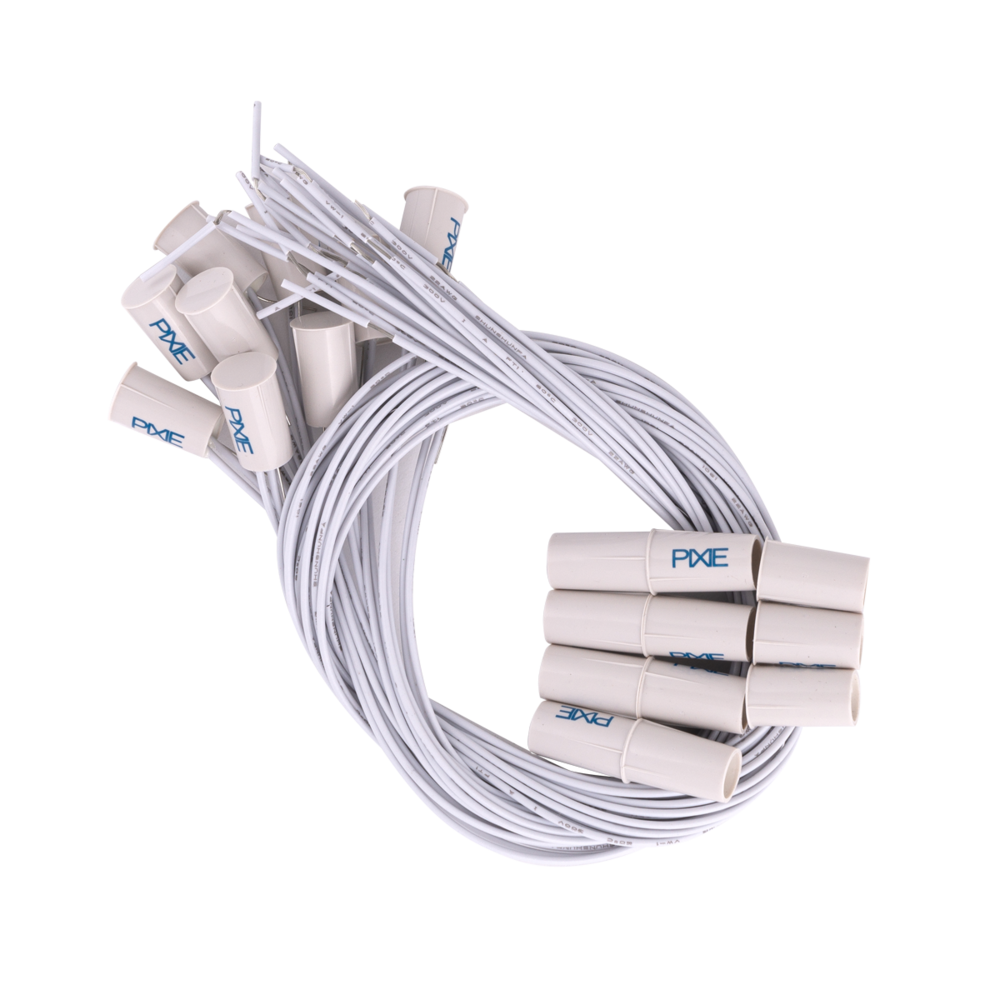

CSF21BTP - concealed contact sensor suitable for timber doors and windows, flush mounted, Ø 11mm, depth 16.8mm - wire length 500mm
-

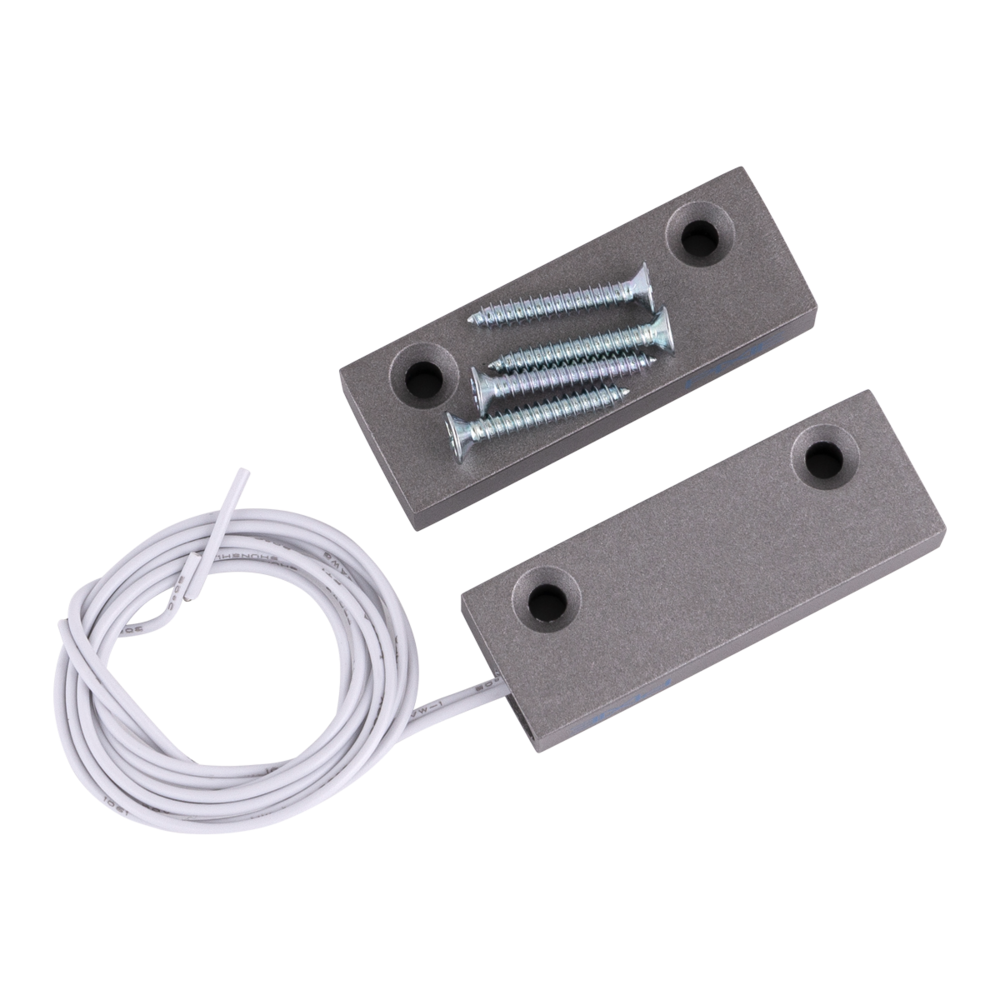

CSM41BTP - suitable for metal doors and gates, surface mounted- wire length 500mm
-
CSR41BTP - suitable for roller doors, surface mounted - wire length 650mm
-
For wiring diagrams, please refer to PC206GD/R/BTAM or PC100CS/R/BTAM
| Model No. | Body Colour |
|---|---|
| CSF21BTP | WHITE |
| CSM41BTP | GREY |
| CSR41BTP | GREY |
