Description
Application

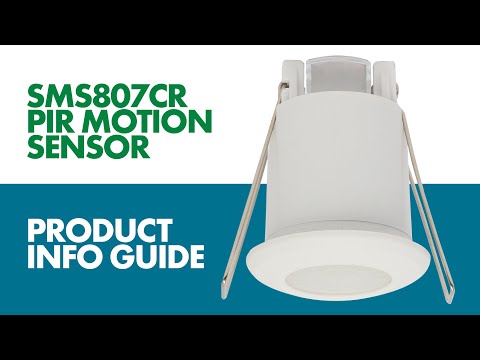

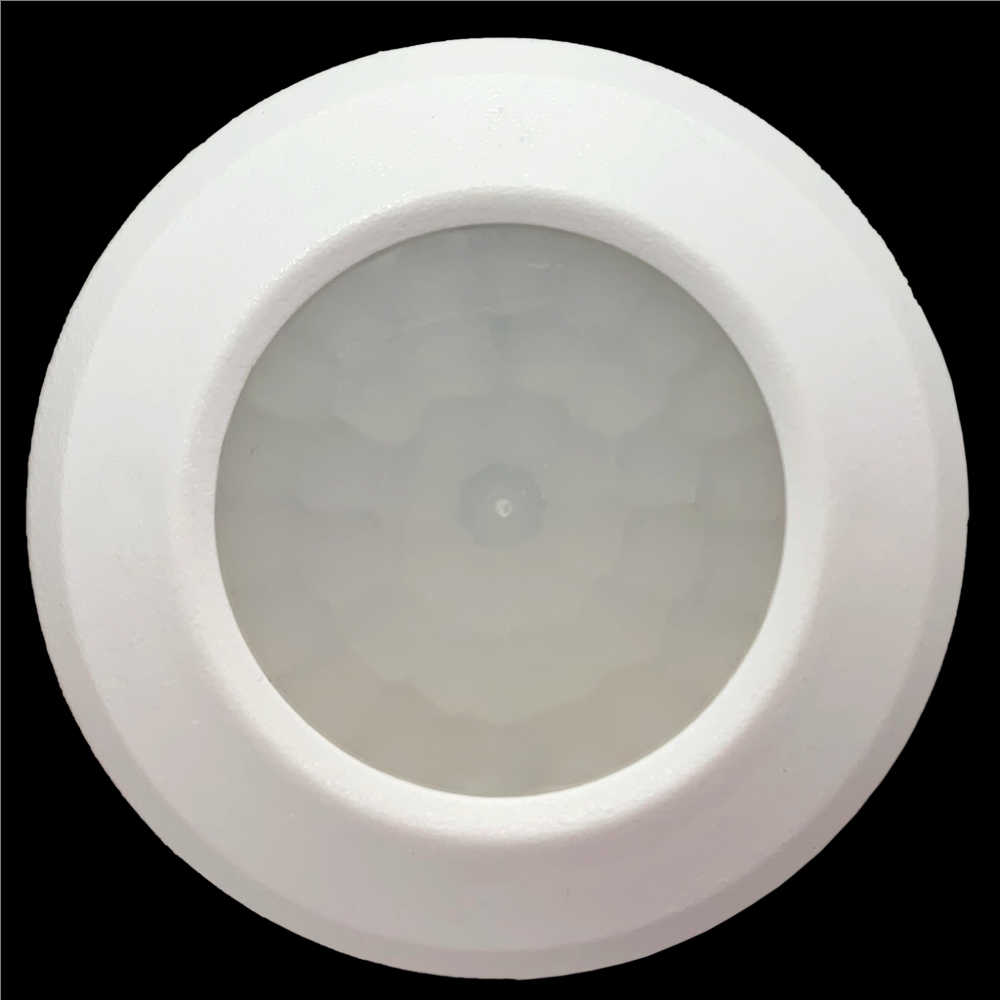

Versatile residential and commercial sensor
Design Specifications
-
Switched power 800W incandescent, 400W fluorescent, 300W LED
-
Standby power <0.5W
-
Detection distances: Max. Ø 6.0m at 4.0hm. Max. Ø 4.0m at 2.2hm.
-
Detection angle 360° , Adjustable time delay Min, 10sec / Max. 7min
-
Adjustable light (lux) sensitivity <10 - 2000 lux
-
Manual override function, low profile white design, Ø 40mm cut-out
Performance
- Dimmable - NO
- In Built Sensor - YES
- Sensor Type - PIR
| Model No. | Input Voltage | Power | Body Colour | Cut Out |
|---|---|---|---|---|
| SMS807CR | 240 | 800 | WHITE | 40 |
