Description
Application

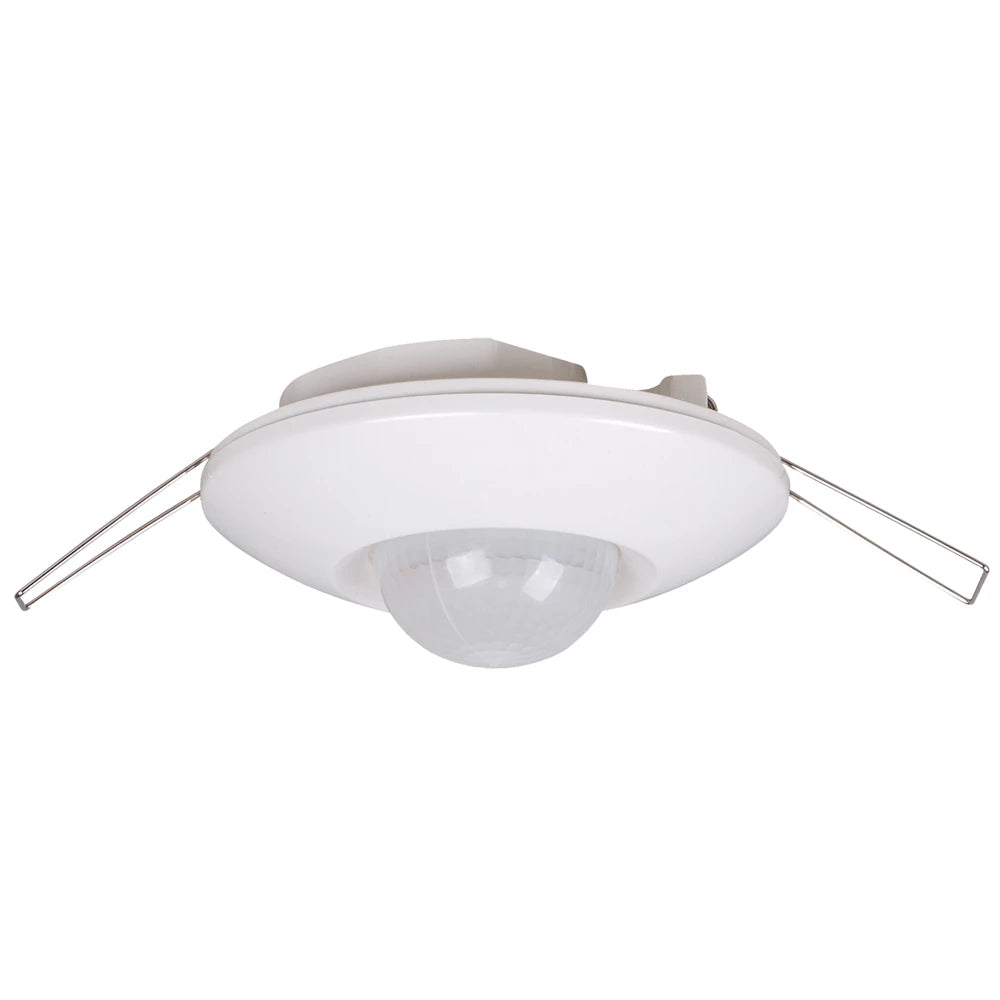

Recessed or surface mount infrared interior sensor
Design Specifications
- Switched power 2000W incandescent, 600W, Fluorescent, 300W LED
- Standby power <1W
-

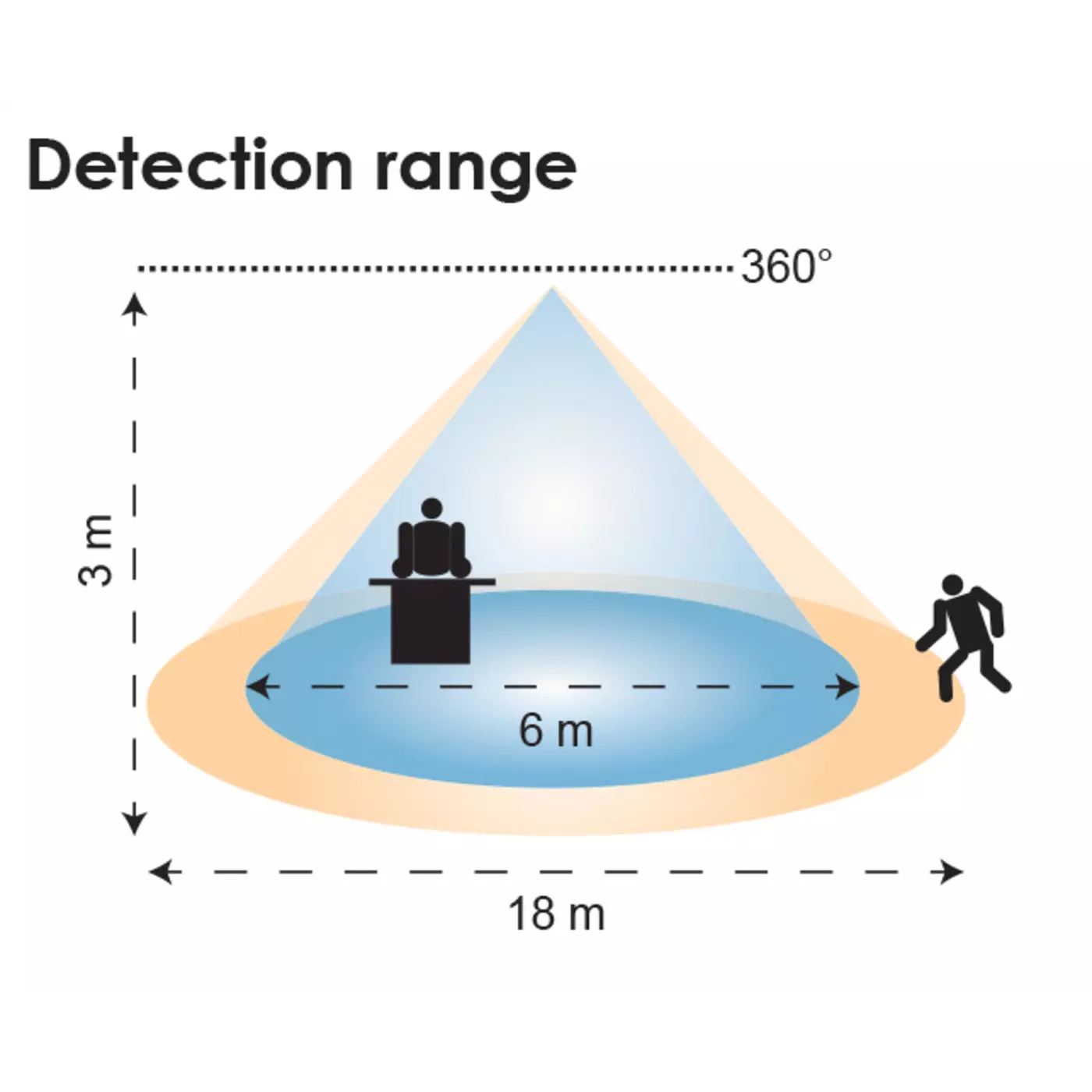

Detection distance Max. Ø 18 m at 3hm, detection angle 360°
-
Duration Time / 10sec / 40min adjustable
-
Dawn to dusk adjustable, mounting height Max. 3m
-
Manual override mode: When the lamp(s) is switched on, turn the lamp(s) off/on twice within 3 seconds, the sensor will go to an 8 hour override mode, during which the lamp(s) will stay on. The sensor will then return to normal detection mode During override mode, turn the lamp(s) on/off twice within 3 seconds or turn off the lamp(s) for over 10 seconds, the sensor will return to normal detection mode.
Performance
- Dimmable - NO
- In Built Sensor - YES
- Sensor Type - PIR
| Model No. | Input Voltage | Body Colour |
|---|---|---|
| SMS803CD | 240 | WHITE |
